Draper 70563 Expert Hydraulic Bench Press 15 Tonne

Product image 1
Product image 2

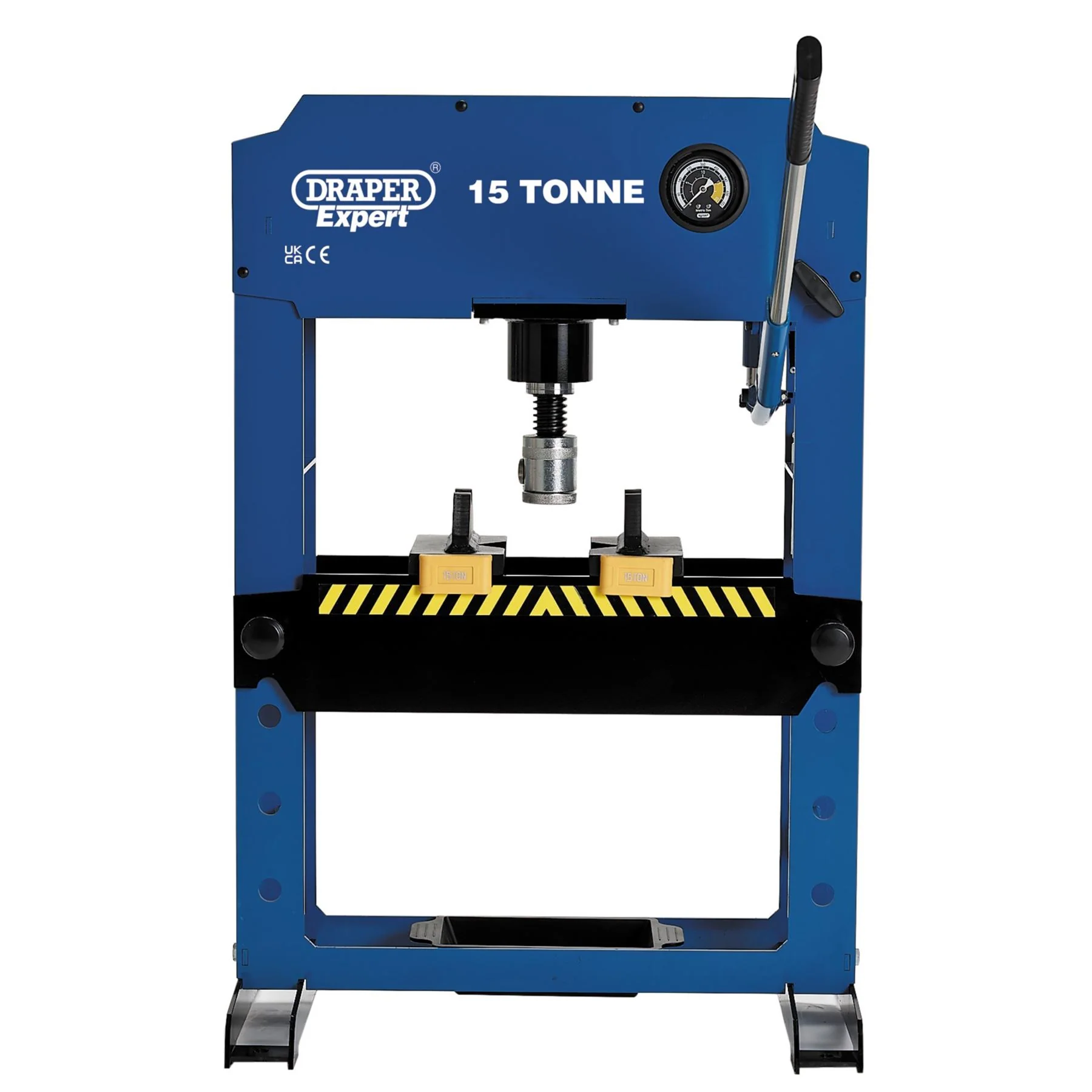

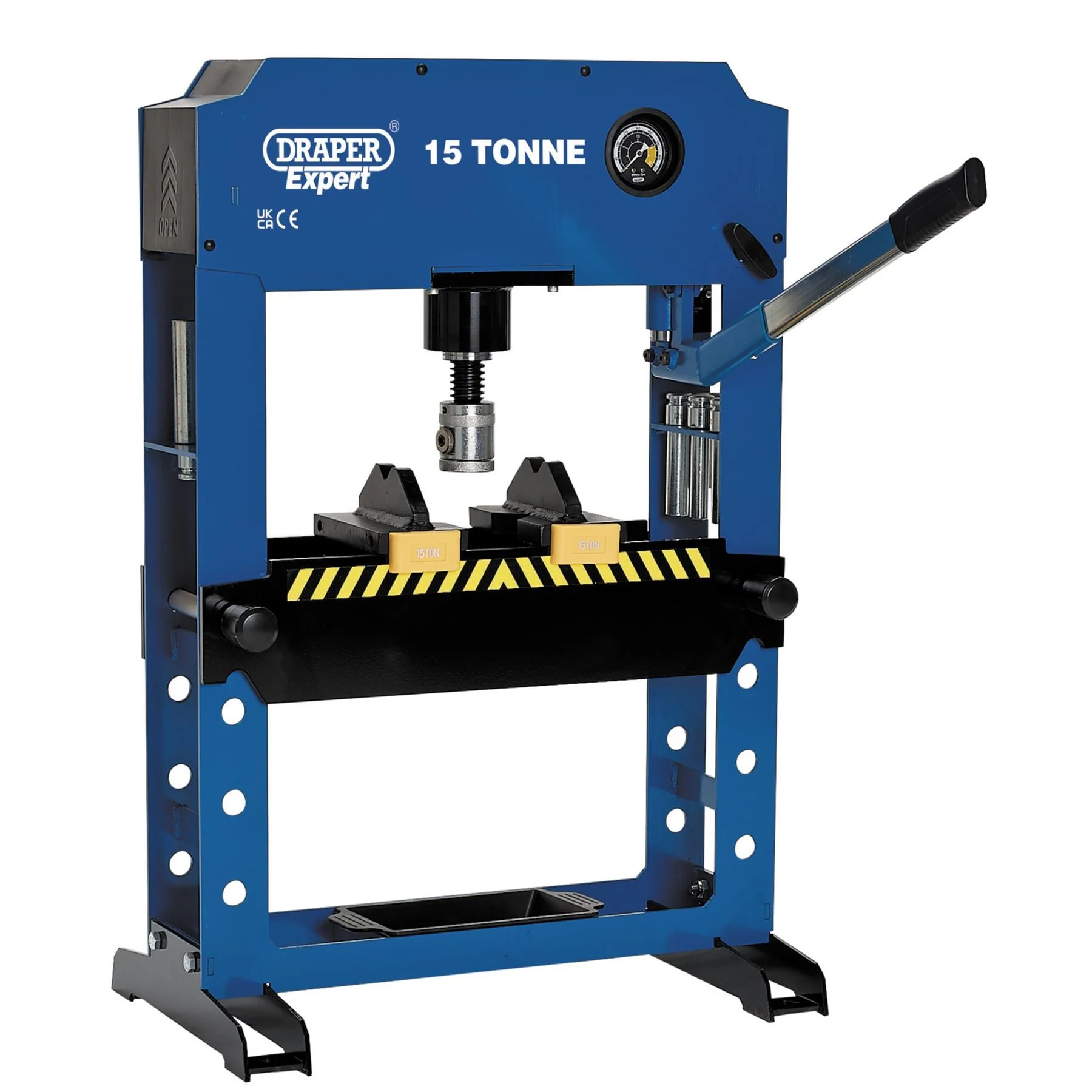

Draper 70563 Expert Hydraulic Bench Press 15 Tonne

Robust hydraulic 15 tonne bench press with hand pump for manual hydraulic operation. There are eight adjustable table heights with a working range between 45-385mm. Robot welding one-piece frame for increased stability. There are dustproof covers fitted to the top of the frame to prevent dust entering the pump and ram, which helps to increase their service life. There is a removable parts tray located in the frame base. Supplied with eight press pins ranging from 2-15 tonnes and two flat v-shaped pressing blocks.
  • Gauge diameter 60mm
  • Ram stroke 170mm
  • Ram diameter 50mm
  • Table height 45-385mm
  • Press pin capacity 2-15 Tonnes
  • Overall height 855mm
  • Frame dimensions (H) 810 x (W) 440 x (D) 134mm
  • Weight (net) 56kg
Manufacturer’s Warranty: 12 months
$1,104.88
Draper 70563 Expert Hydraulic Bench Press 15 Tonne
$1,104.88

Product Information

Shipping & Returns

Description

Robust hydraulic 15 tonne bench press with hand pump for manual hydraulic operation. There are eight adjustable table heights with a working range between 45-385mm. Robot welding one-piece frame for increased stability. There are dustproof covers fitted to the top of the frame to prevent dust entering the pump and ram, which helps to increase their service life. There is a removable parts tray located in the frame base. Supplied with eight press pins ranging from 2-15 tonnes and two flat v-shaped pressing blocks.
  • Gauge diameter 60mm
  • Ram stroke 170mm
  • Ram diameter 50mm
  • Table height 45-385mm
  • Press pin capacity 2-15 Tonnes
  • Overall height 855mm
  • Frame dimensions (H) 810 x (W) 440 x (D) 134mm
  • Weight (net) 56kg
Manufacturer’s Warranty: 12 months
