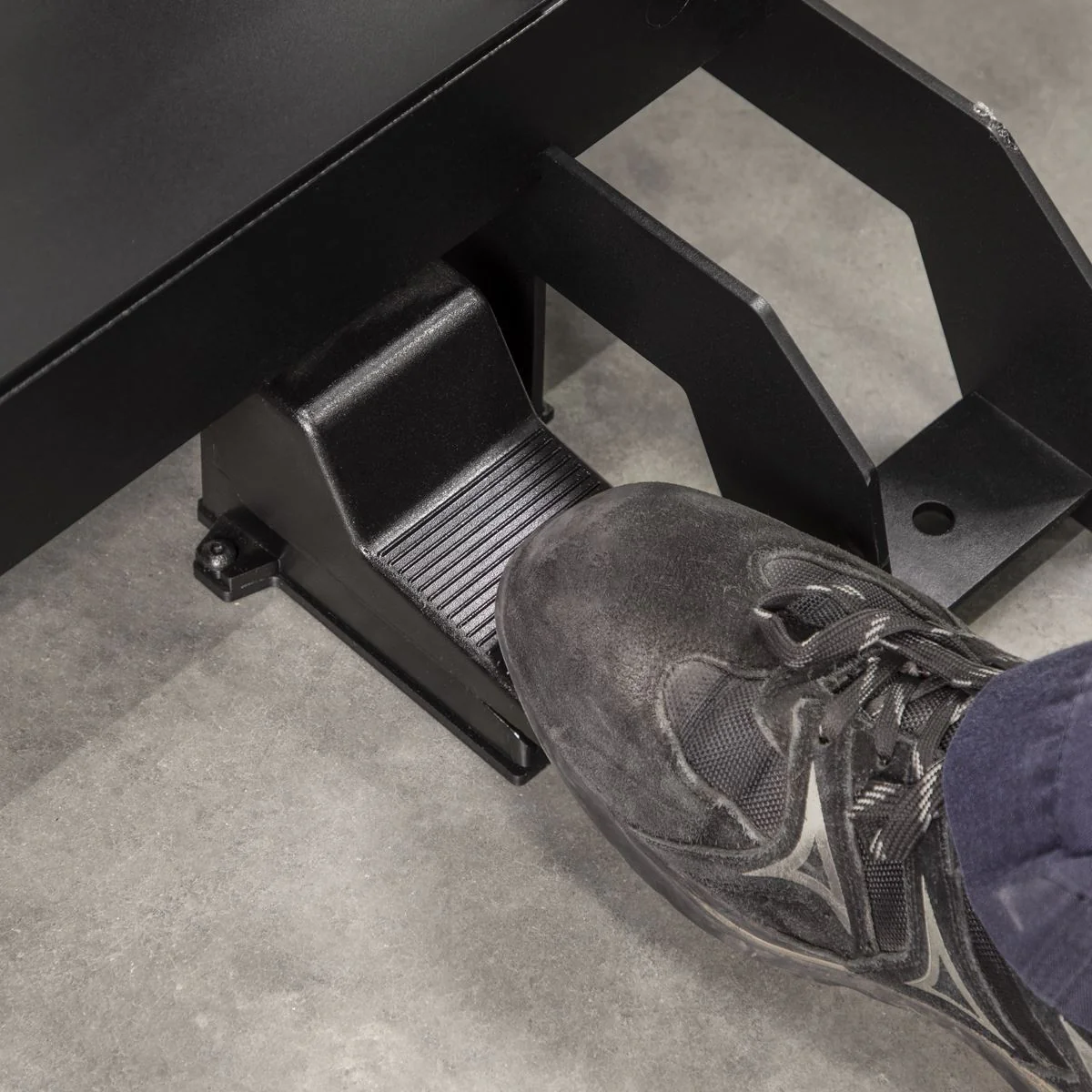

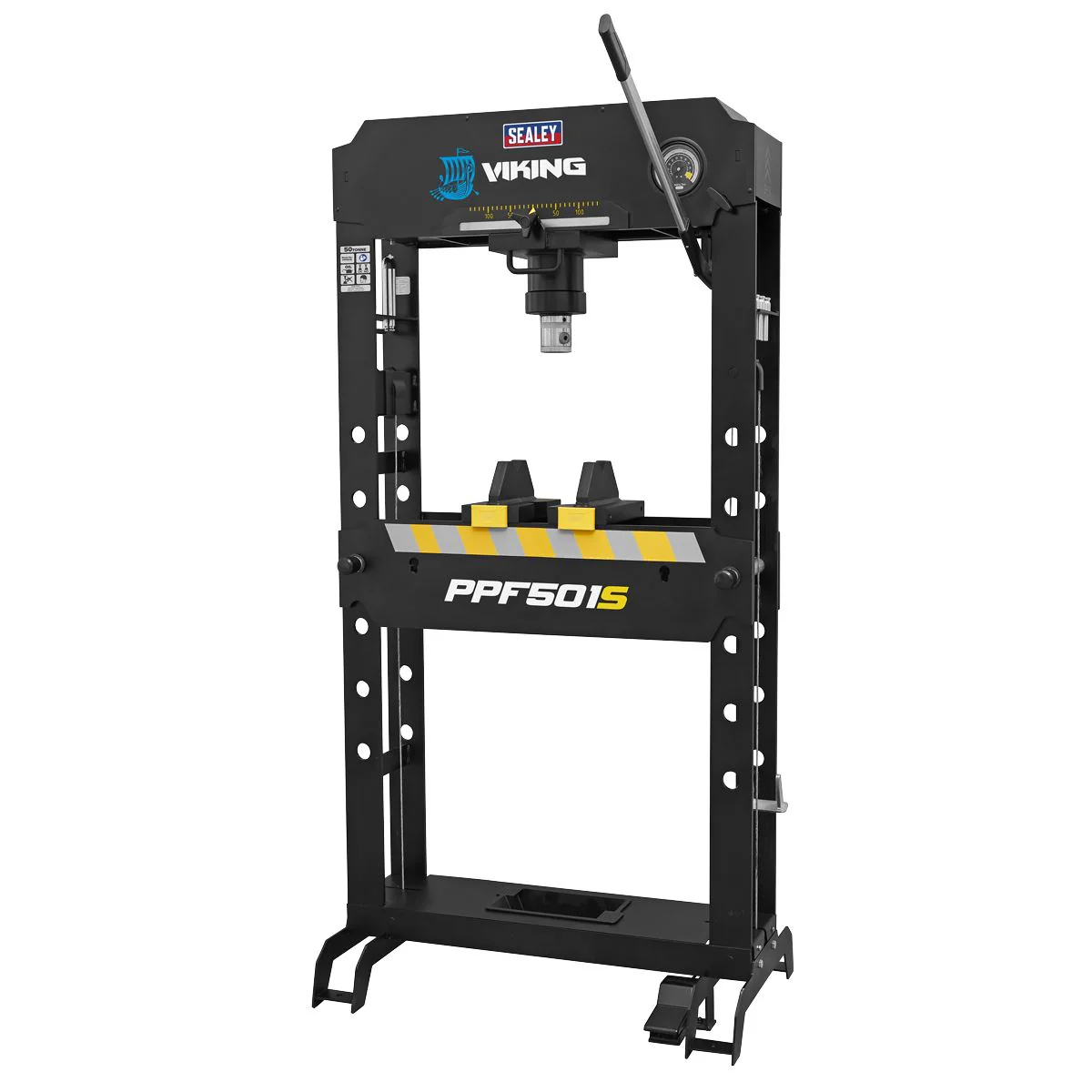

Sealey PPF501S Viking Floor Type Air/Hydraulic Press with Sliding Ram & Foot Pedal 50 Tonne

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8
Product image 9
Product image 10
Product image 11
Product image 12
Product image 13
Product image 14
Product image 15
Product image 16
Product image 17
Product image 18
Product image 19

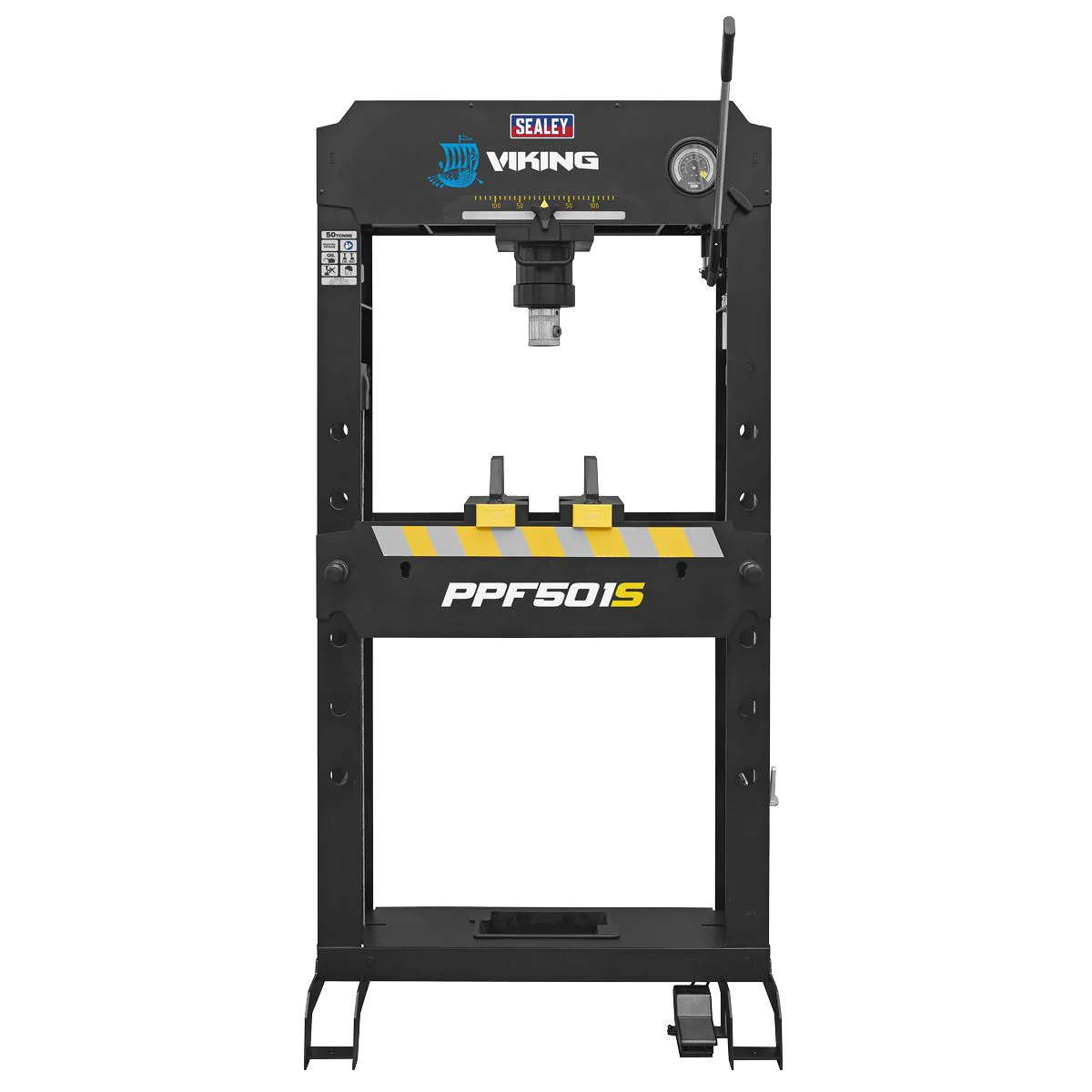

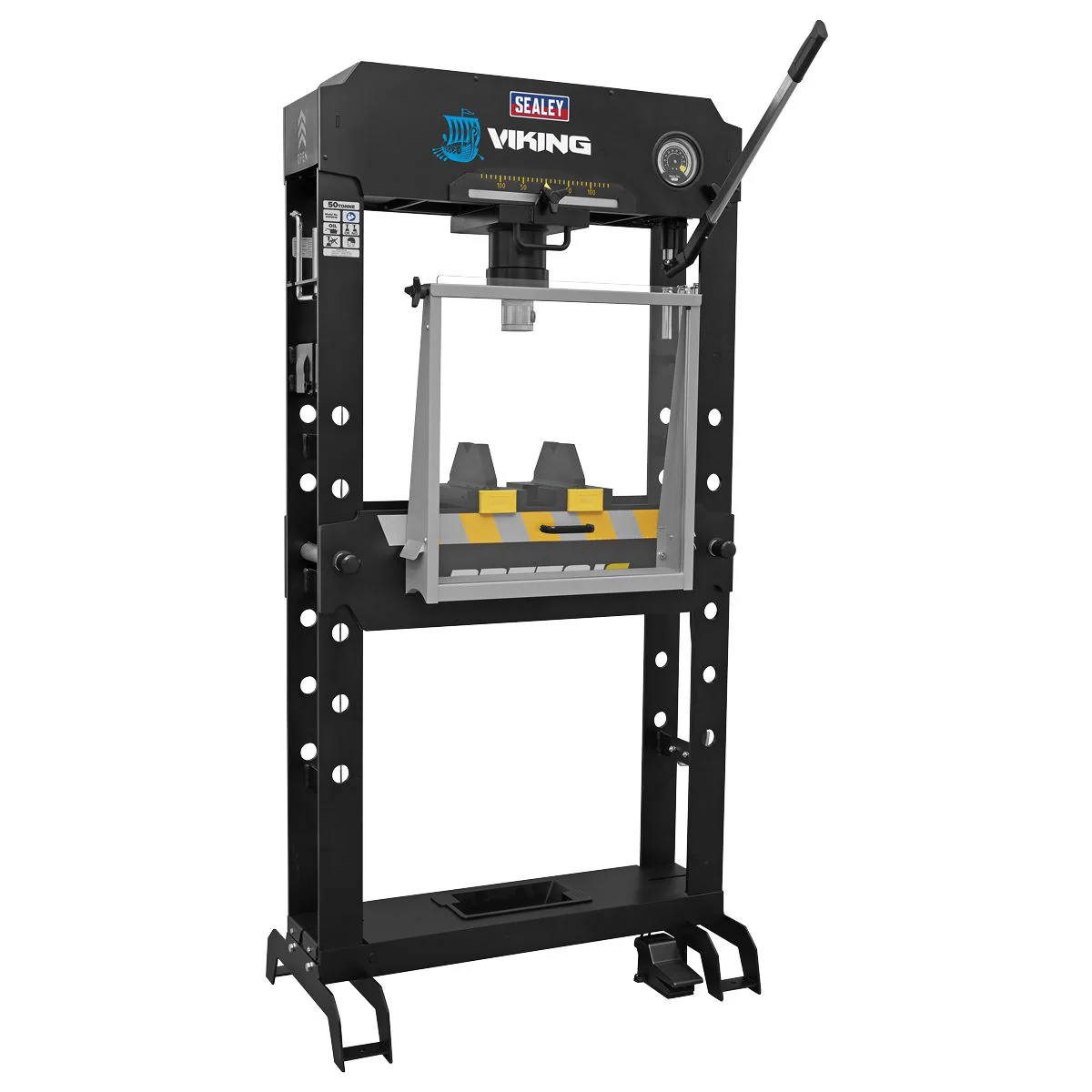

Sealey PPF501S Viking Floor Type Air/Hydraulic Press with Sliding Ram & Foot Pedal 50 Tonne

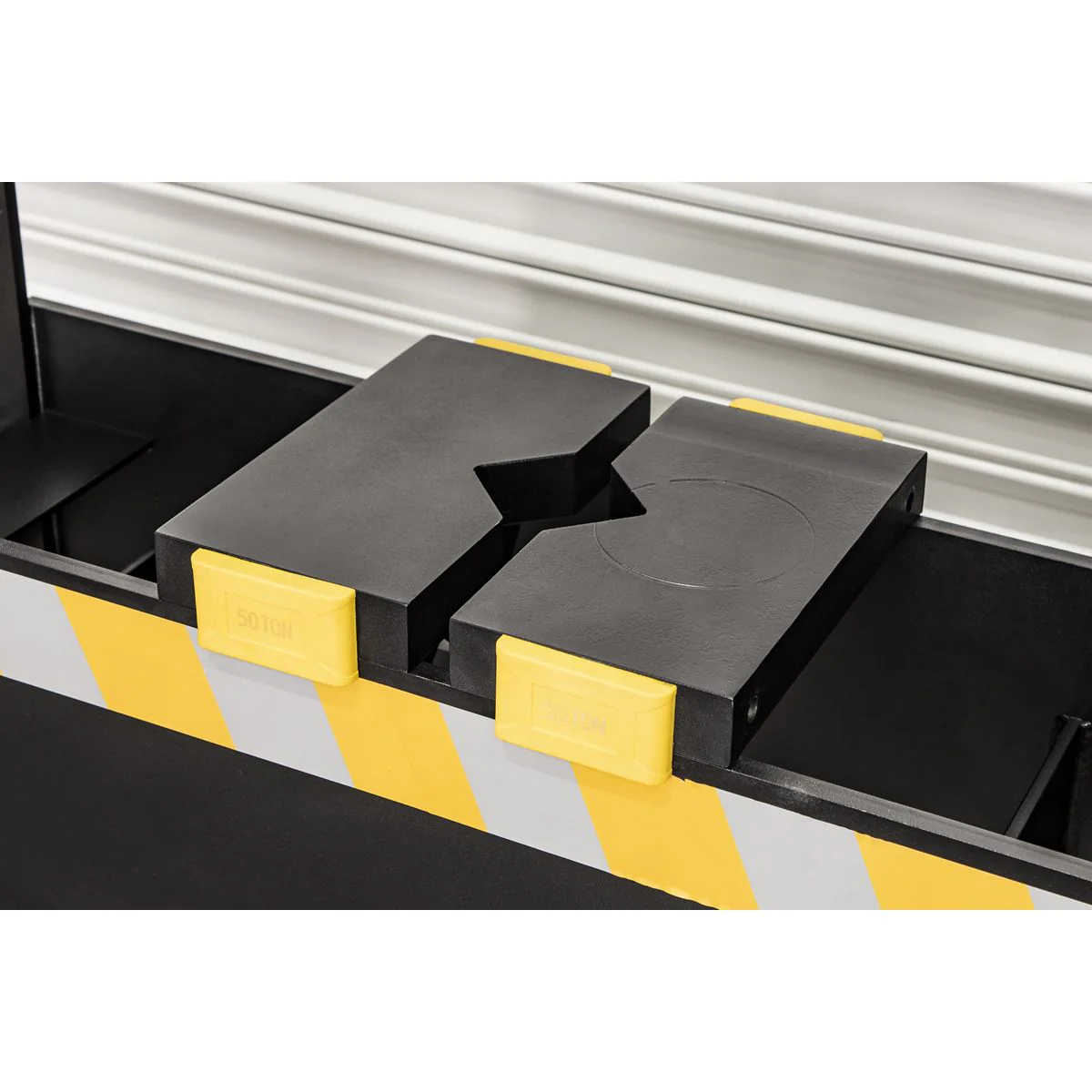

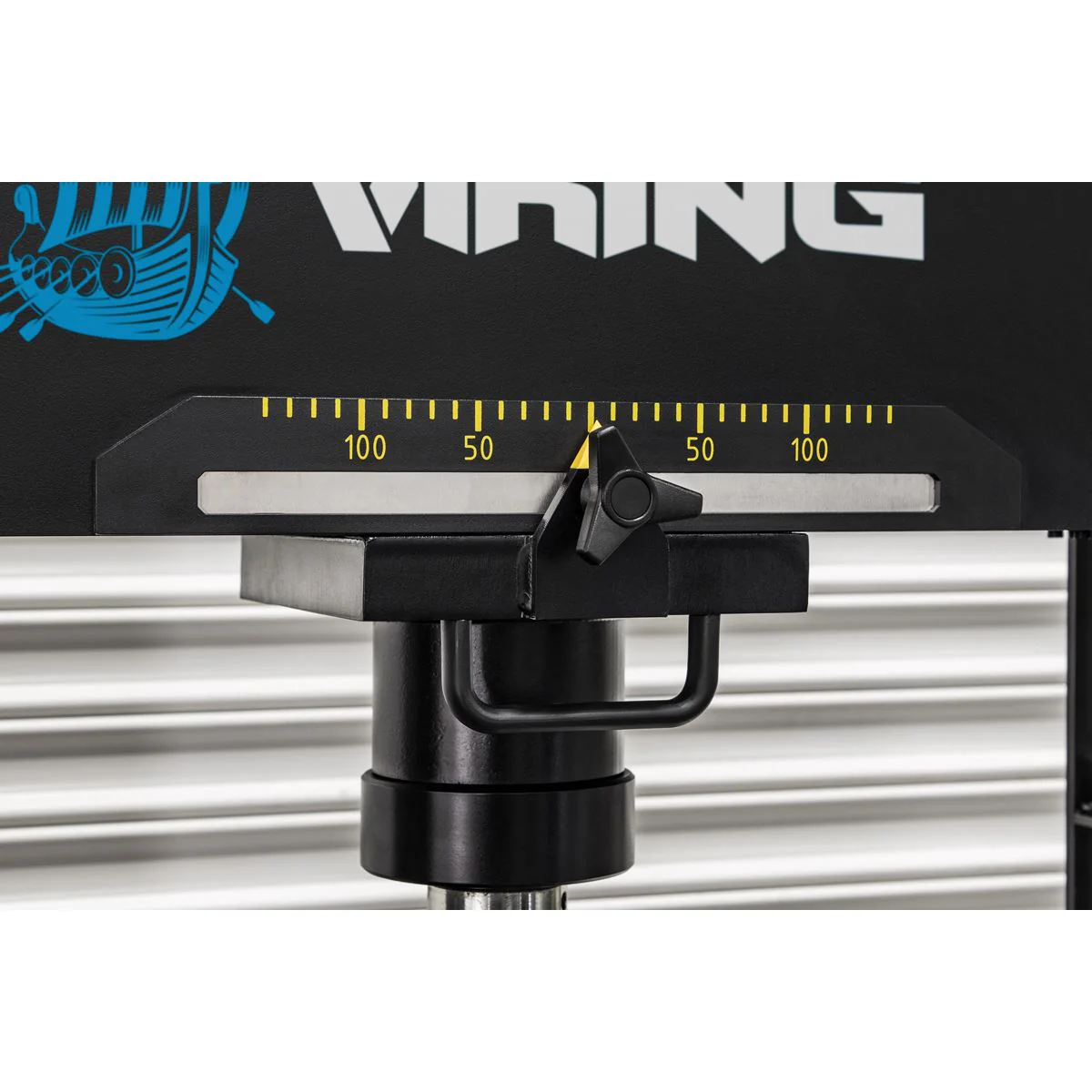

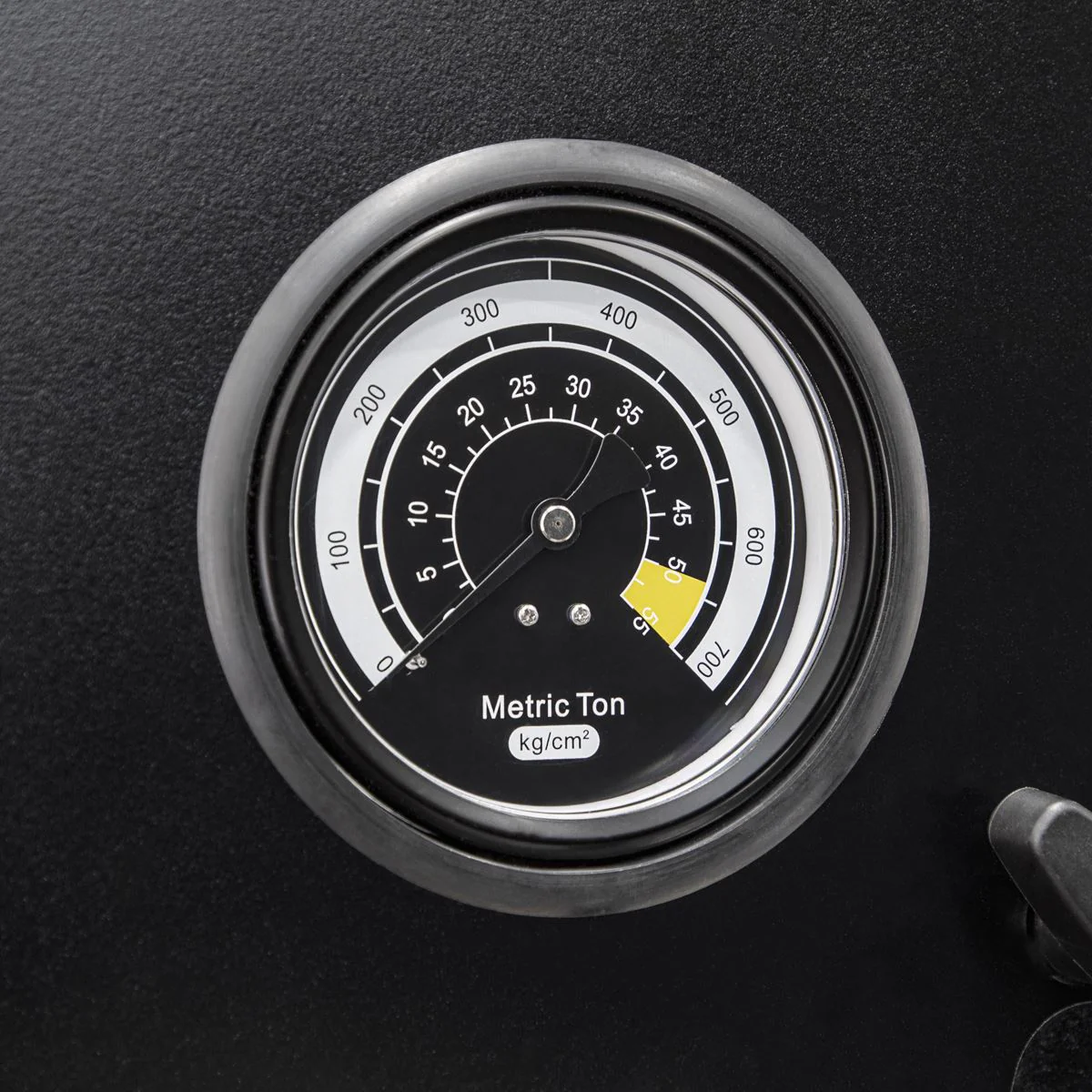

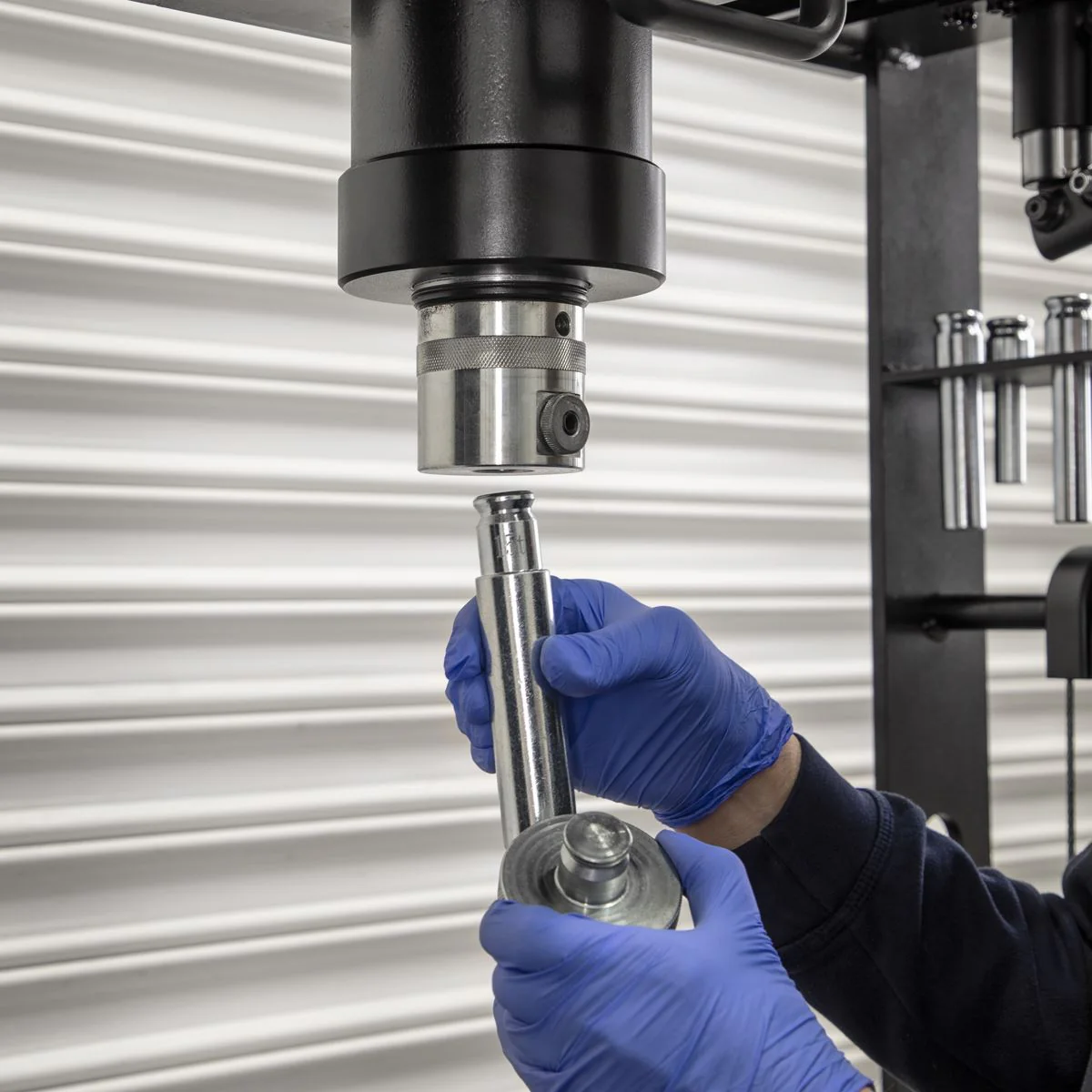

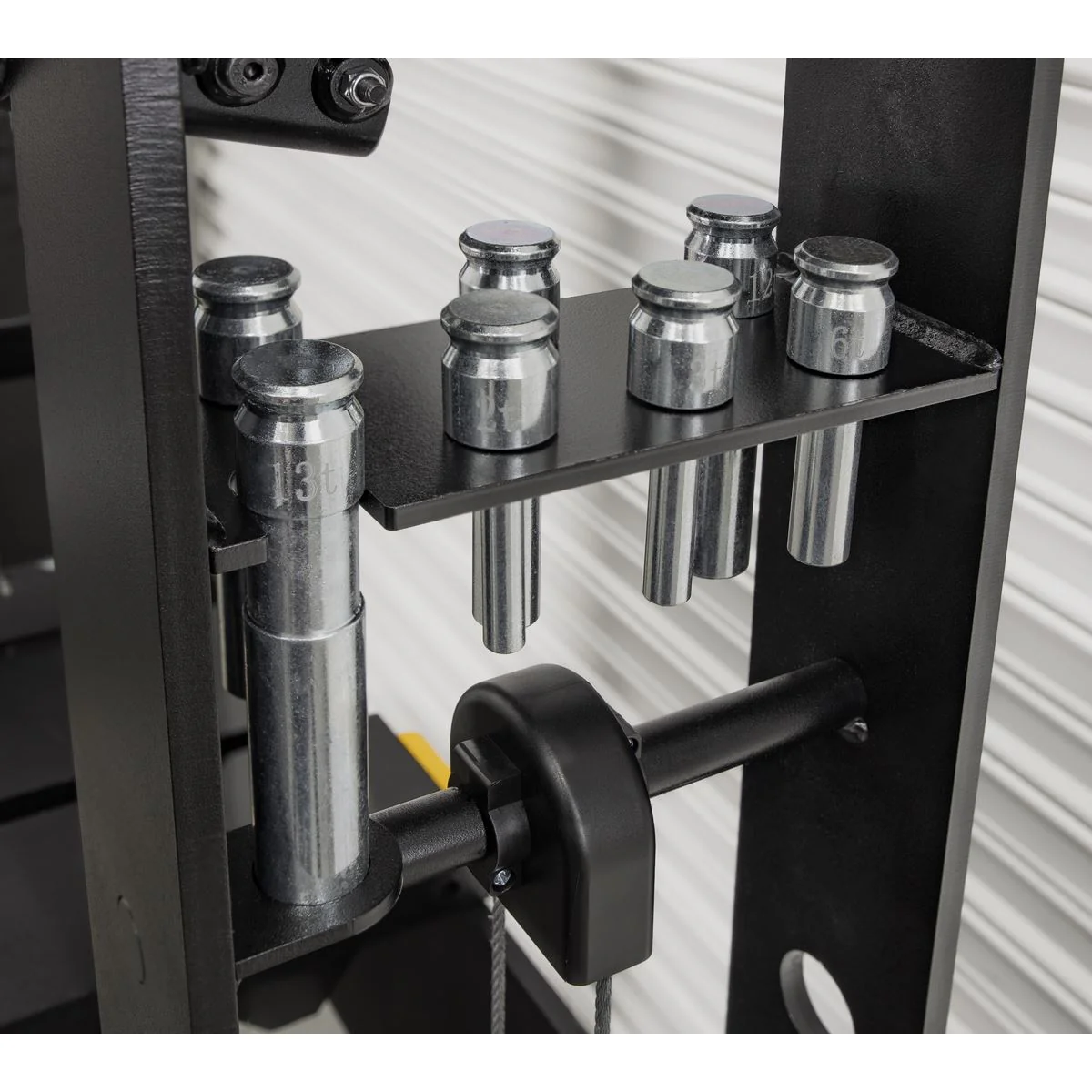

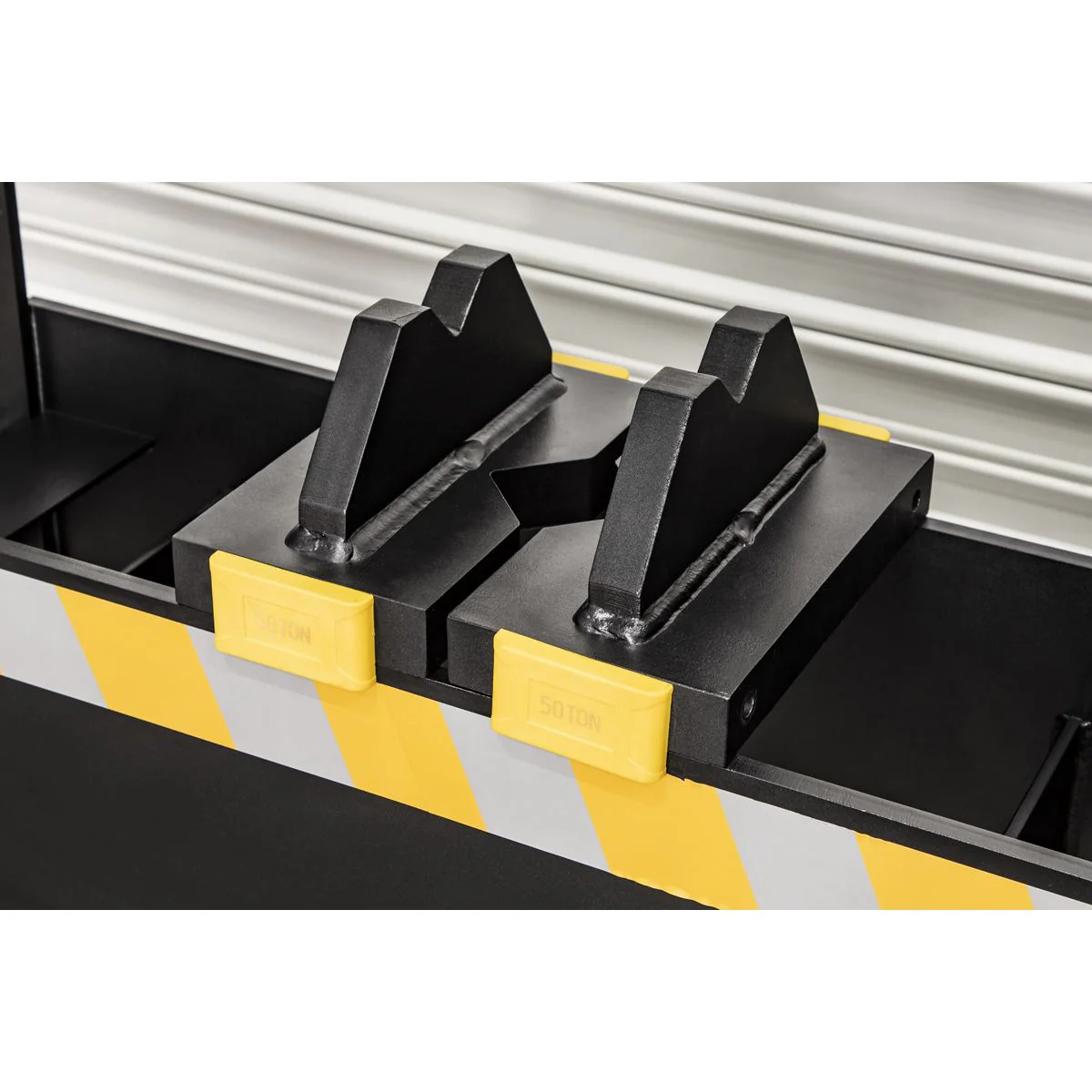

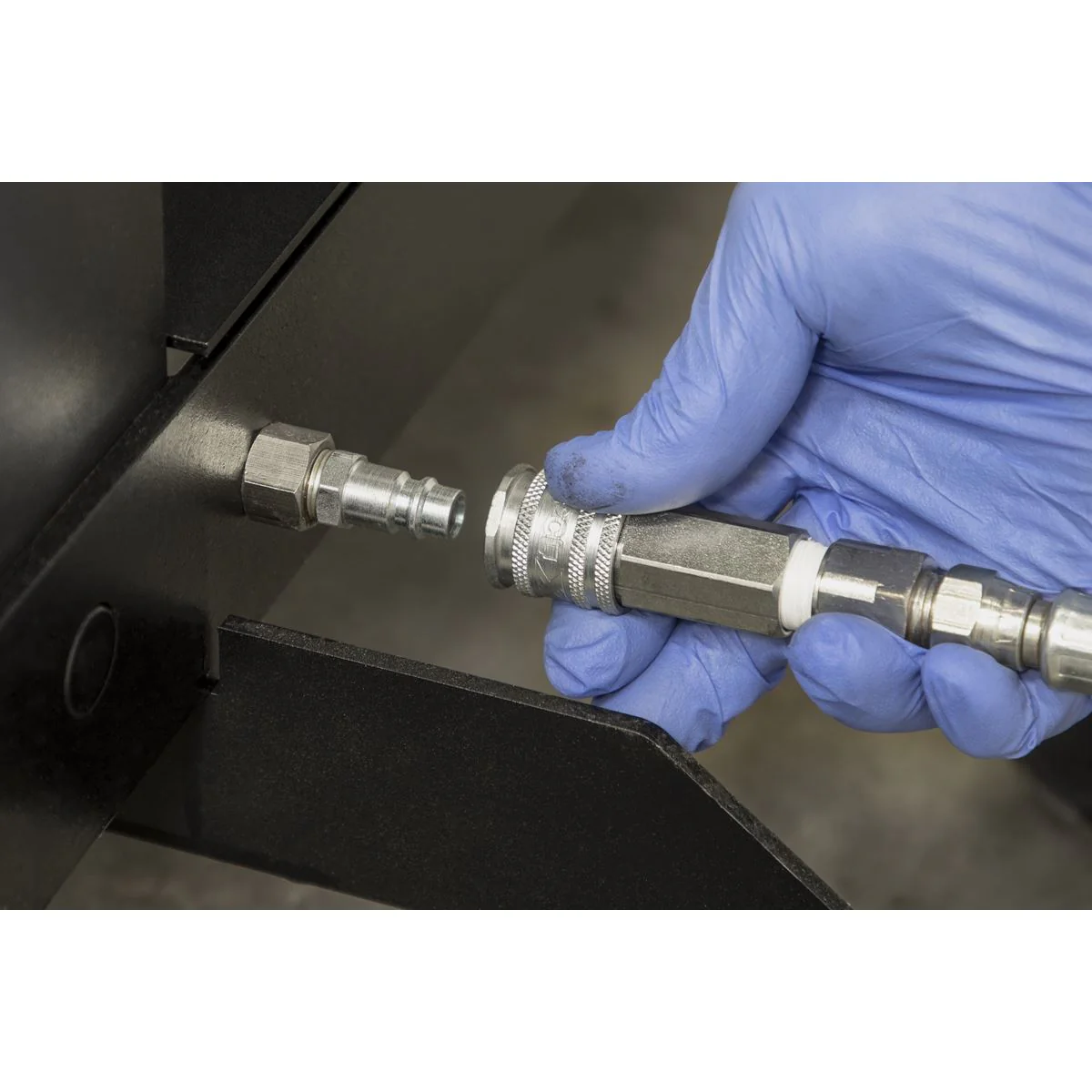

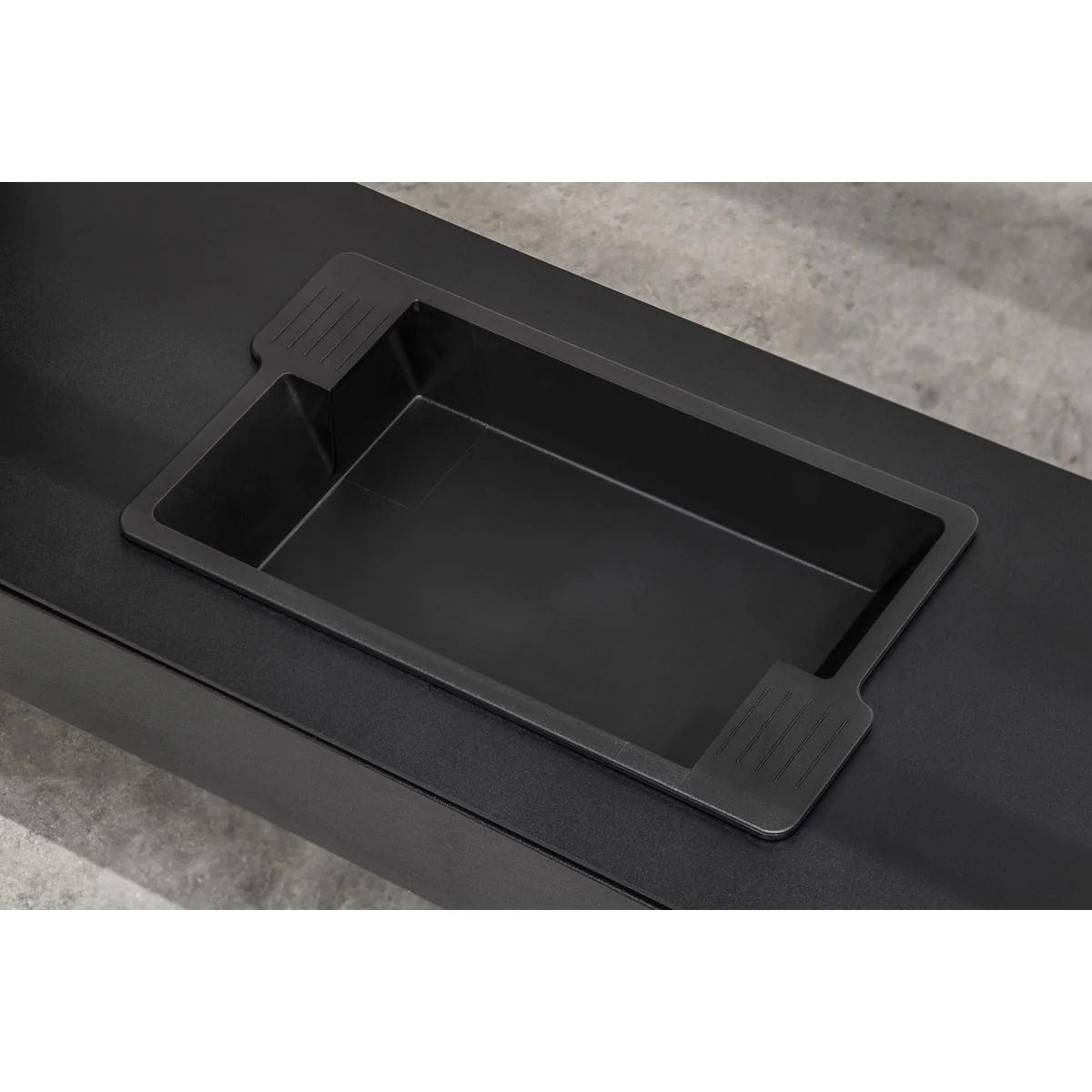

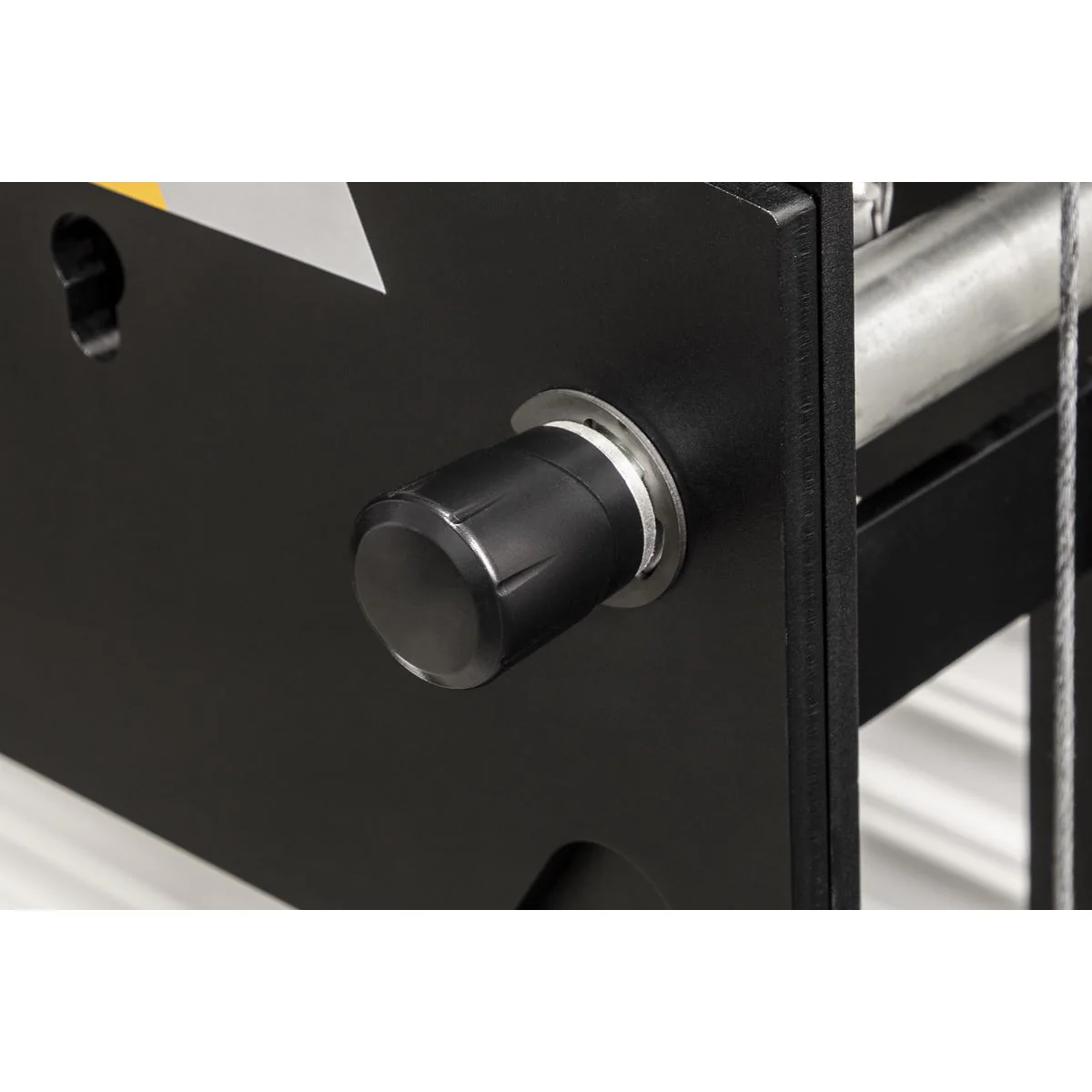

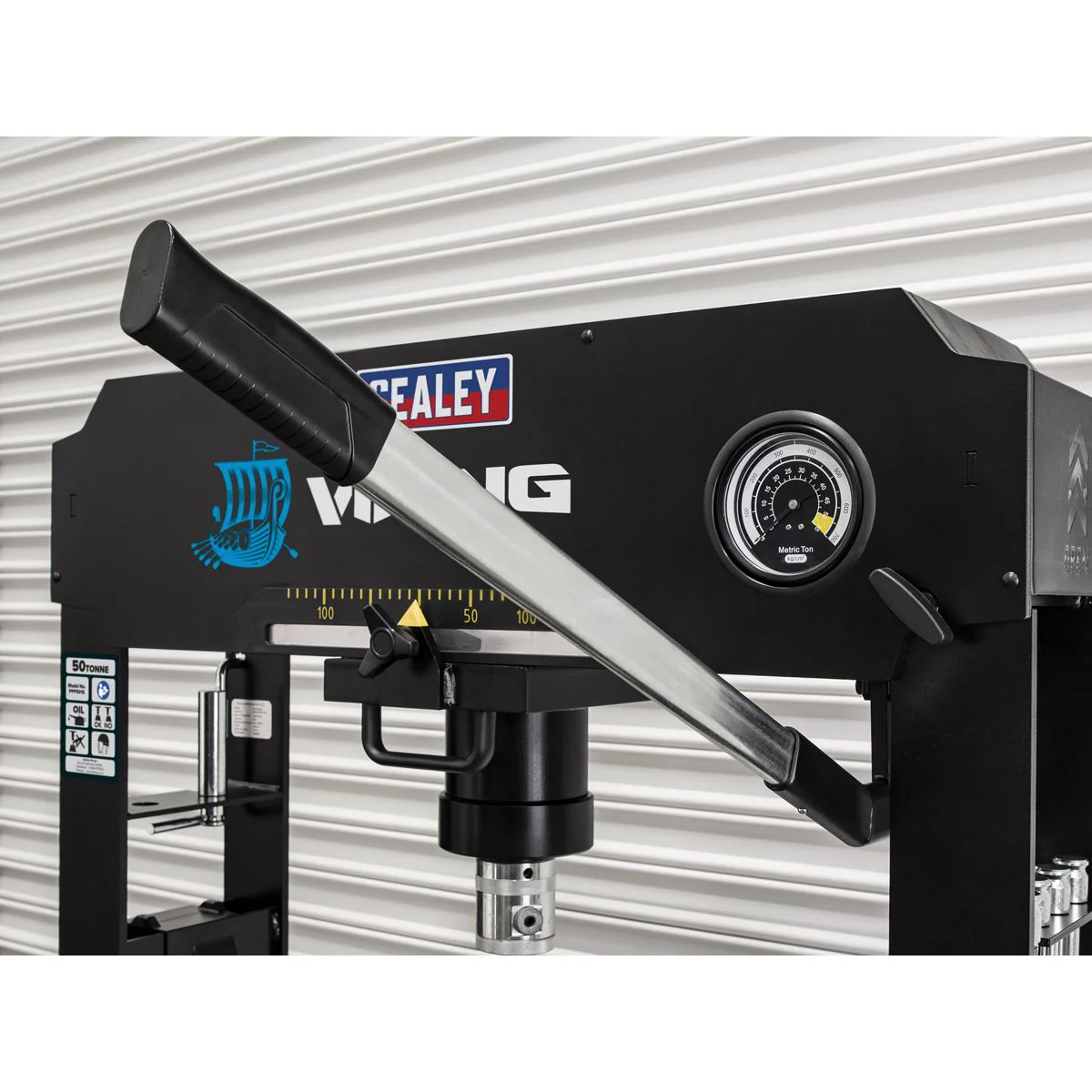

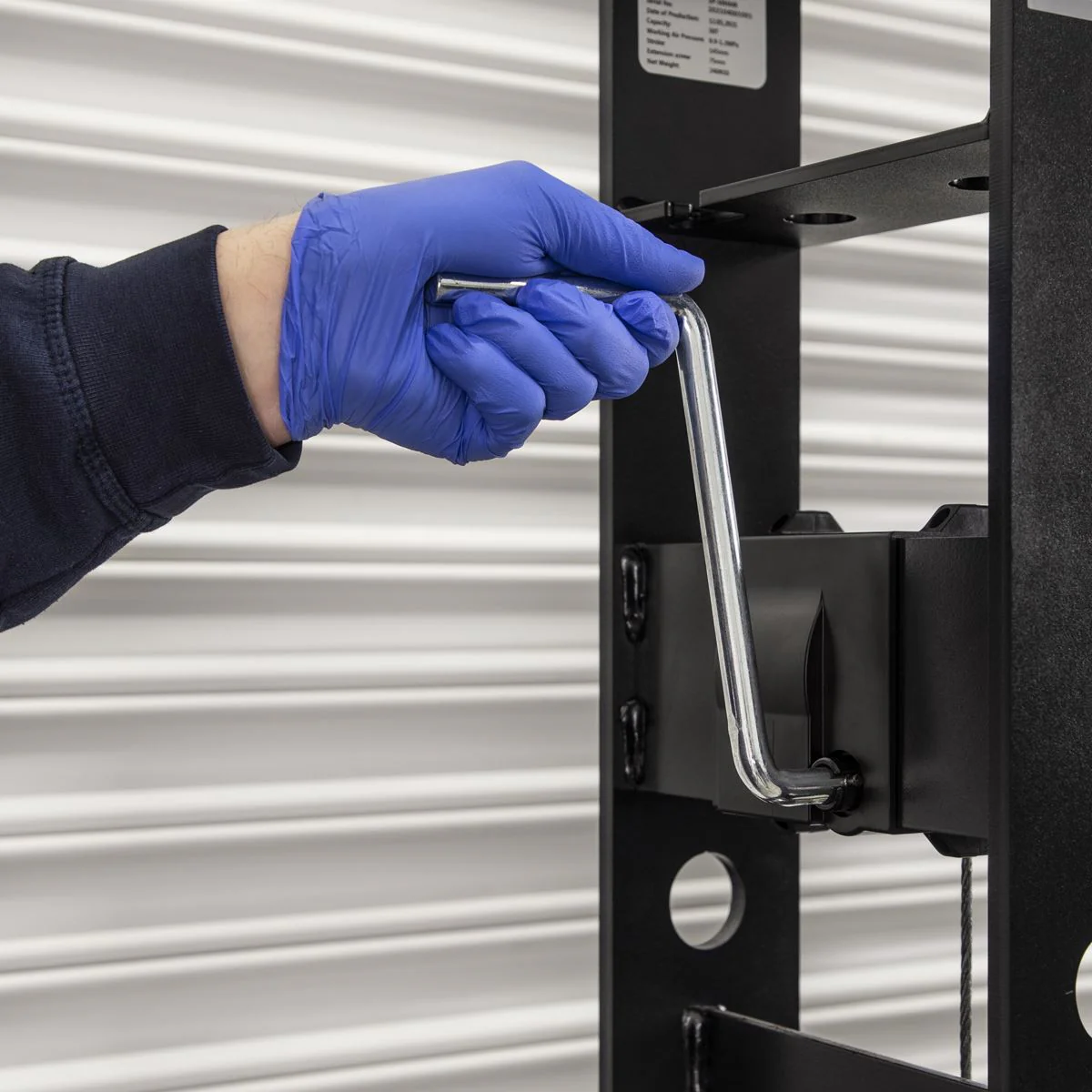

Heavy-duty steel frame construction with integral air motor powering hydraulic pump unit. Screw adjustable ram and adjustable work area with removable tray. Sliding hydraulic ram assembly giving 280mm of lateral travel for off-centre pressing applications. Frame head fitted with ram pressure gauge. Winch assisted press table adjustment. Storage for press pins included in frame. Supplied with press pins, flat pressing plate/V-blocks. This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
  • Air Consumption: 4.5cfm
  • Bench or Floor Mounting: Floor
  • Brand: Viking
  • Capacity: 50 Tonne
  • Gauge Included: Yes
  • Lateral Ram Travel: 280mm

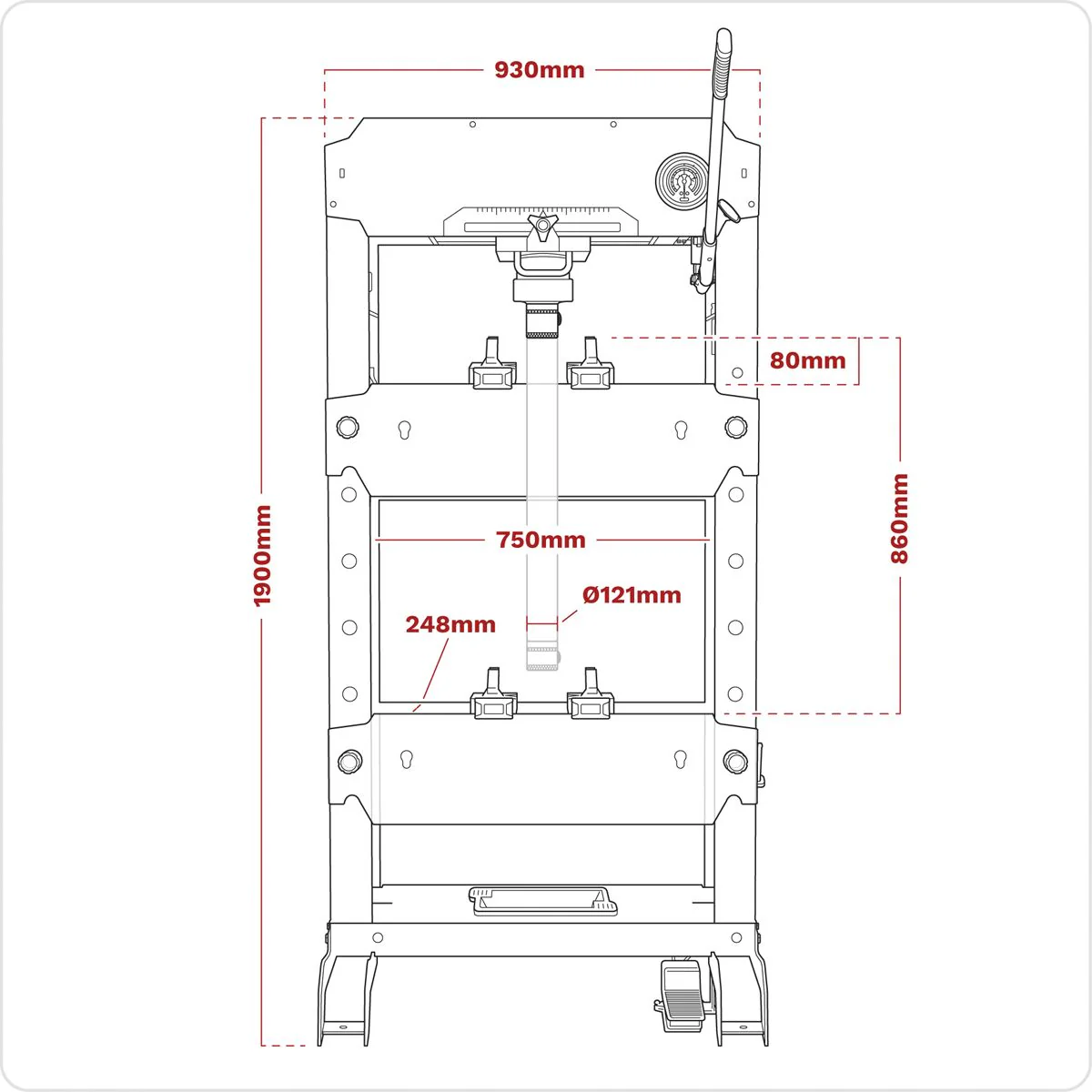

  • Maximum Height - Ram to Table: 780mm
  • Minimum Height - Ram to Table: 80mm
  • Nett Weight: 249.2kg
  • Operating Table Width: 750mm
  • Overall Height: 1900mm
  • Ram Diameter: Ø123.6mm
  • Ram Stroke: 220mm
  • Screw Extension: 75mm
  • Table Aperture: 224mm
  • Type: Floor
  • Working Table Depth: 248mm
  • Working Table Width: 930mm
  • Working Table Width: 930mm
Manufacturer’s Warranty: 5 years
$4,590.12
