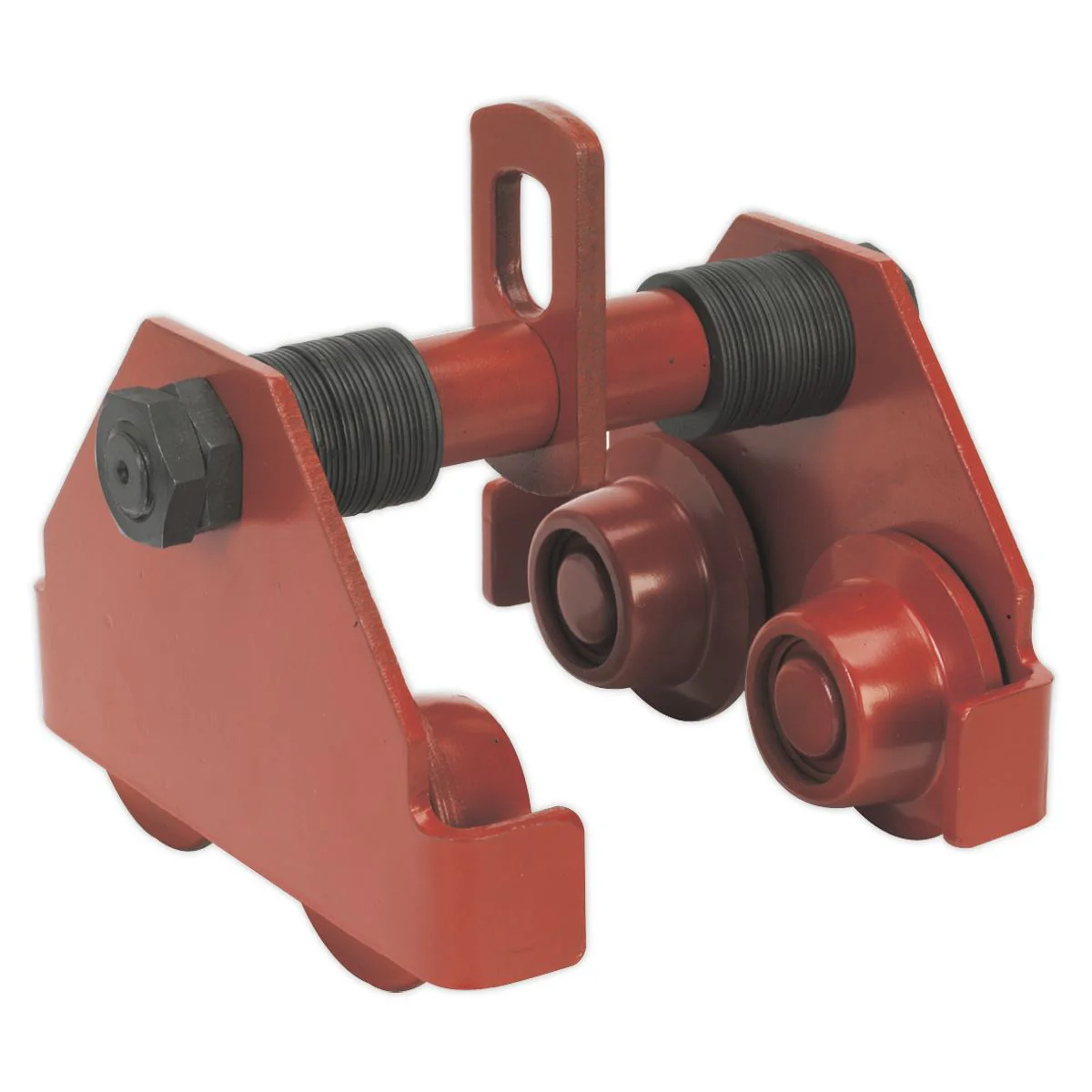

Sealey PT500 Plain Trolley 0.5 Tonne

Product image 1

Sealey PT500 Plain Trolley 0.5 Tonne

Suitable for use with our lever hoists or chain blocks. Designed for mounting onto an I-beam or RSJ to allow load to be manoeuvred sideways. Incorporates wheel guards to prevent contact with other trolleys mounted on same load bearer.
  • Brand: Sealey
  • Nett Weight: 7kg
  • Capacity: 500kg
  • Test Load: 750kg
  • Track Width Adjustable Range: 64-140mm
  • Minimum Curve Radius: 800mm
  • A: 212mm
  • B: 115mm
  • C: 115mm
  • D: 90mm
  • E: 115mm
  • Weight: 7kg
  • Minimum Standard I-Beam Dimensions (D x W x Web): 125 x 75 x 5.5mm
  • Maximum Distance Between Spans: 3000mm
  • Maximum Standard I-Beam Dimensions (D x W x Web): 250 x 125 x 7.5mm
  • Maximum Distance Between Spans: 8000mm
  • Refer to catalogue for diagram.:
Manufacturer’s Warranty: 1 Year
