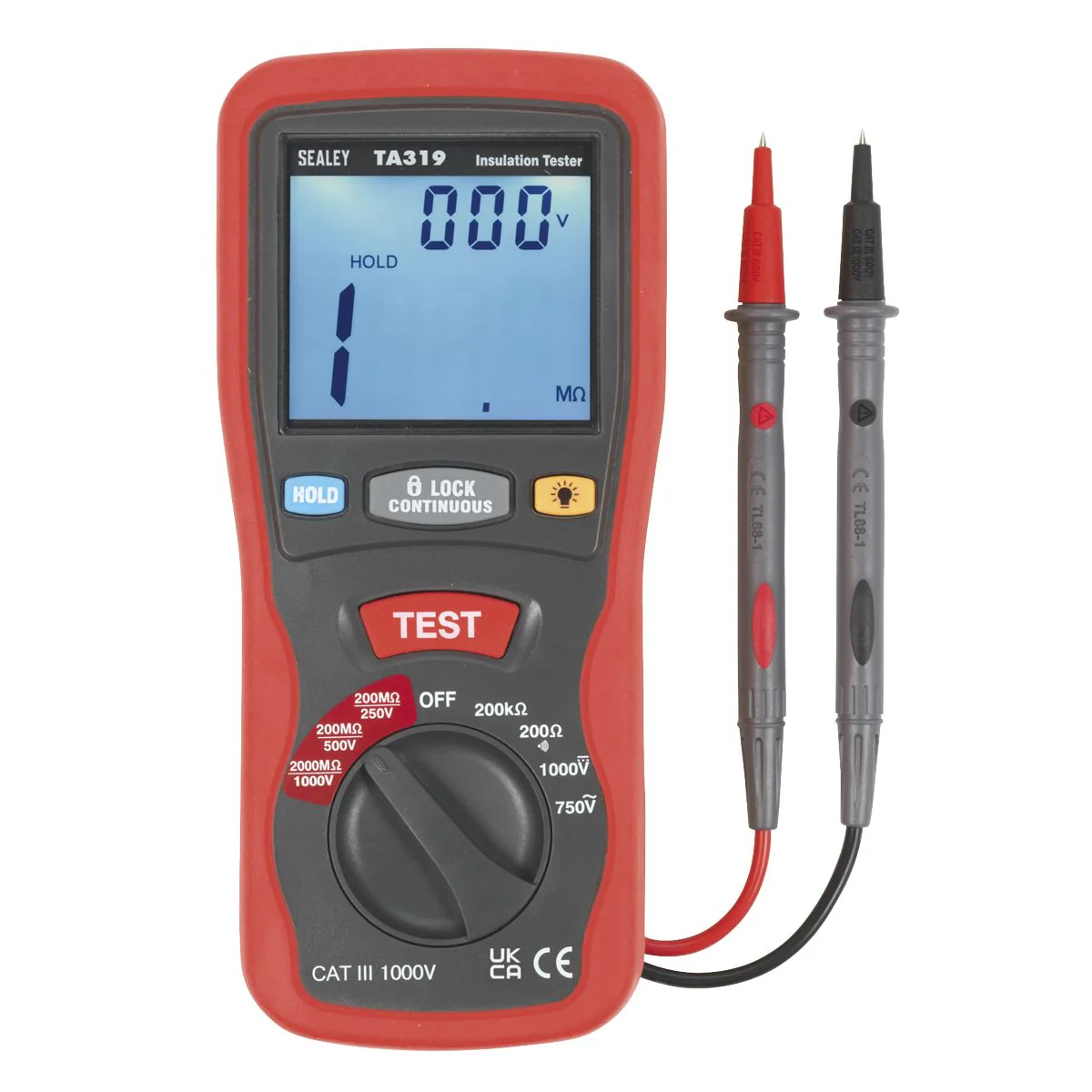

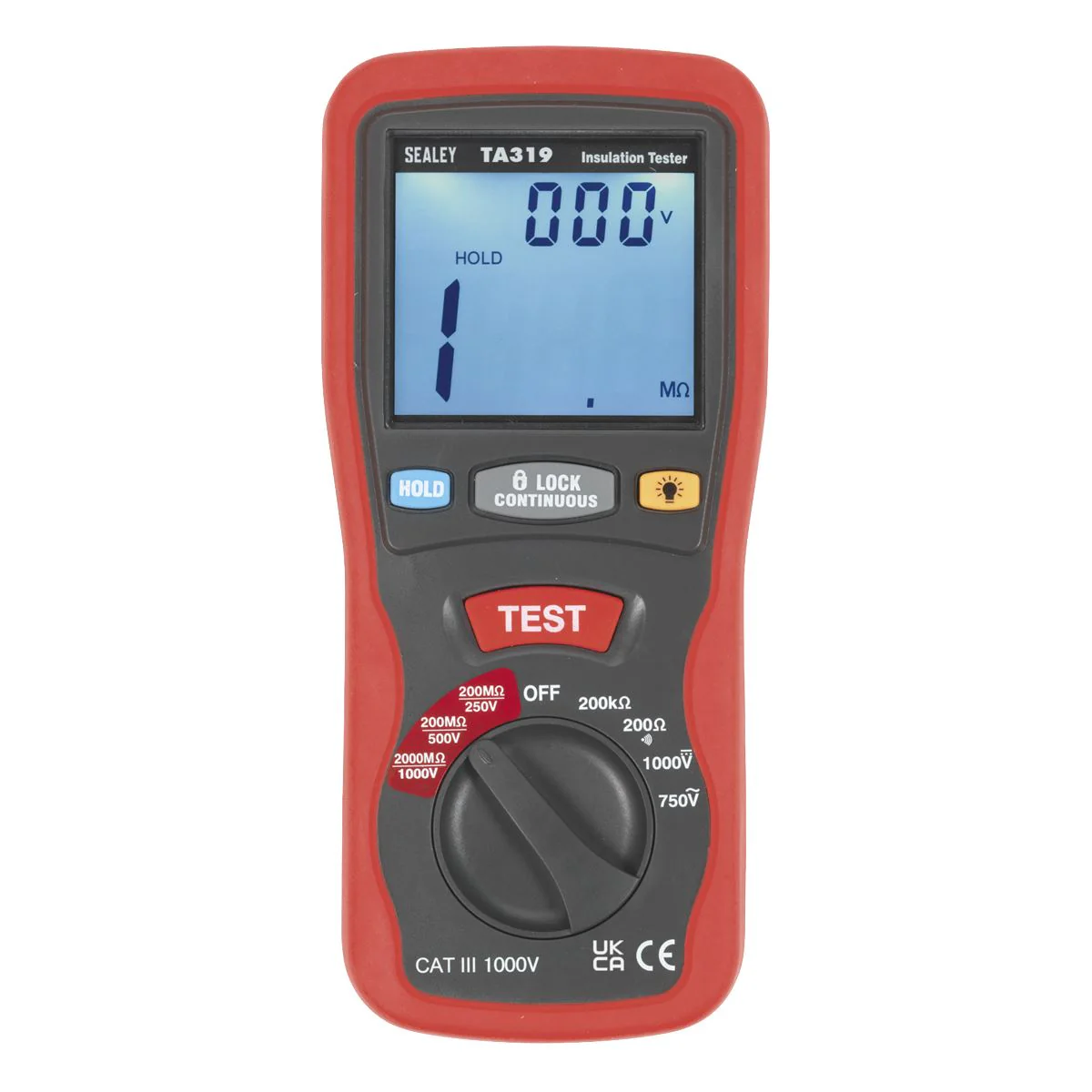

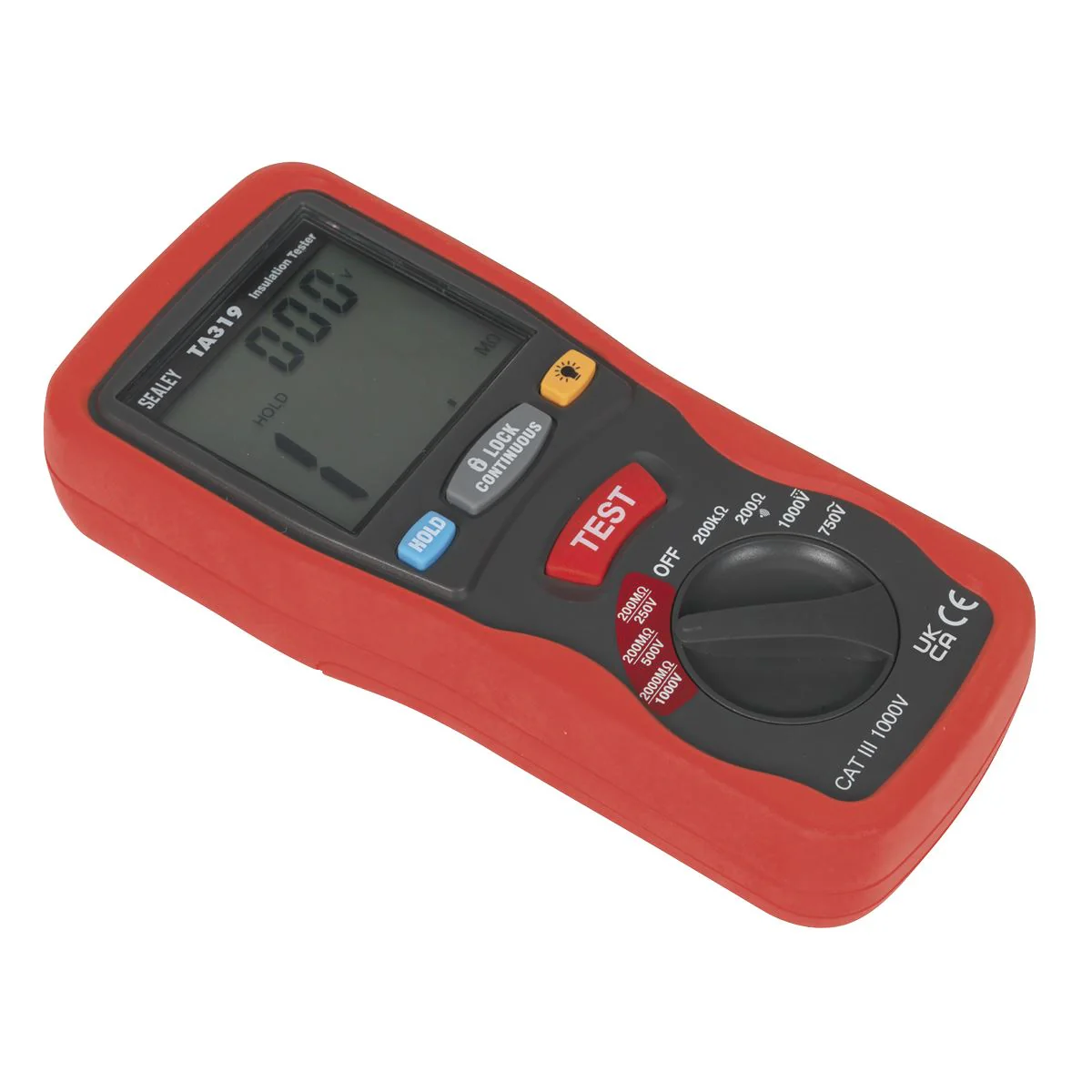

Sealey TA319 Digital Insulation Tester

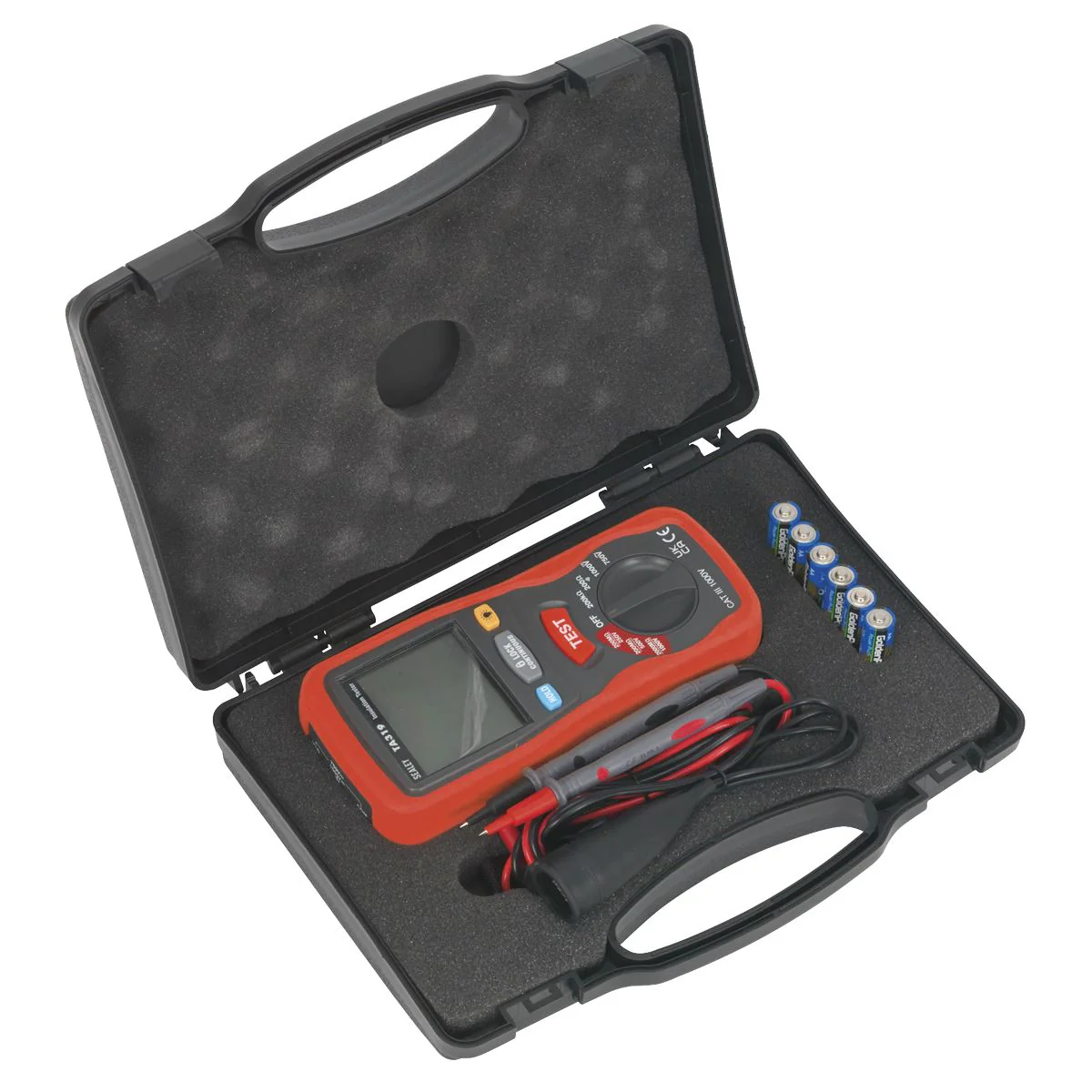

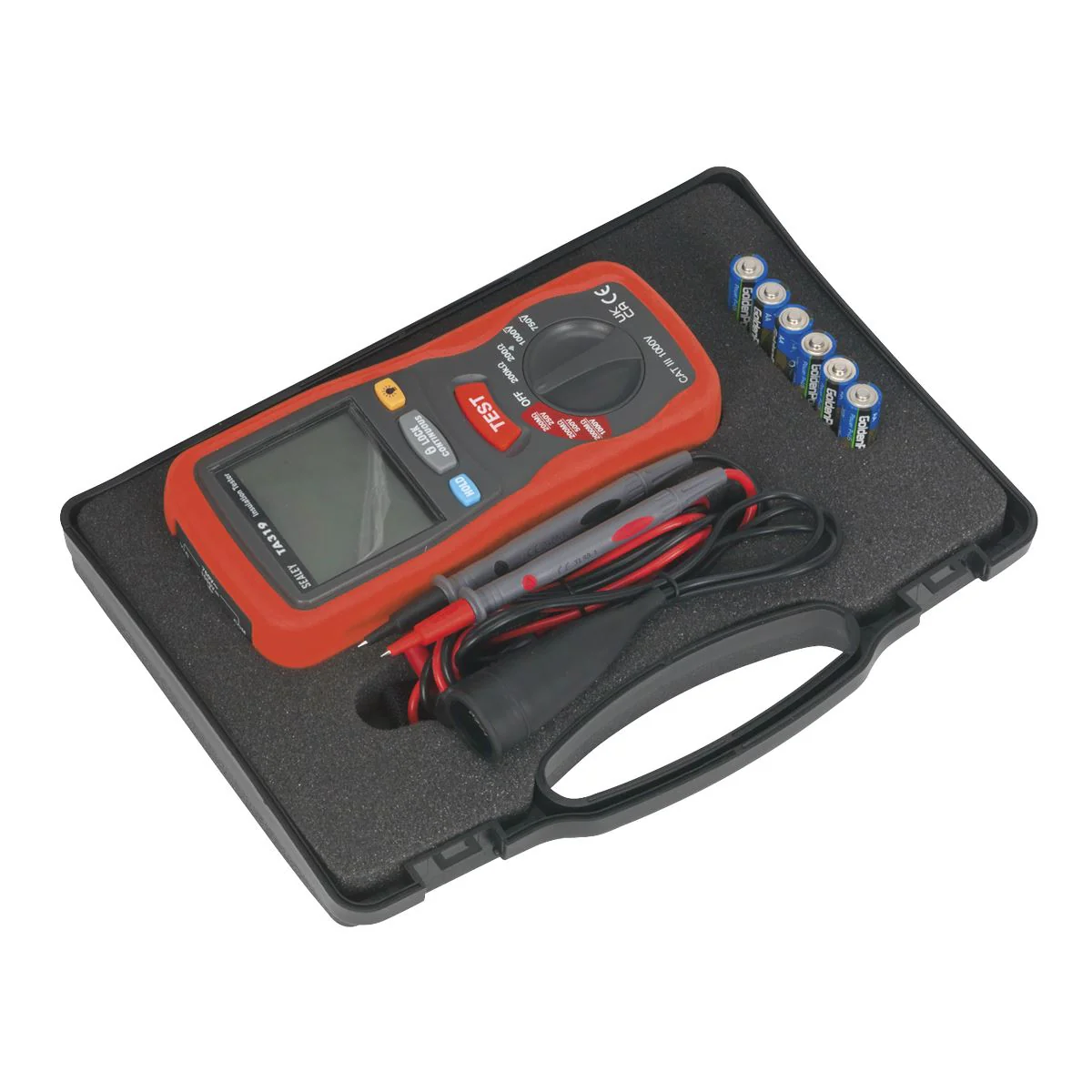

Specially designed for testing insulation on high voltage cables. Suitable for hybrid and electric vehicles. Supplied with test leads, batteries and storage case. Conforms to EN61010 CAT III (1000V).
- Brand: Sealey
- Nett Weight: 1.29kg
- Voltage AC: Range; 750V, Max Resolution; 1V, Accuracy; (±1.2% ± 10-digits)
- Voltage DC: Range; 1000V, Max Resolution; 1V, Accuracy; (±0.8% ± 3-digits)
- Resistance: Range; 200Ω, 2000Ω, Max Resolution; 0.1Ω, 1Ω, Accuracy; (±1% ± 2-digits)
- Insulation Resistance: Range; 200MΩ, 2000MΩ, Max Resolution; 100kΩ-1MΩ, Accuracy; (±3.5% ± 5-digits)
- Test Voltage: 250V/200MΩ, 500V/200MΩ, 1000V/2000MΩ
- Continuity Test: Active Sound Level; ≤40Ω, Test Current; ≤200mA
- Operating Temperature: 0ºC to +40ºC, (<80%R.H)
- Storage Temperature: -10ºC to +60ºC, (<70%R.H)
- Batteries: 6 x 1.5V (supplied)
Manufacturer’s Warranty: 1 Year
$320.90
Sealey TA319 Digital Insulation Tester—
$320.90
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Specially designed for testing insulation on high voltage cables. Suitable for hybrid and electric vehicles. Supplied with test leads, batteries and storage case. Conforms to EN61010 CAT III (1000V).
- Brand: Sealey
- Nett Weight: 1.29kg
- Voltage AC: Range; 750V, Max Resolution; 1V, Accuracy; (±1.2% ± 10-digits)
- Voltage DC: Range; 1000V, Max Resolution; 1V, Accuracy; (±0.8% ± 3-digits)
- Resistance: Range; 200Ω, 2000Ω, Max Resolution; 0.1Ω, 1Ω, Accuracy; (±1% ± 2-digits)
- Insulation Resistance: Range; 200MΩ, 2000MΩ, Max Resolution; 100kΩ-1MΩ, Accuracy; (±3.5% ± 5-digits)
- Test Voltage: 250V/200MΩ, 500V/200MΩ, 1000V/2000MΩ
- Continuity Test: Active Sound Level; ≤40Ω, Test Current; ≤200mA
- Operating Temperature: 0ºC to +40ºC, (<80%R.H)
- Storage Temperature: -10ºC to +60ºC, (<70%R.H)
- Batteries: 6 x 1.5V (supplied)
Manufacturer’s Warranty: 1 Year
