Sealey TA305 AC/DC Clamp Meter & Multimeter

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6

Sealey TA305 AC/DC Clamp Meter & Multimeter

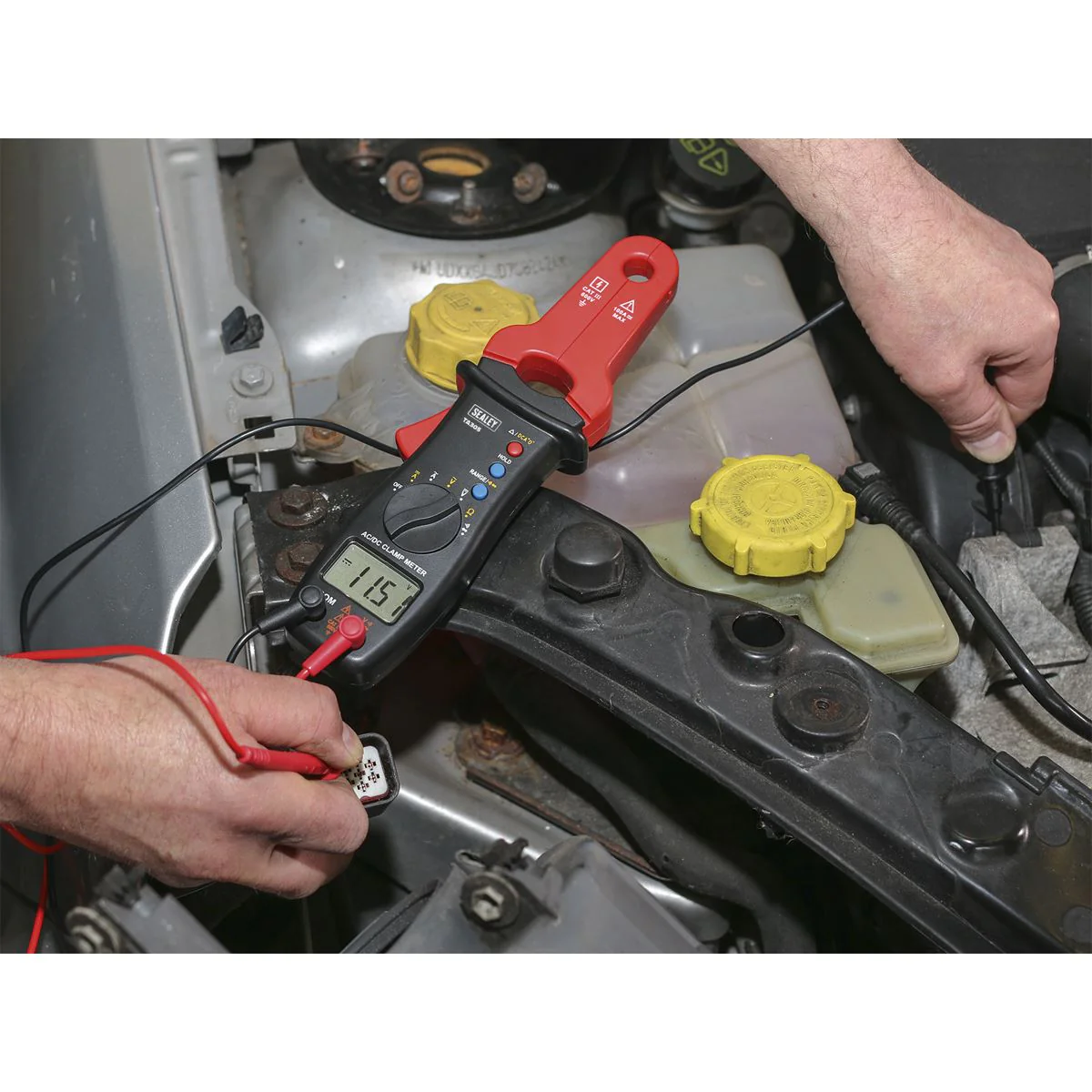

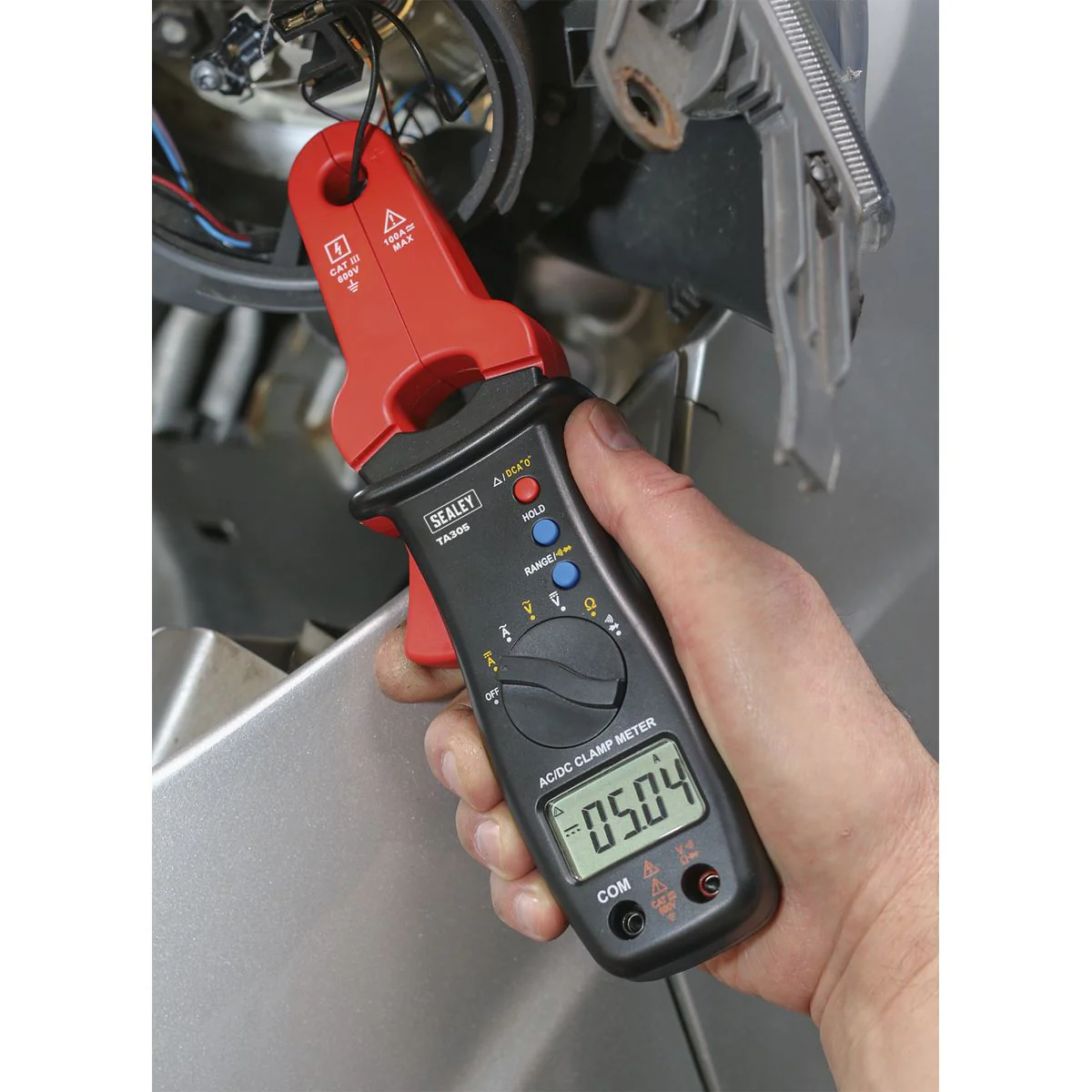

Designed for the automotive electrician and conforms to EN 61010 CAT III 600V. Ideal for measuring current draw from vehicle components in situ. Features 10mm clamp. Supplied in pouch. Measures: • AC/DC Voltage • AC/DC Current • Resistance • Audible Continuity • Diode Test.
  • Brand: Sealey
  • Nett Weight: 185g
  • Jaw Opening Capacity: 10mm
  • Maximum Measurable Conductor: Ø10mm
  • Tach (rpm): No
  • Dwell: No
  • AC Voltage (Accuracy): 400mV, 4V (±1.2%), 40V, 400V, 600V (±1.5%)
  • DC Voltage (Accuracy): 400mV (±0.8%), 4V, 40V, 400V, 600V (±1.0%)
  • AC Current (Accuracy): 40A, 100A (±2.5%)
  • DC Current (Accuracy): 40A, 100A (±2.5%)
  • Capacitance: No
  • Input Impedance: 10MΩ
  • Frequency Range: 40Hz-400Hz
  • Duty Cycle: No
  • Pulse Width: No
  • Resistance: 400Ω (±1.2%), 4kΩ, 40kΩ, 400kΩ (±1.0%), 4MΩ (±1.2%), 40MΩ (±1.5%)
  • Continuity: <50Ω
  • Temperature: No
  • IR Temperature: No
  • Insulation Test: No
  • Diode Test: Yes
  • Transistor Test: No
  • Back Light: No
  • Bar Graph Display: No
  • Data Hold: Yes
  • Auto-Ranging: Yes
  • Inductive Coupler: No
  • PC Interface: No
  • Digits Height: 11mm
  • Auto Power Off: Yes
  • Low Battery Indicator: Yes
  • Batteries (Supplied): 2 x 1.5V
  • Hi-Impact Case: No
  • Size (L x W x D): 226 x 71 x 38mm
  • Weight: 185g
Manufacturer’s Warranty: 1 Year
$54.03

Original: $154.36

-65%
Sealey TA305 AC/DC Clamp Meter & Multimeter—

$154.36

$54.03

Product Information

Shipping & Returns

Description

Designed for the automotive electrician and conforms to EN 61010 CAT III 600V. Ideal for measuring current draw from vehicle components in situ. Features 10mm clamp. Supplied in pouch. Measures: • AC/DC Voltage • AC/DC Current • Resistance • Audible Continuity • Diode Test.
  • Brand: Sealey
  • Nett Weight: 185g
  • Jaw Opening Capacity: 10mm
  • Maximum Measurable Conductor: Ø10mm
  • Tach (rpm): No
  • Dwell: No
  • AC Voltage (Accuracy): 400mV, 4V (±1.2%), 40V, 400V, 600V (±1.5%)
  • DC Voltage (Accuracy): 400mV (±0.8%), 4V, 40V, 400V, 600V (±1.0%)
  • AC Current (Accuracy): 40A, 100A (±2.5%)
  • DC Current (Accuracy): 40A, 100A (±2.5%)
  • Capacitance: No
  • Input Impedance: 10MΩ
  • Frequency Range: 40Hz-400Hz
  • Duty Cycle: No
  • Pulse Width: No
  • Resistance: 400Ω (±1.2%), 4kΩ, 40kΩ, 400kΩ (±1.0%), 4MΩ (±1.2%), 40MΩ (±1.5%)
  • Continuity: <50Ω
  • Temperature: No
  • IR Temperature: No
  • Insulation Test: No
  • Diode Test: Yes
  • Transistor Test: No
  • Back Light: No
  • Bar Graph Display: No
  • Data Hold: Yes
  • Auto-Ranging: Yes
  • Inductive Coupler: No
  • PC Interface: No
  • Digits Height: 11mm
  • Auto Power Off: Yes
  • Low Battery Indicator: Yes
  • Batteries (Supplied): 2 x 1.5V
  • Hi-Impact Case: No
  • Size (L x W x D): 226 x 71 x 38mm
  • Weight: 185g
Manufacturer’s Warranty: 1 Year
