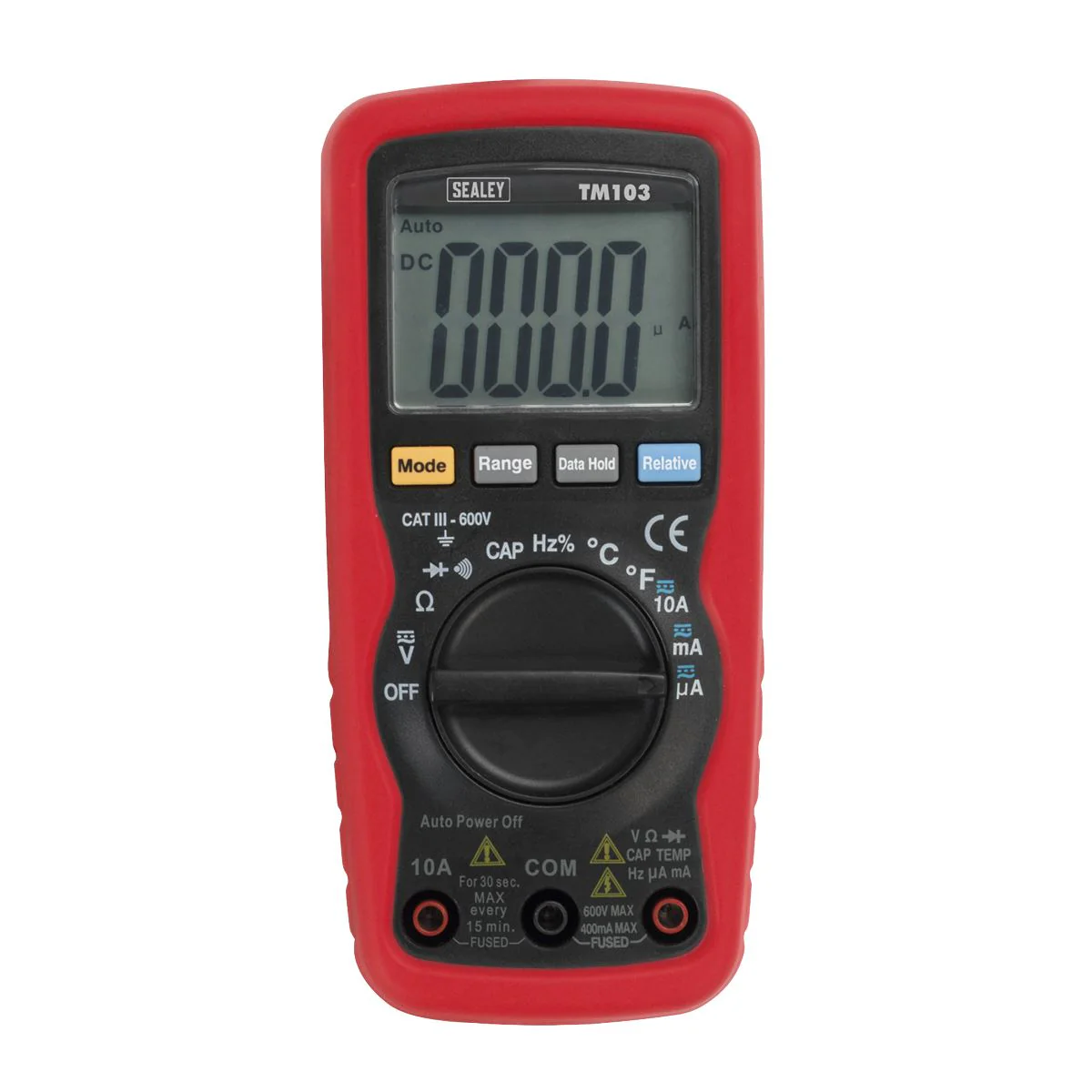

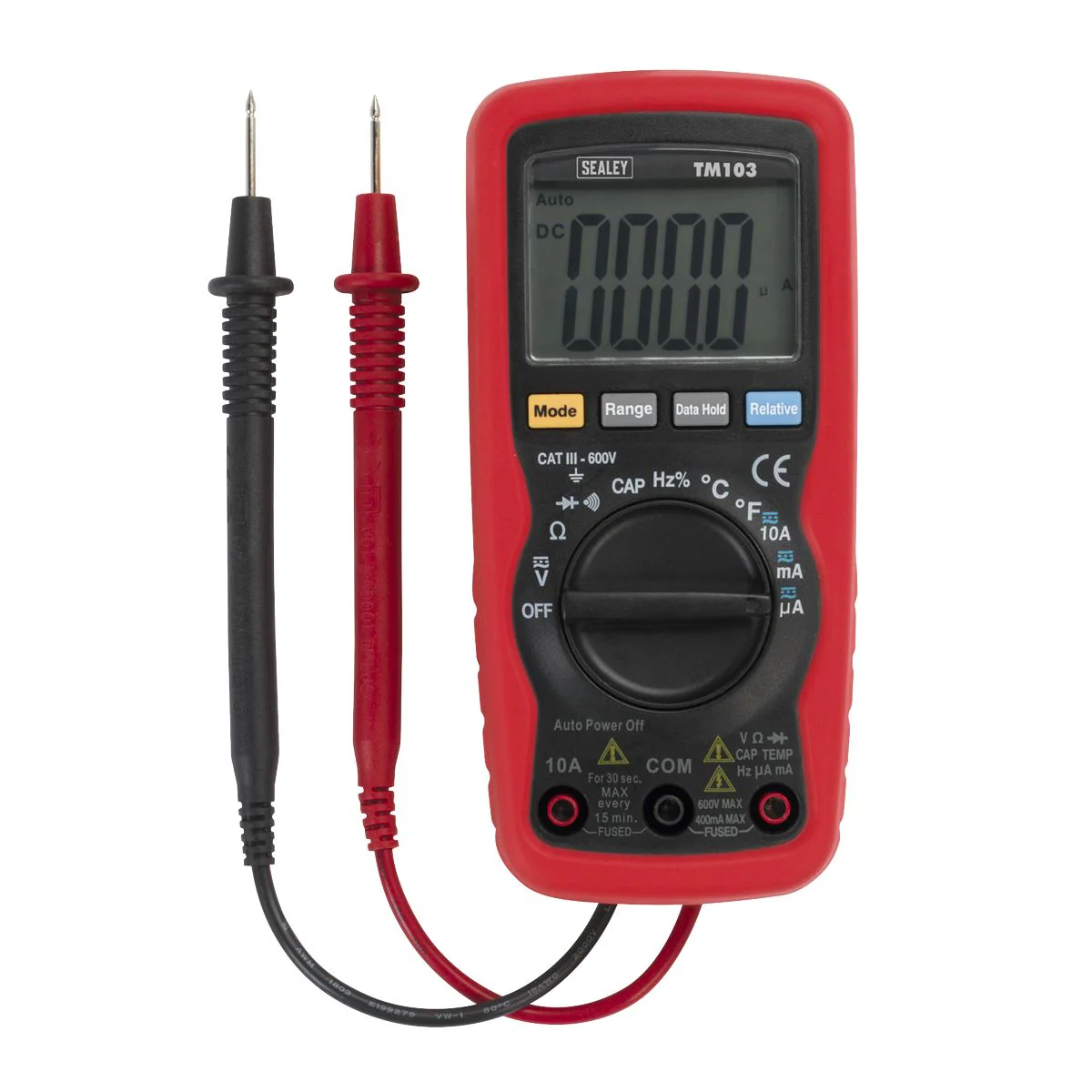

Sealey TM103 Professional Auto-Ranging Digital Multimeter - 11-Function

Product image 1
Product image 2

Sealey TM103 Professional Auto-Ranging Digital Multimeter - 11-Function

High precision auto-ranging multimeter. Conforms to EN 61010-1 CATIII 600V safety requirements for electrical equipment for measurement, control and laboratory use. Features temperature measurement capability, max./data-hold, and auto-power-off function. Double moulded housing with soft grip case and large display for ease of use. Practical probe and lead storage and integral upright stand for use on the workbench. Supplied in zipped pouch with carry strap. Measures: • Frequency • Duty Cycle • AC and DC Voltage • AC and DC Current • Resistance • Diode Test • Audible Continuity • Temperature
  • Brand: Sealey
  • Nett Weight: 255g
  • AC Voltage (Accuracy): 400mV (±1.5%), 4V (±1.2%), 40V, 400V (±1.5%), 600V (±2%)
  • DC Voltage (Accuracy): 0-400mV (±0.5%), 4V, 40V, 400V (±1.2%), 600V (±1.5%)
  • AC Current (Accuracy): 400µA (±1.5%), 4000µA, 40mA, 400mA (±1.8%), 10A (±3%)
  • DC Current (Accuracy): 400µa (±1%), 4000µa, 40mA, 400mA (±1.5%), 10A (±2.5%)
  • Resistance (Accuracy): 0-400Ω (±1.2%), 4kΩ (±1%), 40kΩ, 400kΩ, 4MΩ (±1.2%), 40MΩ (±2%)
  • Capacitance (Accuracy): 4nF, 40nF (±5%), 400nF, 4µF, 40µF (±3%), 100µF (±5%)
  • Temperature (Accuracy): -20ºC to 760ºC (±3%), -4 to 1400ºF (±5%)
  • Frequency (Accuracy): 9.999Hz to 9.999MHz
  • Duty Cycle: 0.1%-99.9% (±1.2%)
  • Continuity Audible: Yes
  • Diode Test: Yes
  • Transistor Test: No
  • Hi-Impact Rubber Case: Yes
  • Digits x Height: 2.1 x 24.5mm
  • Low Battery Indicator: Yes
  • Battery (Supplied): 1 x 9V
  • Information: Data-Hold & Auto-Power-Off
  • Size (L x W x D): 150 x 70 x 48mm
  • Weight: 255g
  • Conformity: EN 61010-1
Manufacturer’s Warranty: 1 Year
$113.74
Sealey TM103 Professional Auto-Ranging Digital Multimeter - 11-Function—
$113.74

Product Information

Shipping & Returns

Description

High precision auto-ranging multimeter. Conforms to EN 61010-1 CATIII 600V safety requirements for electrical equipment for measurement, control and laboratory use. Features temperature measurement capability, max./data-hold, and auto-power-off function. Double moulded housing with soft grip case and large display for ease of use. Practical probe and lead storage and integral upright stand for use on the workbench. Supplied in zipped pouch with carry strap. Measures: • Frequency • Duty Cycle • AC and DC Voltage • AC and DC Current • Resistance • Diode Test • Audible Continuity • Temperature
  • Brand: Sealey
  • Nett Weight: 255g
  • AC Voltage (Accuracy): 400mV (±1.5%), 4V (±1.2%), 40V, 400V (±1.5%), 600V (±2%)
  • DC Voltage (Accuracy): 0-400mV (±0.5%), 4V, 40V, 400V (±1.2%), 600V (±1.5%)
  • AC Current (Accuracy): 400µA (±1.5%), 4000µA, 40mA, 400mA (±1.8%), 10A (±3%)
  • DC Current (Accuracy): 400µa (±1%), 4000µa, 40mA, 400mA (±1.5%), 10A (±2.5%)
  • Resistance (Accuracy): 0-400Ω (±1.2%), 4kΩ (±1%), 40kΩ, 400kΩ, 4MΩ (±1.2%), 40MΩ (±2%)
  • Capacitance (Accuracy): 4nF, 40nF (±5%), 400nF, 4µF, 40µF (±3%), 100µF (±5%)
  • Temperature (Accuracy): -20ºC to 760ºC (±3%), -4 to 1400ºF (±5%)
  • Frequency (Accuracy): 9.999Hz to 9.999MHz
  • Duty Cycle: 0.1%-99.9% (±1.2%)
  • Continuity Audible: Yes
  • Diode Test: Yes
  • Transistor Test: No
  • Hi-Impact Rubber Case: Yes
  • Digits x Height: 2.1 x 24.5mm
  • Low Battery Indicator: Yes
  • Battery (Supplied): 1 x 9V
  • Information: Data-Hold & Auto-Power-Off
  • Size (L x W x D): 150 x 70 x 48mm
  • Weight: 255g
  • Conformity: EN 61010-1
Manufacturer’s Warranty: 1 Year
