Sealey SM2502 Mini Drilling & Milling Machine

Product image 1
Product image 2

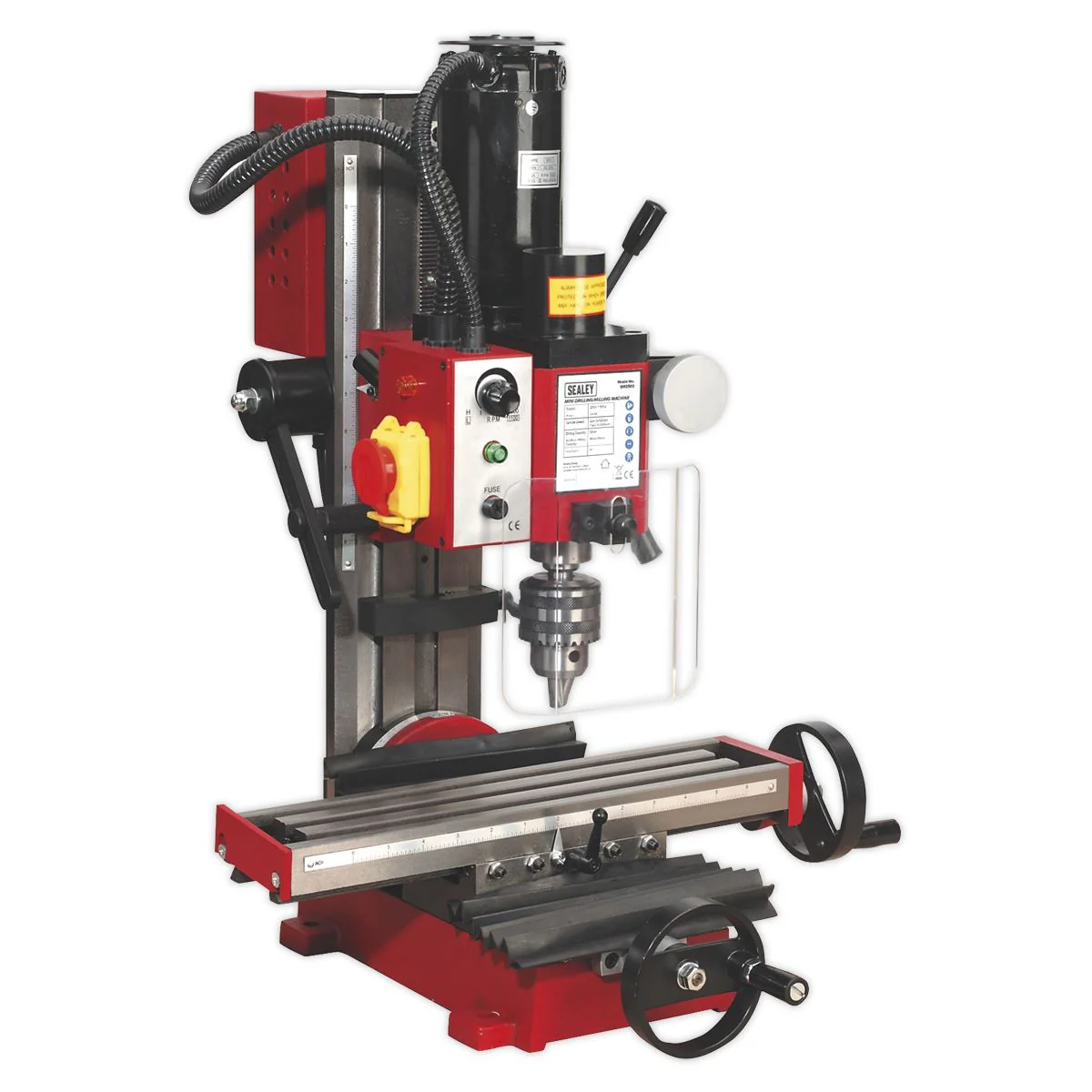

Sealey SM2502 Mini Drilling & Milling Machine

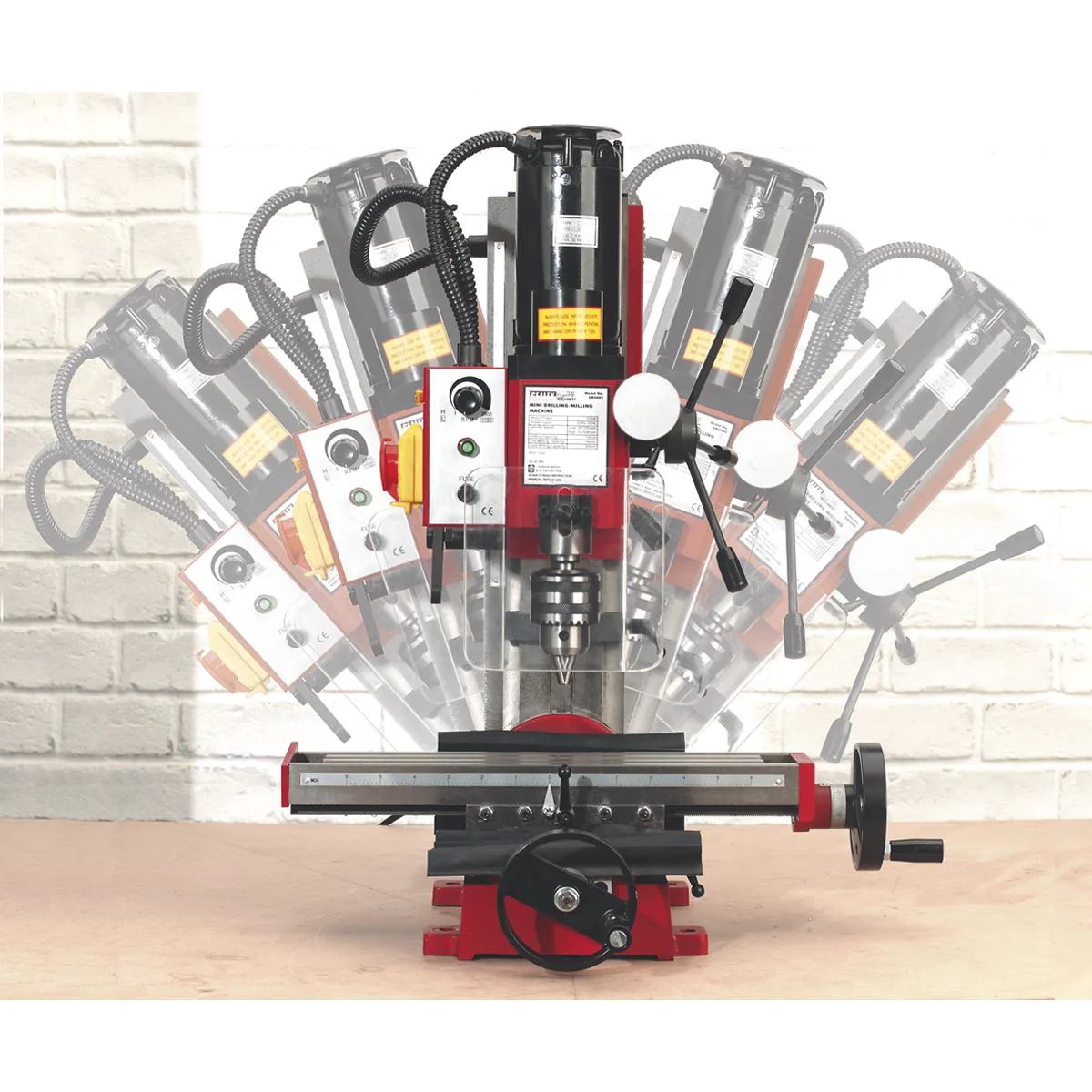

Bench mounting mini drilling/milling machine with the flexibility to handle most materials. Features include a 350W motor, variable speed drive, working table with T-slots to enable clamping of workpieces and metric graduated compound scales. The machine also incorporates a tilting column which allows drilling/milling of workpiece at ±45° from vertical. Supplied with 13mm chuck accessory kit for adjusting and setting. An optional stand is available, order Model No. SM3002ST.
  • Brand: Sealey
  • Cross Axis: 100mm
  • Drilling Capacity (Chuck Size): 13mm
  • End Mill Capacity: 16mm
  • Face Mill Capacity: 30mm
  • Headstock Travel: 180mm
  • Longitudinal Axis: 220mm
  • Motor Power: 350W
  • Nett Weight: 68kg
  • Spindle Nose Taper: MT3
  • Spindle Speed - High Range: 0-2500rpm
  • Spindle Speed - Low Range: 0-1100rpm
  • Spindle Tilt Angle: ±45°
  • Supply: 230V
  • T-Slot: 12mm
Manufacturer’s Warranty: 1 Year
$1,951.14
Sealey SM2502 Mini Drilling & Milling Machine
$1,951.14

Product Information

Shipping & Returns

Description

Bench mounting mini drilling/milling machine with the flexibility to handle most materials. Features include a 350W motor, variable speed drive, working table with T-slots to enable clamping of workpieces and metric graduated compound scales. The machine also incorporates a tilting column which allows drilling/milling of workpiece at ±45° from vertical. Supplied with 13mm chuck accessory kit for adjusting and setting. An optional stand is available, order Model No. SM3002ST.
  • Brand: Sealey
  • Cross Axis: 100mm
  • Drilling Capacity (Chuck Size): 13mm
  • End Mill Capacity: 16mm
  • Face Mill Capacity: 30mm
  • Headstock Travel: 180mm
  • Longitudinal Axis: 220mm
  • Motor Power: 350W
  • Nett Weight: 68kg
  • Spindle Nose Taper: MT3
  • Spindle Speed - High Range: 0-2500rpm
  • Spindle Speed - Low Range: 0-1100rpm
  • Spindle Tilt Angle: ±45°
  • Supply: 230V
  • T-Slot: 12mm
Manufacturer’s Warranty: 1 Year
