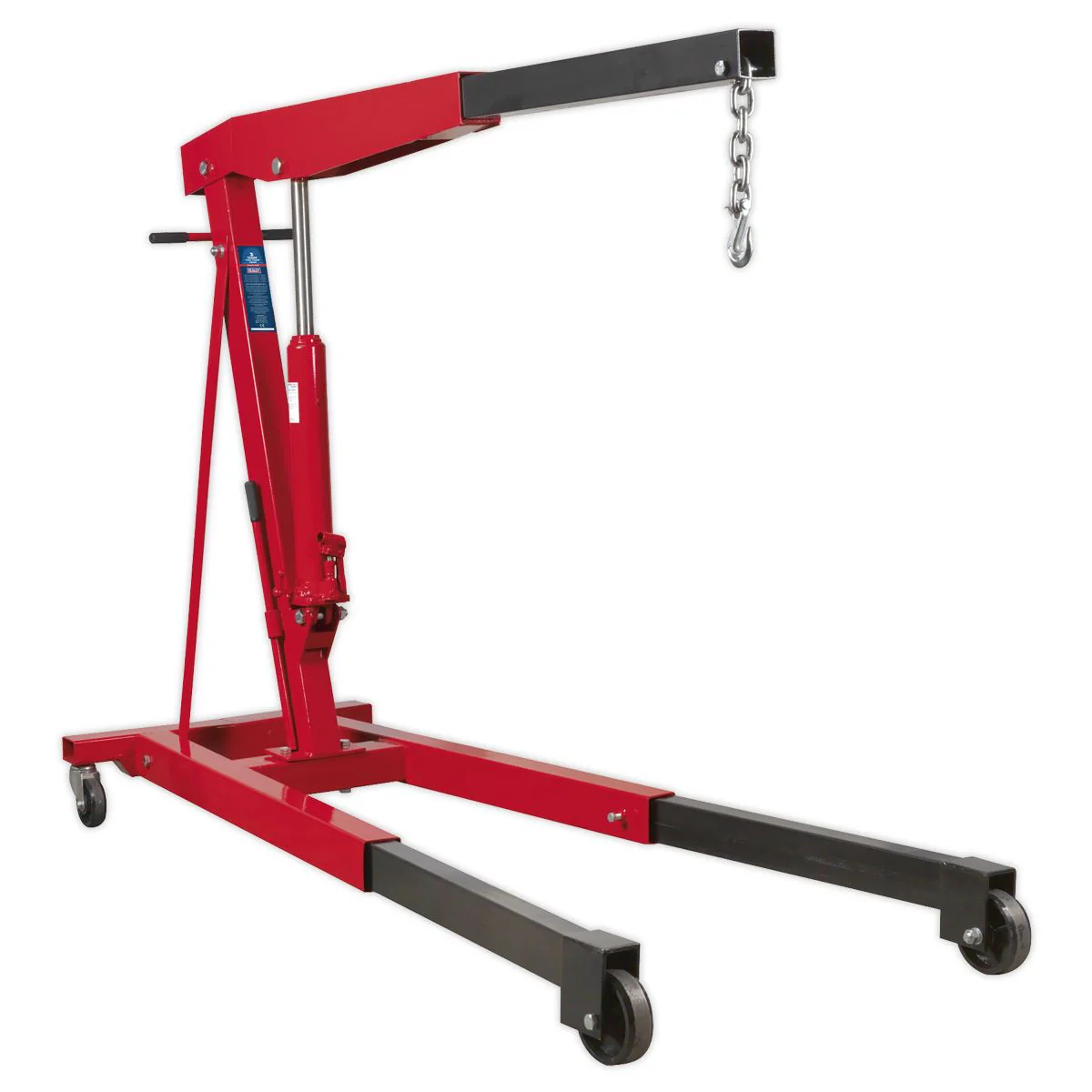

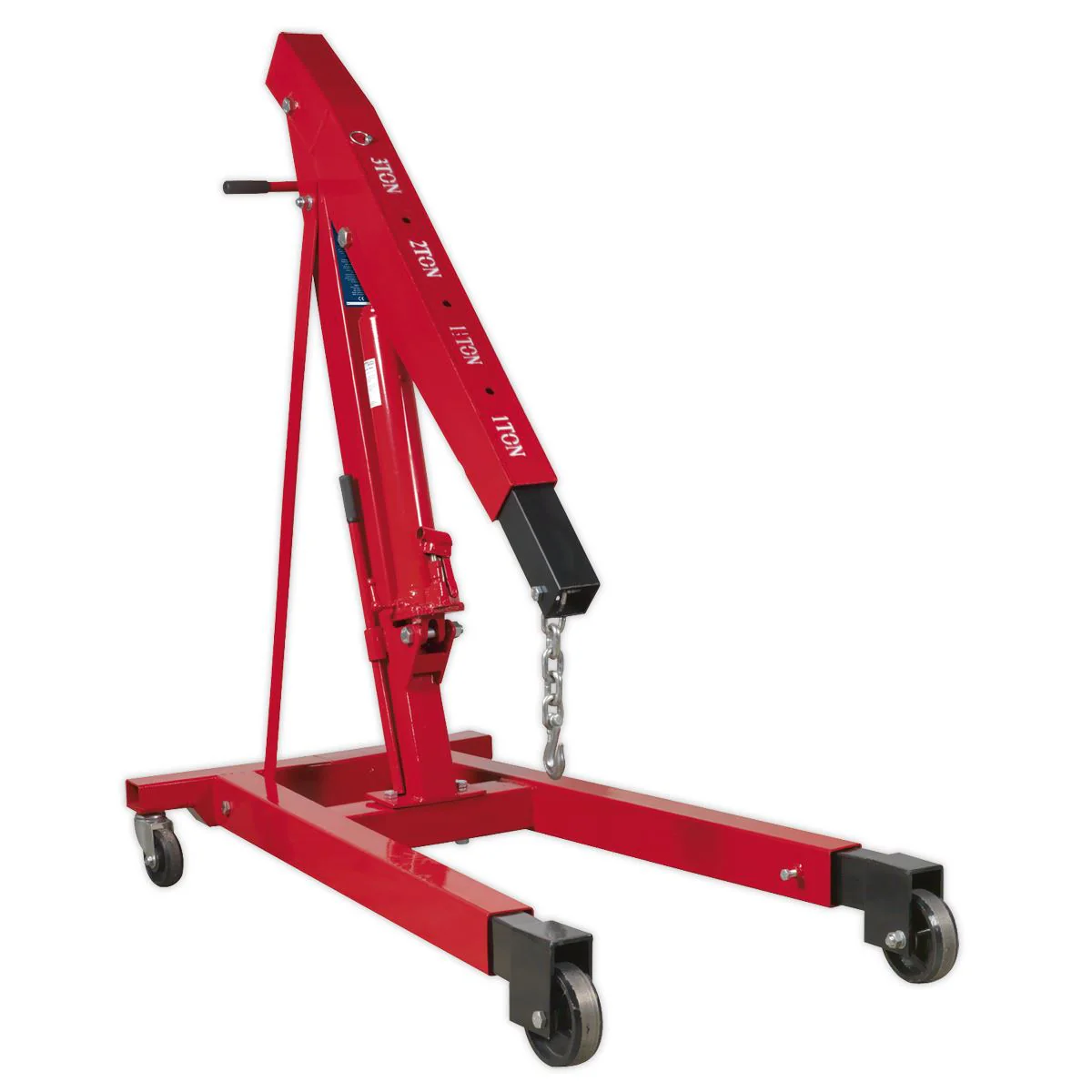

Sealey PH30 Fixed Frame Engine Crane with Extendable Legs 3 Tonne

Product image 1
Product image 2
Product image 3
Product image 4

Sealey PH30 Fixed Frame Engine Crane with Extendable Legs 3 Tonne

Weighs 155kg and is perfect for heavy commercial, industrial and workshop use. Extendable heavy-duty legs for improved stability, particularly when operating at maximum jib extensions. Beam can be set in 4-positions with a capacity of 1000kg at its full extension of 1820mm. Heavy-duty castors and pump access from side, for safe handling of heavy loads. Delivered in knock-down form for reduced freight cost. Some self-assembly required.
  • Brand: Sealey
  • Height Jib Down: 1610mm
  • Height Legs Folded: n/a
  • Height of Frame: 195mm
  • Length of Jib Position 1: 1200mm
  • Length of Jib Position 2: 1400mm
  • Length of Jib Position 3: 1610mm
  • Length of Jib Position 4: 1820mm
  • Length of Jib Position 5: n/a
  • Lifting Capacity in Position 1: 3000kg
  • Lifting Capacity in Position 2: 2000kg
  • Lifting Capacity in Position 3: 1500kg
  • Lifting Capacity in Position 4: 1000kg
  • Lifting Capacity in Position 5: n/a
  • Max. Lift Ht at Jib Position 1: 1880mm
  • Max. Lift Ht at Jib Position 2: 1970mm
  • Max. Lift Ht at Jib Position 3: 2010mm
  • Max. Lift Ht at Jib Position 4: 2220mm
  • Max. Lift Ht at Jib Position 5: n/a
  • Nett Weight: 155kg
  • Note: *Legs Extended
  • Rear Width: 780mm
  • Width Front Frame: 855mm*
  • Width Inside Front Frame: 700mm*
  • Width Front Frame: 855mm*
  • Width Inside Front Frame: 700mm*
Manufacturer’s Warranty: 1 Year
