Sealey ATV1135 ATV/Quad Recovery Winch 1135kg (2500lb) Line Pull 12V

Product image 1
Product image 2
Product image 3

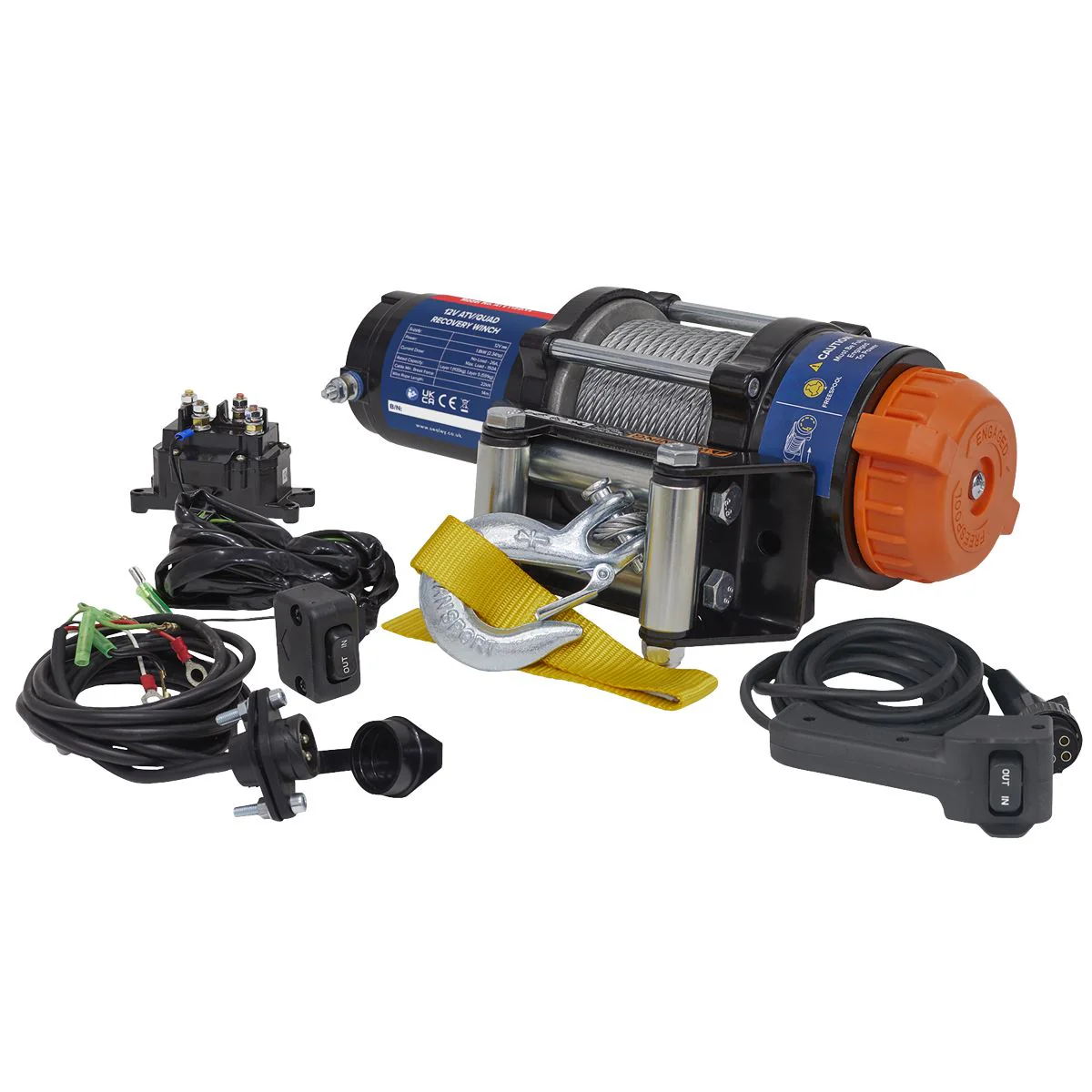

Product image 4

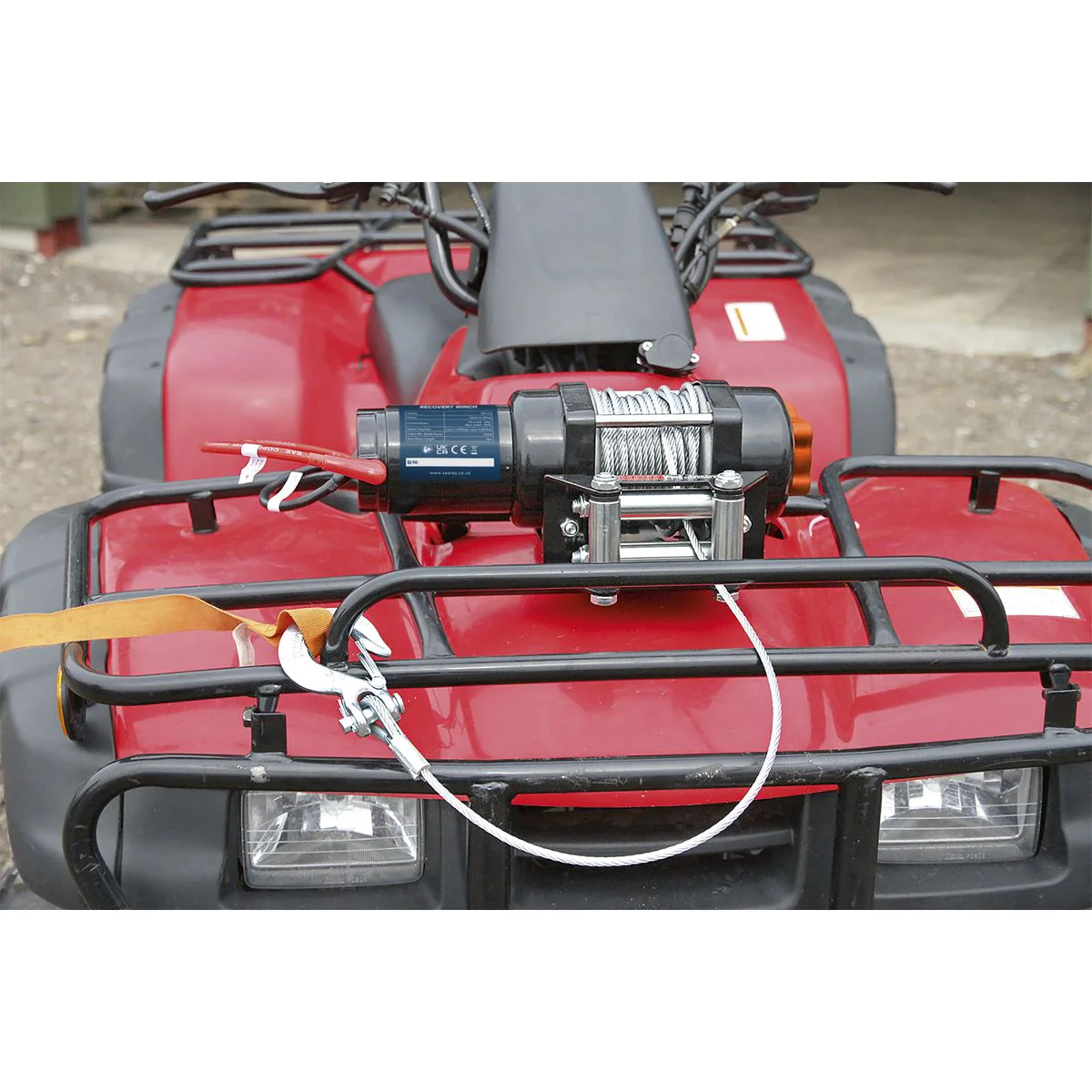

Product image 5

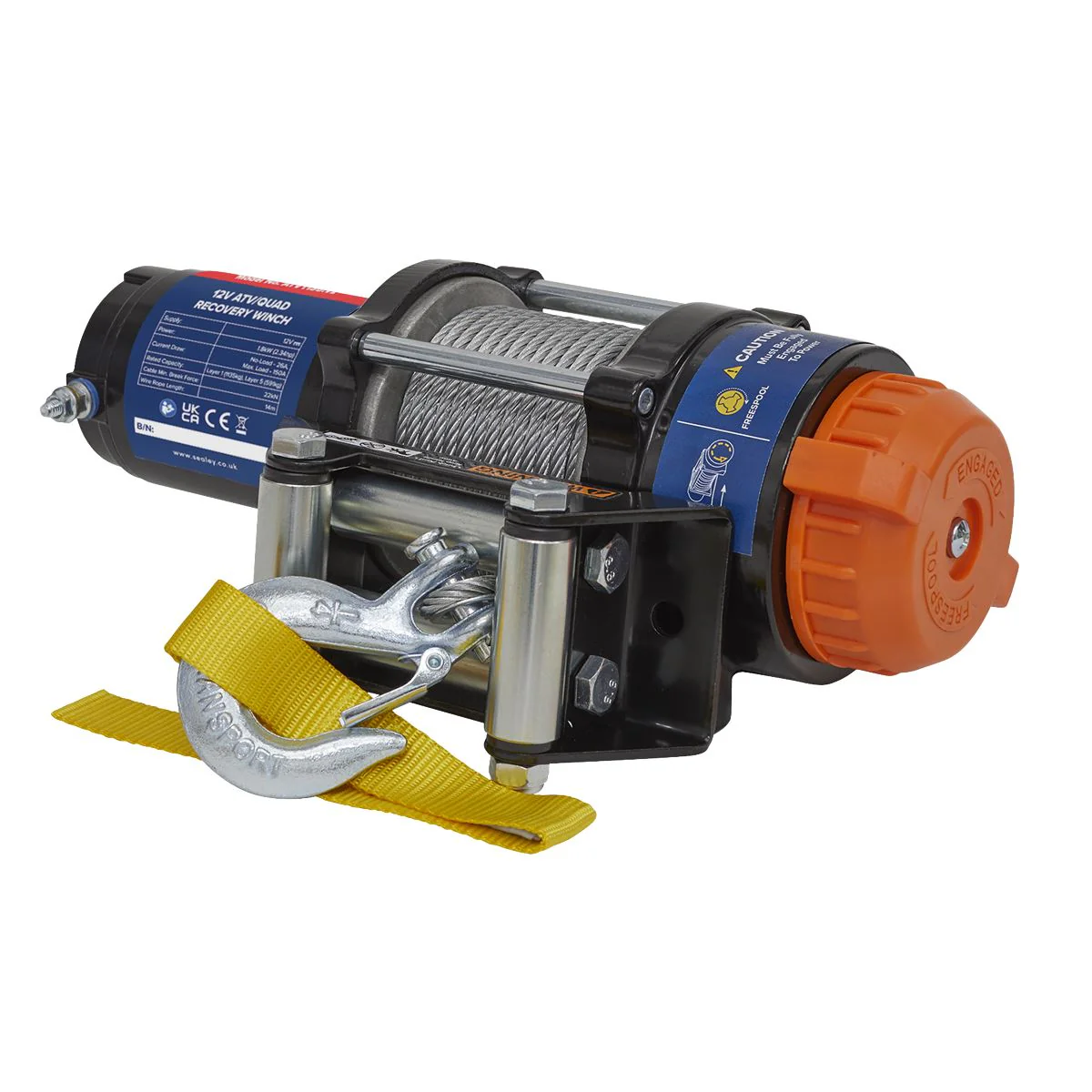

Product image 6

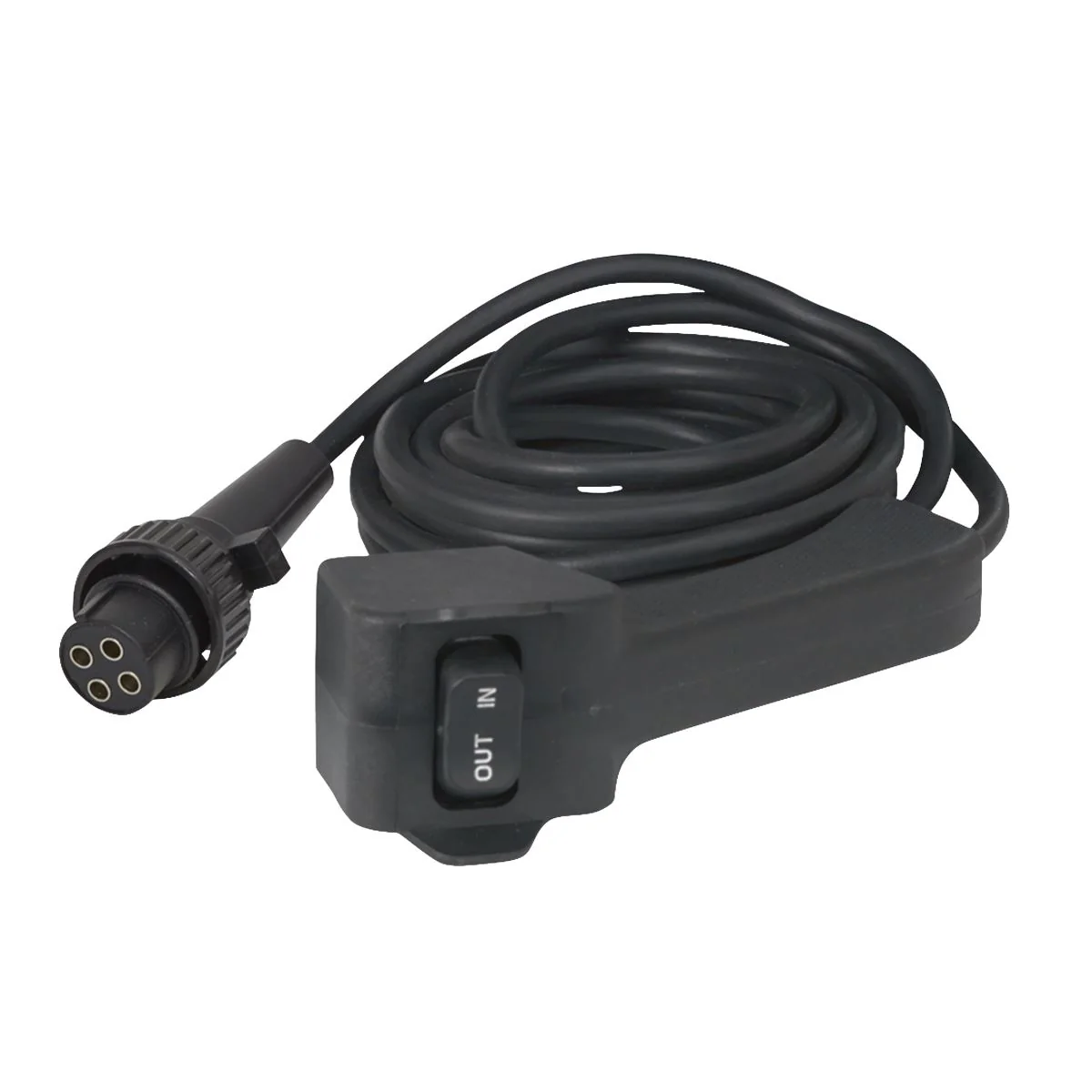

Product image 7

Sealey ATV1135 ATV/Quad Recovery Winch 1135kg (2500lb) Line Pull 12V

Suitable for ATV and quad bike mounting, these high-speed winches offer a combination of performance with durability. Designed and built with the toughest jobs in mind. High power 1.8kW (2.34hp) 12V DC permanent magnet type motor gives first class pulling power. Heavy-duty all-weather housing. 3-Stage planetary gears. Patented unique automatic spring brake, reliable in full load operation. Sliding ring gear clutch. High quality wire rope feeds through 4-way roller fairlead. IP67 rated motor and gearbox.
  • Brand: Sealey
  • Cable Minimum Brake Force: 22kN
  • Consumable Parts: ATV1135.WR - Wire Rope (Ø4.8mm x 15.2m) for ATV1135, ATV1135.DR - Dyneema Rope (Ø4.9mm x 15.2m) for ATV1135
  • Current Draw: No-Load - 26A, Maximum Load - 150A
  • Gear Ratio: 180:1
  • Line Pull*: 1135kg(2500lb)
  • Line Speed*: No-Load - 4.8m/min, Maximum Load - 1.6m/min
  • Motor Power: 1.8kW(2.34hp)
  • Nett Weight: 11.8kg
  • Note: *Performance quoted at first layer of cable on drum
  • Rated Capacity: Layer 1: 1135kg, Layer 5: 591kg
  • Supply: 12V
  • Wire Rope Diameter: 4.8mm
  • Wire Rope Length: 14m
Manufacturer’s Warranty: 1 Year
$125.58

Original: $358.81

-65%
Sealey ATV1135 ATV/Quad Recovery Winch 1135kg (2500lb) Line Pull 12V—

$358.81

$125.58

Product Information

Shipping & Returns

Description

Suitable for ATV and quad bike mounting, these high-speed winches offer a combination of performance with durability. Designed and built with the toughest jobs in mind. High power 1.8kW (2.34hp) 12V DC permanent magnet type motor gives first class pulling power. Heavy-duty all-weather housing. 3-Stage planetary gears. Patented unique automatic spring brake, reliable in full load operation. Sliding ring gear clutch. High quality wire rope feeds through 4-way roller fairlead. IP67 rated motor and gearbox.
  • Brand: Sealey
  • Cable Minimum Brake Force: 22kN
  • Consumable Parts: ATV1135.WR - Wire Rope (Ø4.8mm x 15.2m) for ATV1135, ATV1135.DR - Dyneema Rope (Ø4.9mm x 15.2m) for ATV1135
  • Current Draw: No-Load - 26A, Maximum Load - 150A
  • Gear Ratio: 180:1
  • Line Pull*: 1135kg(2500lb)
  • Line Speed*: No-Load - 4.8m/min, Maximum Load - 1.6m/min
  • Motor Power: 1.8kW(2.34hp)
  • Nett Weight: 11.8kg
  • Note: *Performance quoted at first layer of cable on drum
  • Rated Capacity: Layer 1: 1135kg, Layer 5: 591kg
  • Supply: 12V
  • Wire Rope Diameter: 4.8mm
  • Wire Rope Length: 14m
Manufacturer’s Warranty: 1 Year
