Sealey TA310 Current Clamp 20A/80A AC/DC - 12mm

Product image 1
Product image 2
Product image 3

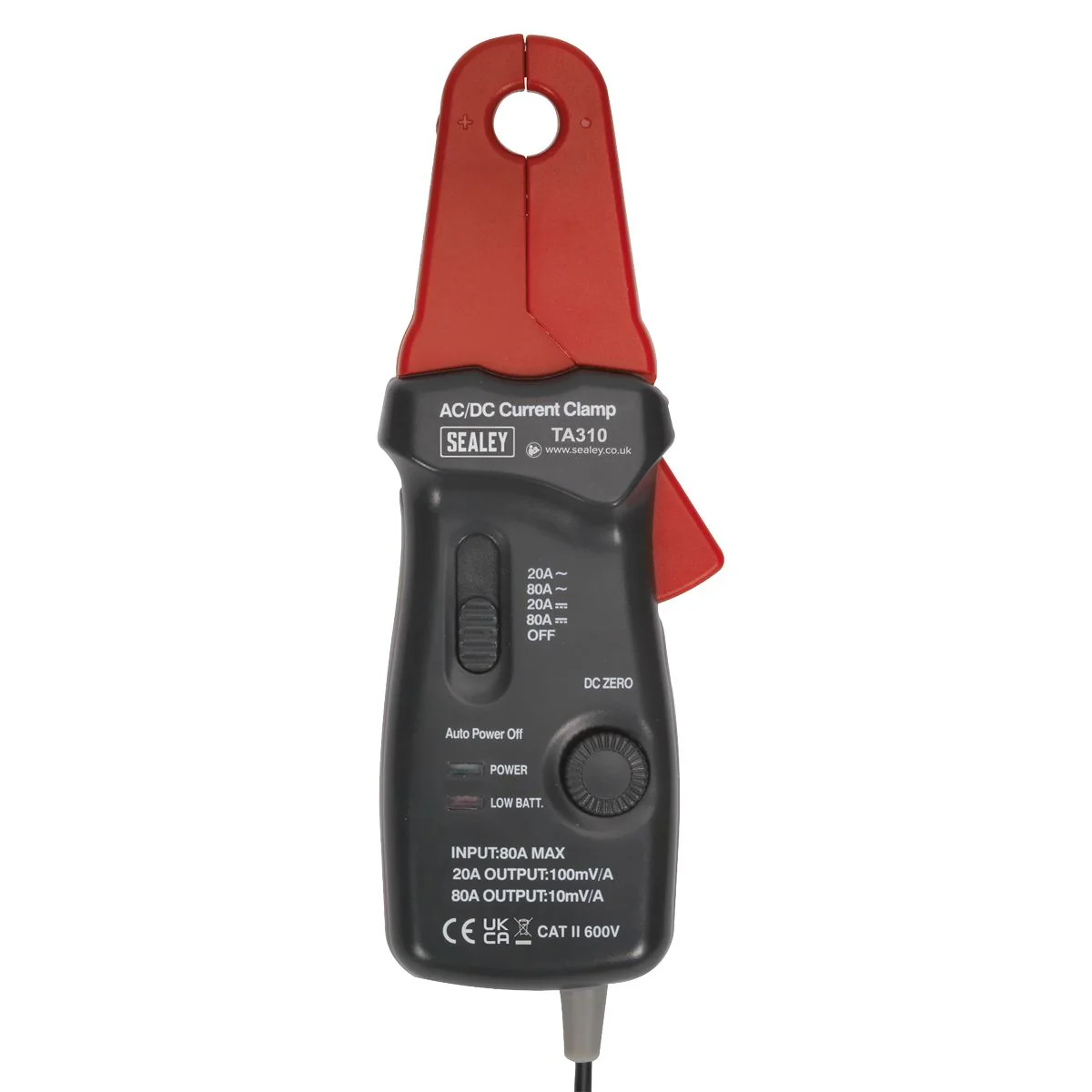

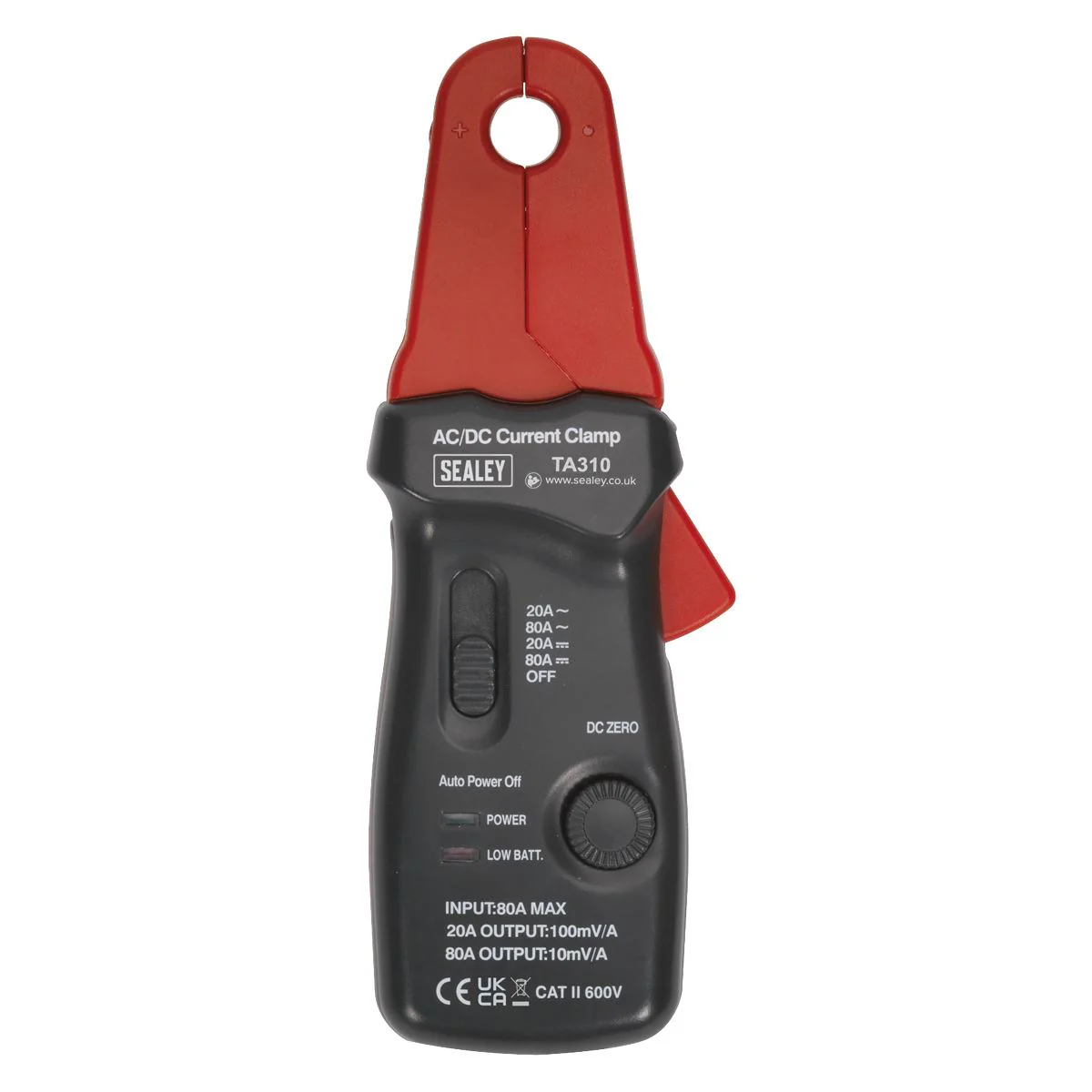

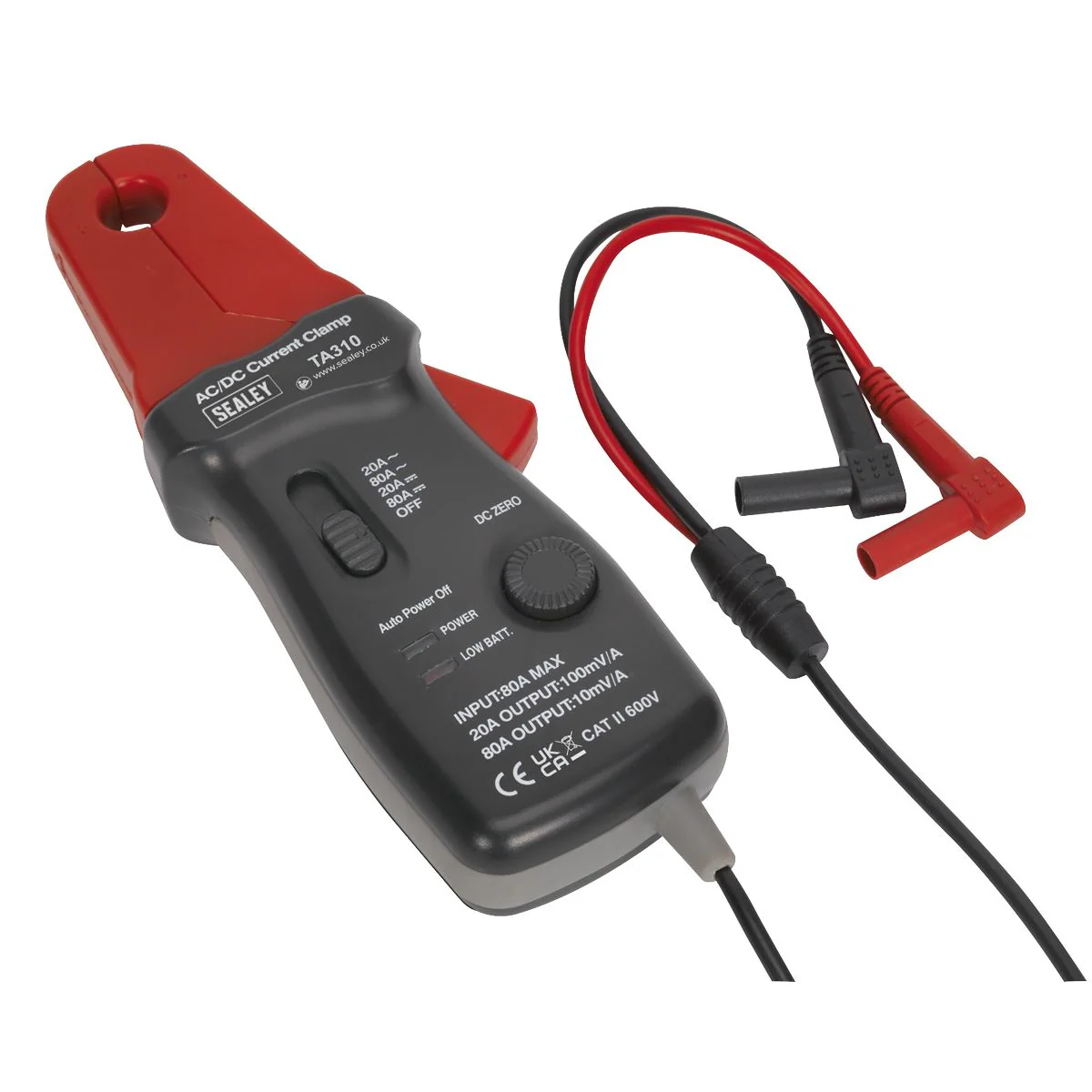

Sealey TA310 Current Clamp 20A/80A AC/DC - 12mm

Designed for use with a standard multimeter and measures current draw from vehicle components in situ. Suitable for measuring both AC and DC current, without breaking into the circuit. Fitted with 4mm banana connectors and supplied in storage pouch. Powered by 9V battery (supplied). Can also be used with an oscilloscope using a suitable BNC conversion adaptor.
  • Brand: Sealey
  • Nett Weight: 0.31kg
  • TA310 Captured Conductor Size: Ø8mm maximum
  • Low Battery Indicator: LED red
  • Operating Temperature: 0°C to 50°C.
  • Storage Temperature: -15°C to 50°C.
  • Battery Type: 9V DC
  • Typical Battery Life: 80hrs (alkaline)
  • Weight: 240g
  • TA310 Dimensions (H x W x D): 190mm x 70mm x 38mm
  • Output Connection: Banana plugs (red & black)
  • 20A (output: 100mV/A=1mV/10mA): <2A use DC or rms AC for 200mV range of the multimeter,>2A use DC or rms AC for 2V range of the multimeter.
  • 80A (output: 10mV/A): DC or rms AC for 200mV range of the multimeter.
Manufacturer’s Warranty: 1 Year
$49.76

Original: $142.17

-65%
Sealey TA310 Current Clamp 20A/80A AC/DC - 12mm—

$142.17

$49.76

Product Information

Shipping & Returns

Description

Designed for use with a standard multimeter and measures current draw from vehicle components in situ. Suitable for measuring both AC and DC current, without breaking into the circuit. Fitted with 4mm banana connectors and supplied in storage pouch. Powered by 9V battery (supplied). Can also be used with an oscilloscope using a suitable BNC conversion adaptor.
  • Brand: Sealey
  • Nett Weight: 0.31kg
  • TA310 Captured Conductor Size: Ø8mm maximum
  • Low Battery Indicator: LED red
  • Operating Temperature: 0°C to 50°C.
  • Storage Temperature: -15°C to 50°C.
  • Battery Type: 9V DC
  • Typical Battery Life: 80hrs (alkaline)
  • Weight: 240g
  • TA310 Dimensions (H x W x D): 190mm x 70mm x 38mm
  • Output Connection: Banana plugs (red & black)
  • 20A (output: 100mV/A=1mV/10mA): <2A use DC or rms AC for 200mV range of the multimeter,>2A use DC or rms AC for 2V range of the multimeter.
  • 80A (output: 10mV/A): DC or rms AC for 200mV range of the multimeter.
Manufacturer’s Warranty: 1 Year
