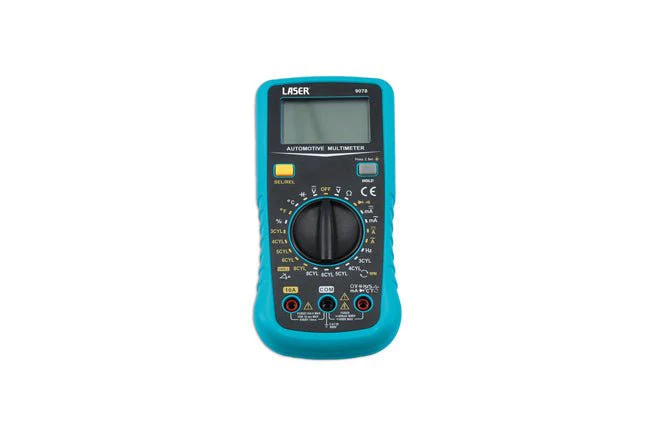

Laser Tools 9078 Automotive Multimeter CAT III

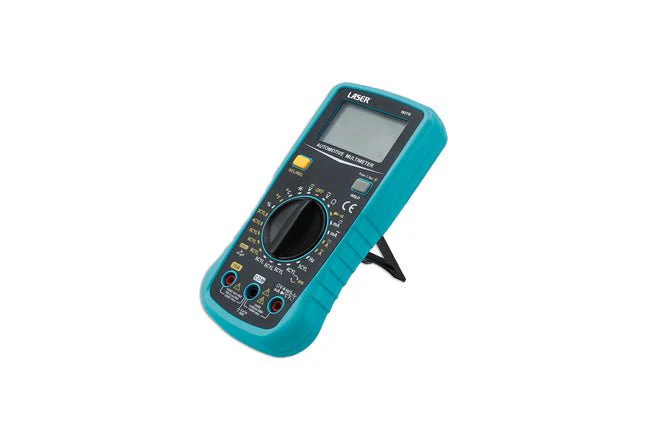

A CAT III multi-meter for measuring both DC and AC voltages, DC current, resistance, temperature, capacitance, frequency, duty angle, dwell angle, tacho RPM, diodes and continuity. It also features an easy to read digital display with backlight together with a data hold function, continuity buzzer and low battery indicator. Suitable for voltages up to 600V, it’s ideal for testing wiring and circuitry in the workshop and at home. This compact meter features an integral flip down stand for ease of use, and is supplied with a pair of test leads.
- Features: Data hold function, diode test, continuity buzzer, low battery indicator, overload protection & backlight.
- Size: 37 x 80 x 166mm. Weight: 192g (approx.).
- DC voltage: Range; 400mV, 4V, 40V, 400V & 600V. AC voltage: Range; 4V, 40V, 400V & 600V. DC Current: 40mA, 400mA, 4A & 10A. AC Current: 40mA, 400mA, 4A & 10A. Resistance: 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ 40MΩ.
- Frequency: 4, 40, 400, 4k, 40k, 400kHz & 4.0mHz. Capacitance: 4nF~4mF. Temperature: -20°C~1000°C. Duty cycle: 0.5~98.5%. Dwell angle: 3, 4, 5, 6 & 8cyl. Tacho: 3, 4, 5, 6 & 8cyl/120-20,000RPM.

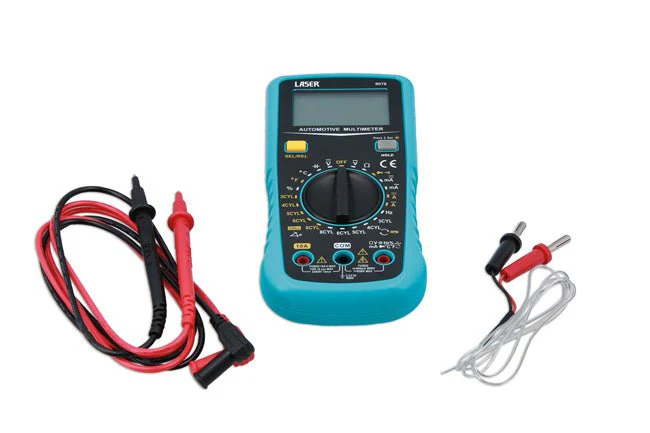

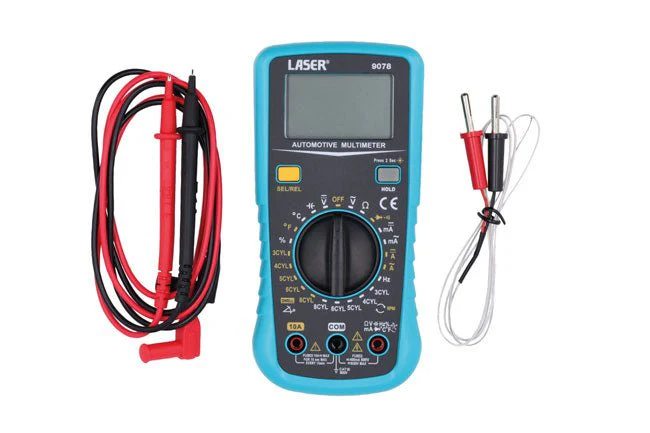

- Supplied with test leads, manual & 9V battery. CE & UKCA compliant. CAT III.
Manufacturer’s Warranty:
$85.30
Laser Tools 9078 Automotive Multimeter CAT III—
$85.30
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
A CAT III multi-meter for measuring both DC and AC voltages, DC current, resistance, temperature, capacitance, frequency, duty angle, dwell angle, tacho RPM, diodes and continuity. It also features an easy to read digital display with backlight together with a data hold function, continuity buzzer and low battery indicator. Suitable for voltages up to 600V, it’s ideal for testing wiring and circuitry in the workshop and at home. This compact meter features an integral flip down stand for ease of use, and is supplied with a pair of test leads.
- Features: Data hold function, diode test, continuity buzzer, low battery indicator, overload protection & backlight.
- Size: 37 x 80 x 166mm. Weight: 192g (approx.).
- DC voltage: Range; 400mV, 4V, 40V, 400V & 600V. AC voltage: Range; 4V, 40V, 400V & 600V. DC Current: 40mA, 400mA, 4A & 10A. AC Current: 40mA, 400mA, 4A & 10A. Resistance: 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ 40MΩ.
- Frequency: 4, 40, 400, 4k, 40k, 400kHz & 4.0mHz. Capacitance: 4nF~4mF. Temperature: -20°C~1000°C. Duty cycle: 0.5~98.5%. Dwell angle: 3, 4, 5, 6 & 8cyl. Tacho: 3, 4, 5, 6 & 8cyl/120-20,000RPM.
- Supplied with test leads, manual & 9V battery. CE & UKCA compliant. CAT III.
Manufacturer’s Warranty:
