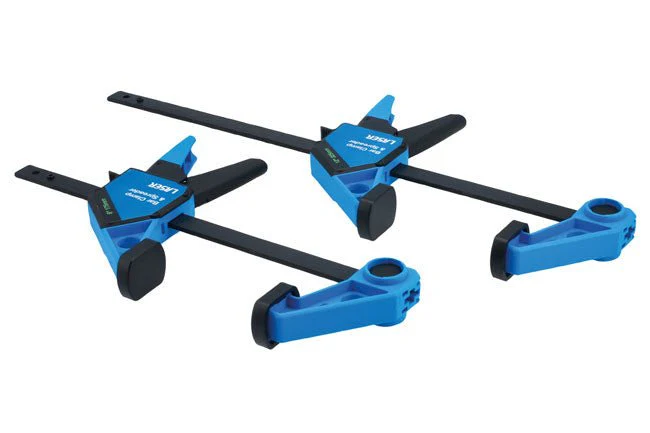

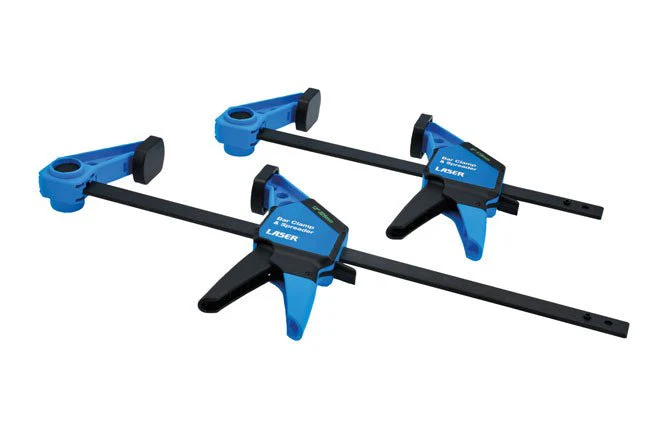

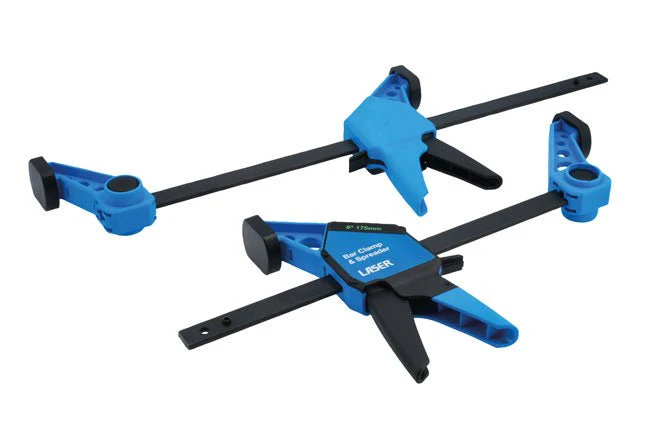

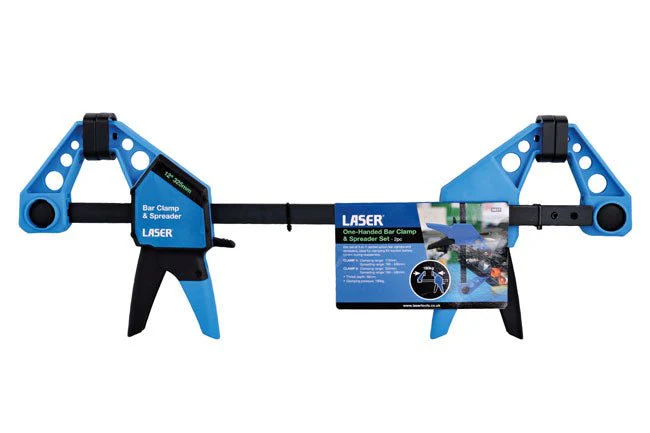

Laser Tools 8817 One-Handed Bar Clamp & Spreader Set - 2pc

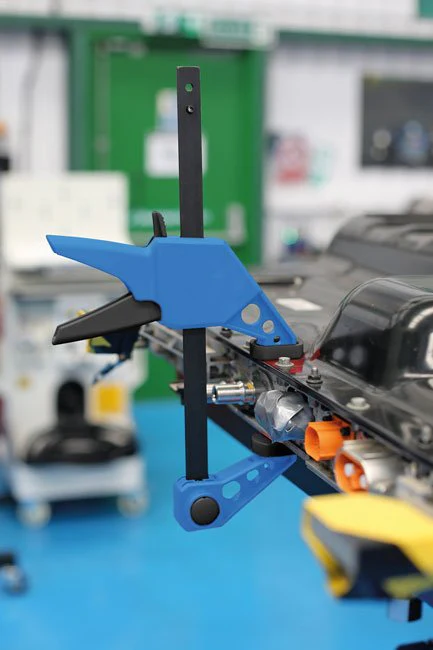

Tesla battery casings have side rails (ski’s) which can be damaged due to side impact or poor jacking procedures. The 8817 clamps are ideal to assist in the correct removal and fitting of these side ski rails (Battery removed). A pair of ratchet bar clamps, with a throat depth of 88mm and a clamping pressure of 180kg the 8817 clamps can be used to clamp the battery casing side rail (ski) during removal and fitting. Also suitable for holding down the battery lid during fitment. They feature an ergonomic grip for comfort, together with a quick release button for ease of use, and allow for single-handed use. A second quick release feature Allows the jaws to be removed and turned around to allow the clamps to be used as spreaders, ideal for holding assembly’s in a particular position during assembly. Also Suitable for clamping panels in place during panel preparation work. An ideal addition to any workshop.
- 2pc set of 2-in-1 ratchet action bar clamps & spreaders, ideal when working on EV traction battery assemblies.
- Clamp 1: Clamping range: 175mm. Spreading range: 190 - 430mm.
- Clamp 2: Clamping range: 325mm. Spreading range: 190 - 582mm.
- Manufactured from nylon/fibreglass composite for strength, Throat depth 88mm. Clamping pressure: 180kg.
- Equivalent to Tesla OEM 1080513-00-A.
Manufacturer’s Warranty:
$85.30
Laser Tools 8817 One-Handed Bar Clamp & Spreader Set - 2pc—
$85.30
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Tesla battery casings have side rails (ski’s) which can be damaged due to side impact or poor jacking procedures. The 8817 clamps are ideal to assist in the correct removal and fitting of these side ski rails (Battery removed). A pair of ratchet bar clamps, with a throat depth of 88mm and a clamping pressure of 180kg the 8817 clamps can be used to clamp the battery casing side rail (ski) during removal and fitting. Also suitable for holding down the battery lid during fitment. They feature an ergonomic grip for comfort, together with a quick release button for ease of use, and allow for single-handed use. A second quick release feature Allows the jaws to be removed and turned around to allow the clamps to be used as spreaders, ideal for holding assembly’s in a particular position during assembly. Also Suitable for clamping panels in place during panel preparation work. An ideal addition to any workshop.
- 2pc set of 2-in-1 ratchet action bar clamps & spreaders, ideal when working on EV traction battery assemblies.
- Clamp 1: Clamping range: 175mm. Spreading range: 190 - 430mm.
- Clamp 2: Clamping range: 325mm. Spreading range: 190 - 582mm.
- Manufactured from nylon/fibreglass composite for strength, Throat depth 88mm. Clamping pressure: 180kg.
- Equivalent to Tesla OEM 1080513-00-A.
Manufacturer’s Warranty:
