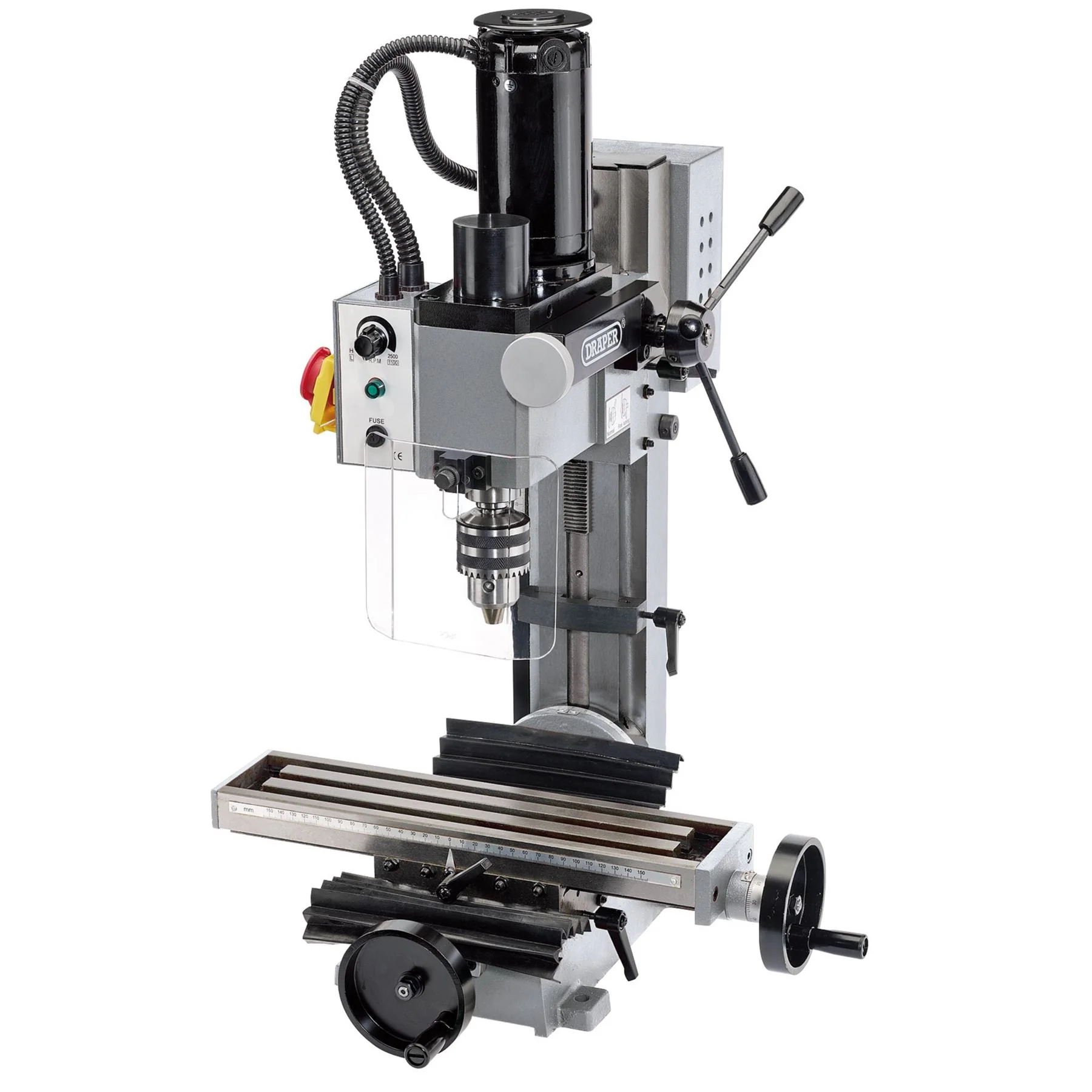

Draper 34023 Variable Speed Mini Milling/Drilling Machine 350W

Product image 1

Draper 34023 Variable Speed Mini Milling/Drilling Machine 350W

Bench mounting mini milling/drilling machine which will handle most materials. Incorporates a working table with T slots to enable clamping or workpieces and metric graduated compound scales. Column tilts from 0-45° from vertical. No-volt switch to prevent accidental switch on and approved three pin cable and approved plug. Carton packed.
  • Drilling Capacity 13mm
  • End Milling Capacity 16mm
  • Face Milling Capacity 30mm
  • Headstock Travel 180mm
  • High Spindle Speed 100-2500r/min
  • Longitudinal Axis 220mm
  • Low Spindle Speed 100-1100r/min
  • Spindle Taper MT3
  • Spindle Tilt Axis ±0-45°
  • Table Size 390 x 92mm
  • Throat Depth 170mm
  • T Slot 12mm
  • Weight 60kg
Manufacturer’s Warranty: 12 months
$1,416.30
Draper 34023 Variable Speed Mini Milling/Drilling Machine 350W
$1,416.30
