Draper 37190 Pneumatic/Hydraulic Motorcycle/ATV Small Garden Machinery Lift 680kg

Product image 1
Product image 2

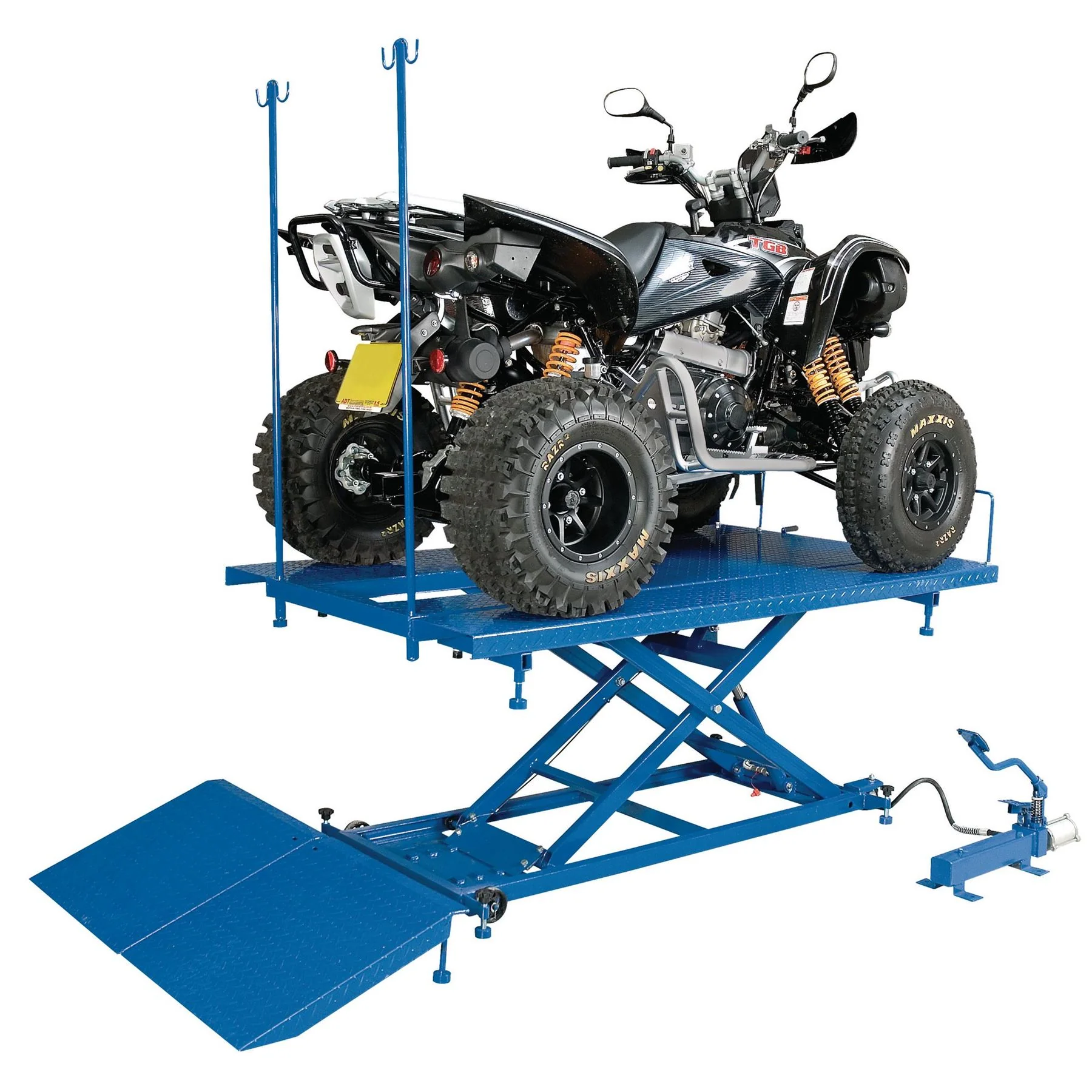

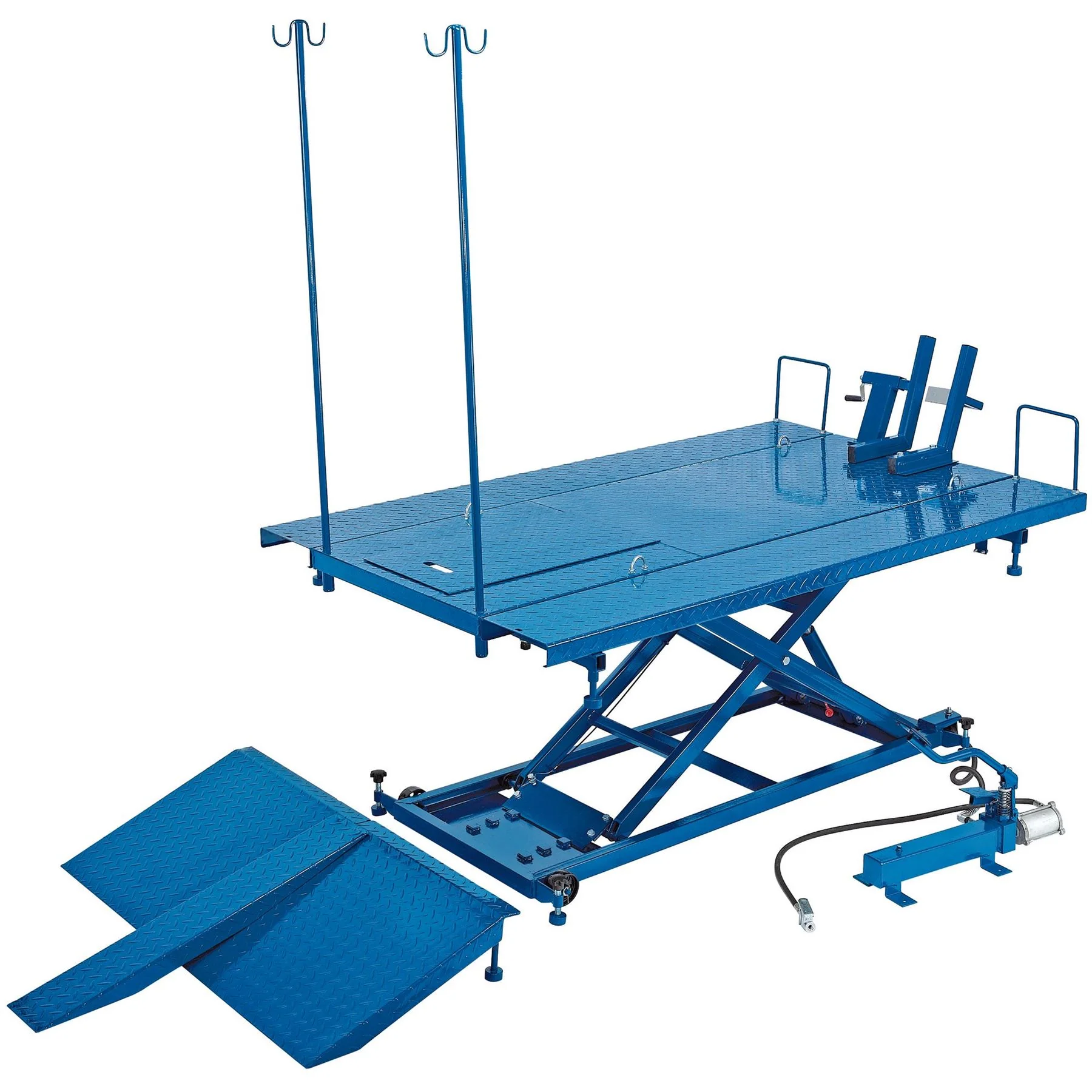

Draper 37190 Pneumatic/Hydraulic Motorcycle/ATV Small Garden Machinery Lift 680kg

Large lift that supports motorcycles plus all terrain vehicles (ATV), Mini tractors and other similar - sized vehicles which can be accommodated by using the Supplied additional side platforms for extra width. All steel construction with heavy duty foot operated dual hydraulic pump and pneumatic pump - up system with controller and ram assembly. Safety table lock device to prevent accidental lowering. Removable front wheel clamp and rear panel to facilitate rear wheel changes (motorcycles only). Base assembly fitted with transport wheels and lock downs to prevent lift from moving whilst in use. Table surface is stippled for safety and grip whilst loading motorcycles/ATV/small garden machinery. Supplied in wooden crate.
  • Capacity 680kg (1500lbs)
  • Closed Height 200mm
  • Lifting Range 200-885mm
  • Max Height 885mm
  • Operating Air Pressure 90psi (6.2bar)
  • Rear Wheel Removal Panel (L x W) 600 x 250mm
  • Motorcycle Loading Ramp (L X W) 850 x 150mm
  • Table As For Atv Use (L X W) 1950 x 1220mm
  • Table As Motorcycle Lift (L X W) 1950 x 680mm
  • Working Height Stops 550; 720; 840mm
  • Weight 260kg
Manufacturer’s Warranty: 12 months
$843.55

Original: $2,410.15

-65%
Draper 37190 Pneumatic/Hydraulic Motorcycle/ATV Small Garden Machinery Lift 680kg

$2,410.15

$843.55

Product Information

Shipping & Returns

Description

Large lift that supports motorcycles plus all terrain vehicles (ATV), Mini tractors and other similar - sized vehicles which can be accommodated by using the Supplied additional side platforms for extra width. All steel construction with heavy duty foot operated dual hydraulic pump and pneumatic pump - up system with controller and ram assembly. Safety table lock device to prevent accidental lowering. Removable front wheel clamp and rear panel to facilitate rear wheel changes (motorcycles only). Base assembly fitted with transport wheels and lock downs to prevent lift from moving whilst in use. Table surface is stippled for safety and grip whilst loading motorcycles/ATV/small garden machinery. Supplied in wooden crate.
  • Capacity 680kg (1500lbs)
  • Closed Height 200mm
  • Lifting Range 200-885mm
  • Max Height 885mm
  • Operating Air Pressure 90psi (6.2bar)
  • Rear Wheel Removal Panel (L x W) 600 x 250mm
  • Motorcycle Loading Ramp (L X W) 850 x 150mm
  • Table As For Atv Use (L X W) 1950 x 1220mm
  • Table As Motorcycle Lift (L X W) 1950 x 680mm
  • Working Height Stops 550; 720; 840mm
  • Weight 260kg
Manufacturer’s Warranty: 12 months
