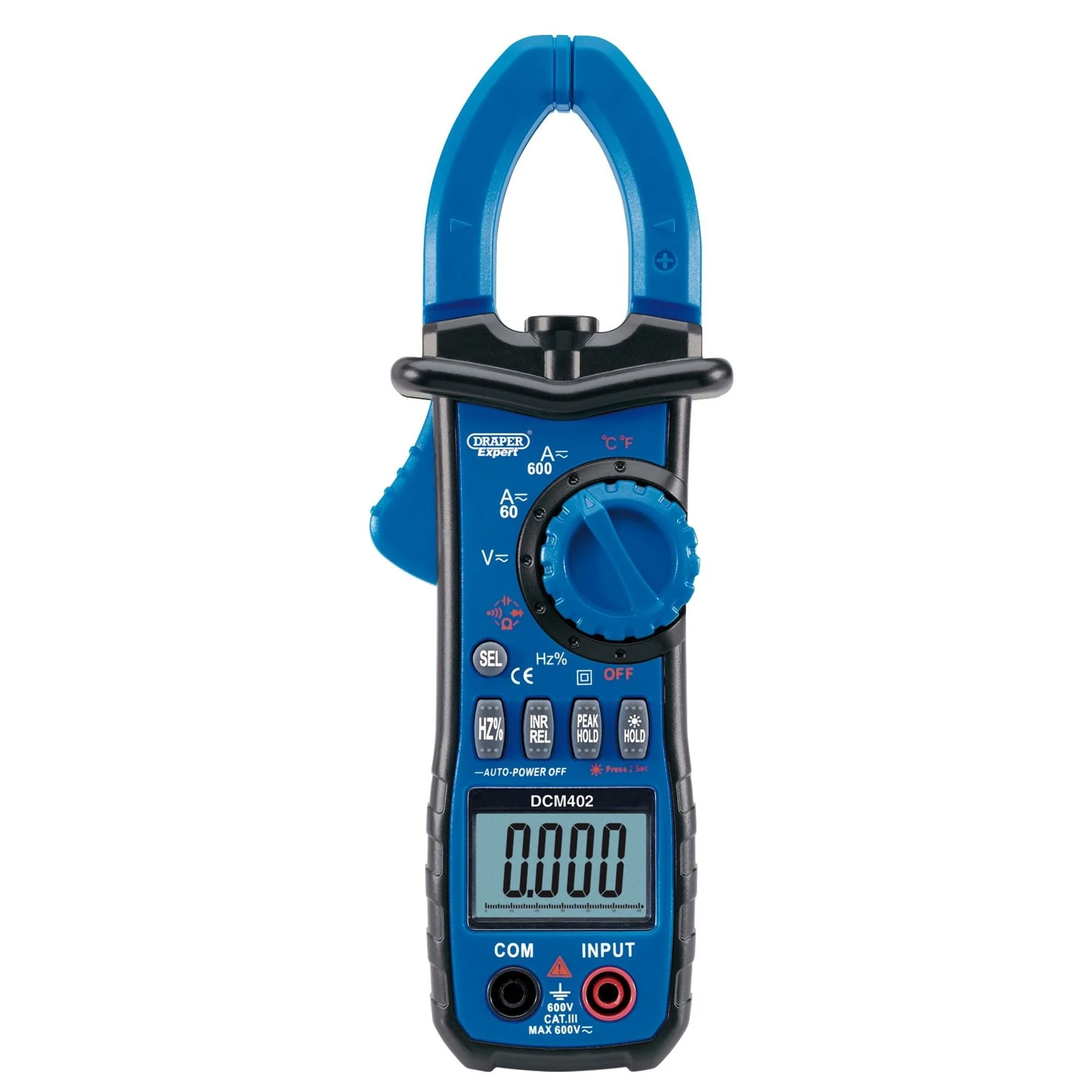

Draper 41967 Auto-Ranging Digital Clamp Meter with Linear Bar Graph Function
Auto and manual ranging clamp meter capable of voltage, current, resistance, diode, continuity, capacitance, frequency, duty cycle and temperature testing. Maximum jaw-opening diameter of 36mm, backlit LCD screen, auto power off, linear bar graph functions and a useful inspection light. Supplied with test leads, temp probe, case and 3 x AAA batteries.
- AC Current 60A/600A
- AC Voltage 6V/60V/600V
- Automatic Power Off Yes
- Battery 3 x AAA (not supplied)
- Capacitance 999nF/99.99nF/999.9nF/9.999µF/99.99µF/999.9µF/9.999mF/99.99mF
- DC Amps 60A/600A
- DC Current 60A/600A
- DC Voltage 600mV/6V/60V/600V
- Diode on/off Test Yes
- Dimensions 228mm x 158mm x 58mm
- Duty Ratio Yes
- Dwell N/A
- Frequency 100Hz/1000Hz/10kHz/100kHz/1MHz/10MHz
- Resistance (Ohms) 6000Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
- Symbol Unit Data Hold N/A
- TACH N/A
- Temperature -50 to 300ºC
- Temperature Range -50°C - 1000°C/-58°F - 1832°F
- Weight 400g (approx.)
Manufacturer’s Warranty: 12 months
$26.54
Original: $75.82
-65%Draper 41967 Auto-Ranging Digital Clamp Meter with Linear Bar Graph Function—
$75.82
$26.54Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Auto and manual ranging clamp meter capable of voltage, current, resistance, diode, continuity, capacitance, frequency, duty cycle and temperature testing. Maximum jaw-opening diameter of 36mm, backlit LCD screen, auto power off, linear bar graph functions and a useful inspection light. Supplied with test leads, temp probe, case and 3 x AAA batteries.
- AC Current 60A/600A
- AC Voltage 6V/60V/600V
- Automatic Power Off Yes
- Battery 3 x AAA (not supplied)
- Capacitance 999nF/99.99nF/999.9nF/9.999µF/99.99µF/999.9µF/9.999mF/99.99mF
- DC Amps 60A/600A
- DC Current 60A/600A
- DC Voltage 600mV/6V/60V/600V
- Diode on/off Test Yes
- Dimensions 228mm x 158mm x 58mm
- Duty Ratio Yes
- Dwell N/A
- Frequency 100Hz/1000Hz/10kHz/100kHz/1MHz/10MHz
- Resistance (Ohms) 6000Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
- Symbol Unit Data Hold N/A
- TACH N/A
- Temperature -50 to 300ºC
- Temperature Range -50°C - 1000°C/-58°F - 1832°F
- Weight 400g (approx.)
Manufacturer’s Warranty: 12 months
