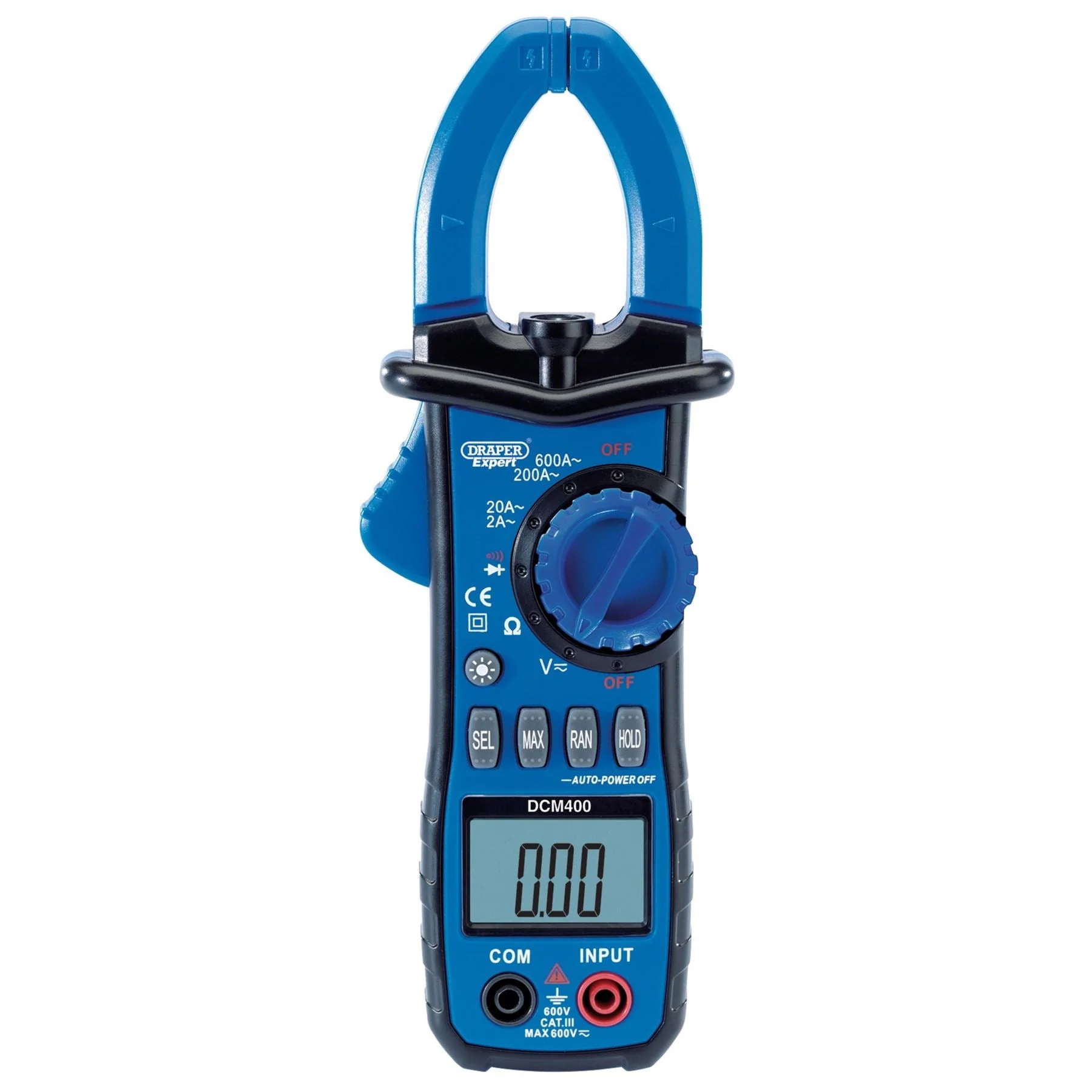

Draper 41864 Manual-Ranging Digital Clamp Meter
Auto and manual ranging clamp meter capable of voltage, current, resistance, diode, continuity, capacitance, frequency, duty cycle and temperature testing. Maximum jaw-opening diameter of 36mm, backlit LCD screen, auto power off, linear bar graph functions and a useful inspection light. Supplied with test leads, temp probe, case and 3 x AAA batteries.
- AC Current 2A/20A/200A/600A
- AC Voltage 200mV/2V/20V/200V/600V
- Automatic Power Off Yes
- Battery 3 x AAA (not supplied)
- Capacitance N/A
- DC Current N/A
- DC Voltage 200mV/2V/20V/200V/600V
- Diode on/off Test Yes
- Dimensions 228mm x 156mm x 62mm
- Duty Ratio Yes
- Dwell N/A
- Frequency N/A
- Resistance (Ohms) 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ
- Symbol Unit Data Hold Yes
- TACH N/A
- Temperature Range N/A
- Weight 480g (approx.)
Manufacturer’s Warranty: 12 months
$43.33
