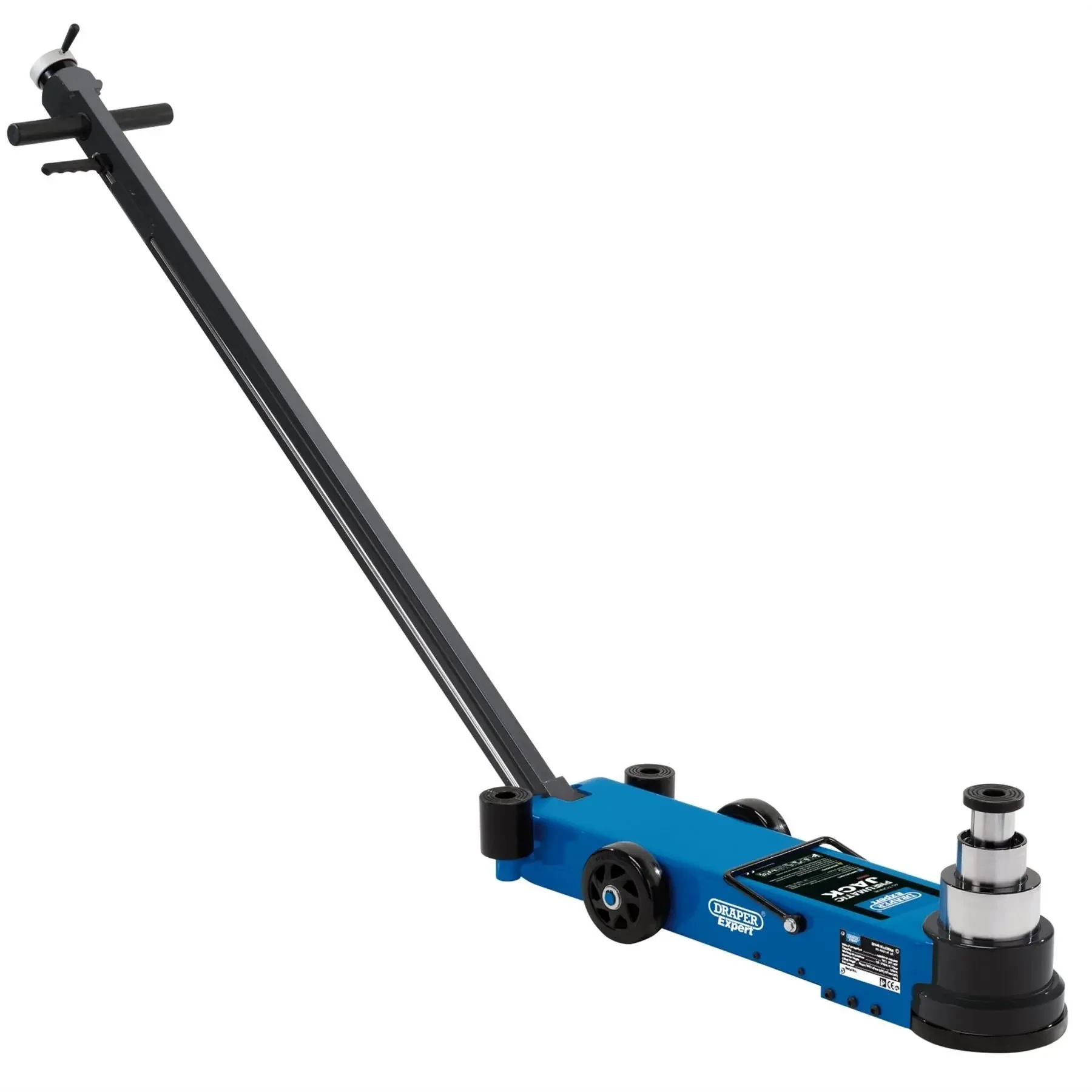

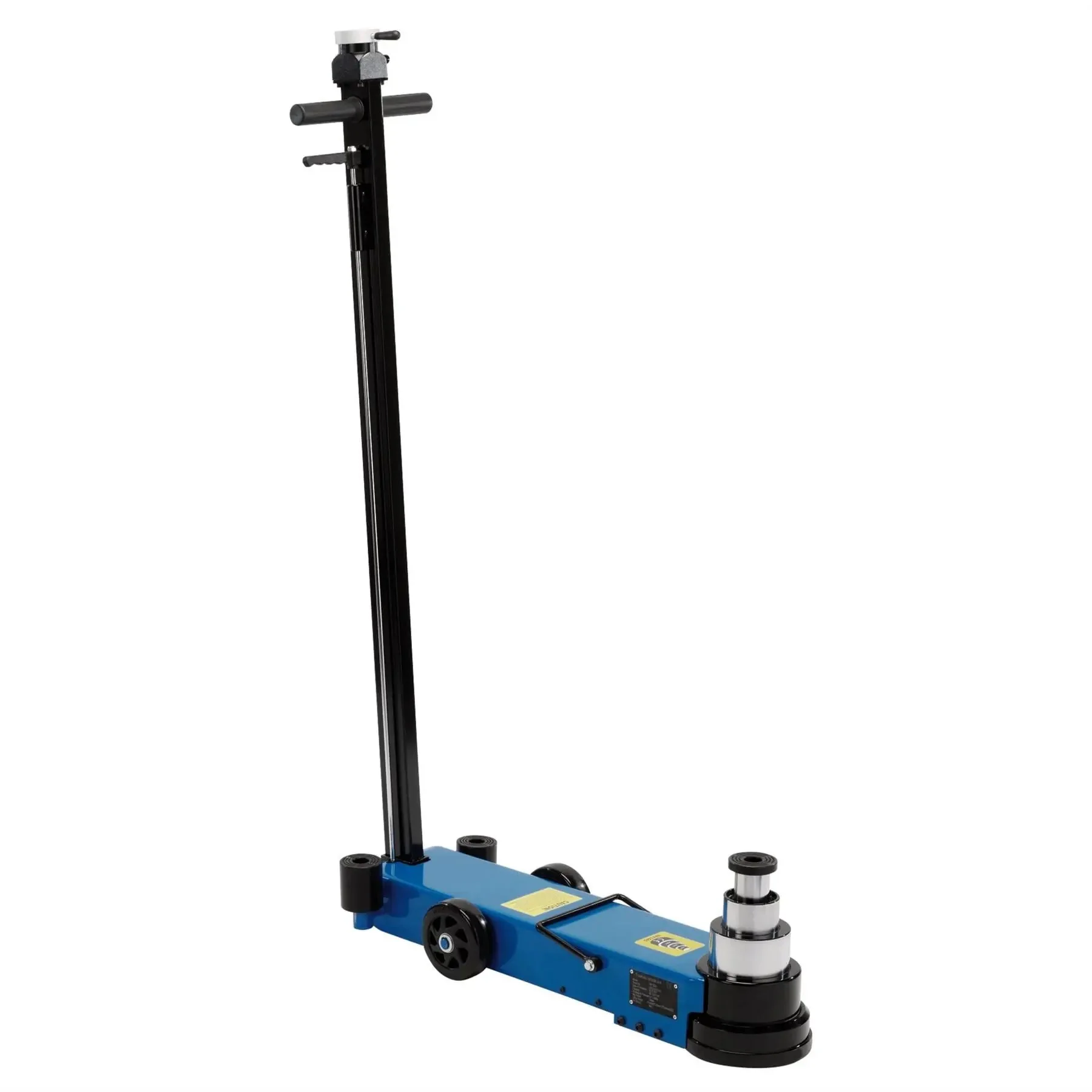

Draper 02080 Pneumatic Long Chassis Low Profile Jack 40 Tonne

Long chassis, extra low profile pneumatic jack. The 125mm entry height has a total reach of 2210mm and is capable of lifting 40 Tonnes. The 3 stage adjustable ergonomic handle is fixed with a 'Slow Down' valve and a 'Self-Return' switch for increased safety and easy use. Fitted with industrial quality seals prolonging the life of the jack, a safety overload valve and twin rubber coated wheels for a quieter and smoother operation, whilst also preventing damage to garage floors and improving manoeuvrability. Supplied with 45mm and 75mm height lift extensions and a 1/4" BSP airline connector.
  • Air Inlet 1/4" BSP
  • Capacity 40 Tonne (40,000kg)20 Tonne (20,000kg)10 Tonne (10,000kg)
  • Chassis Dimensions 830 x 179 x 125mm
  • Handle Length 1380mm
  • Lifting Height Position 1 57mm
  • Max Height Stage 1 302mm (inc extensions)
  • Max Height Stage 2 347mm (inc extensions)
  • Min Height 125mm
  • Nett Weight 44kg
  • Operating Air Pressure 9 – 12BAR (130 – 174psi)
  • Saddle Diameter 70mm
  • Wheel Diameter 125mm
  • Max Height Stage 3 396mm (inc extensions)
  • Wheel Width 47.5mm
Manufacturer’s Warranty: 12 months
