Draper 02079 Pneumatic Jack 40 Tonne

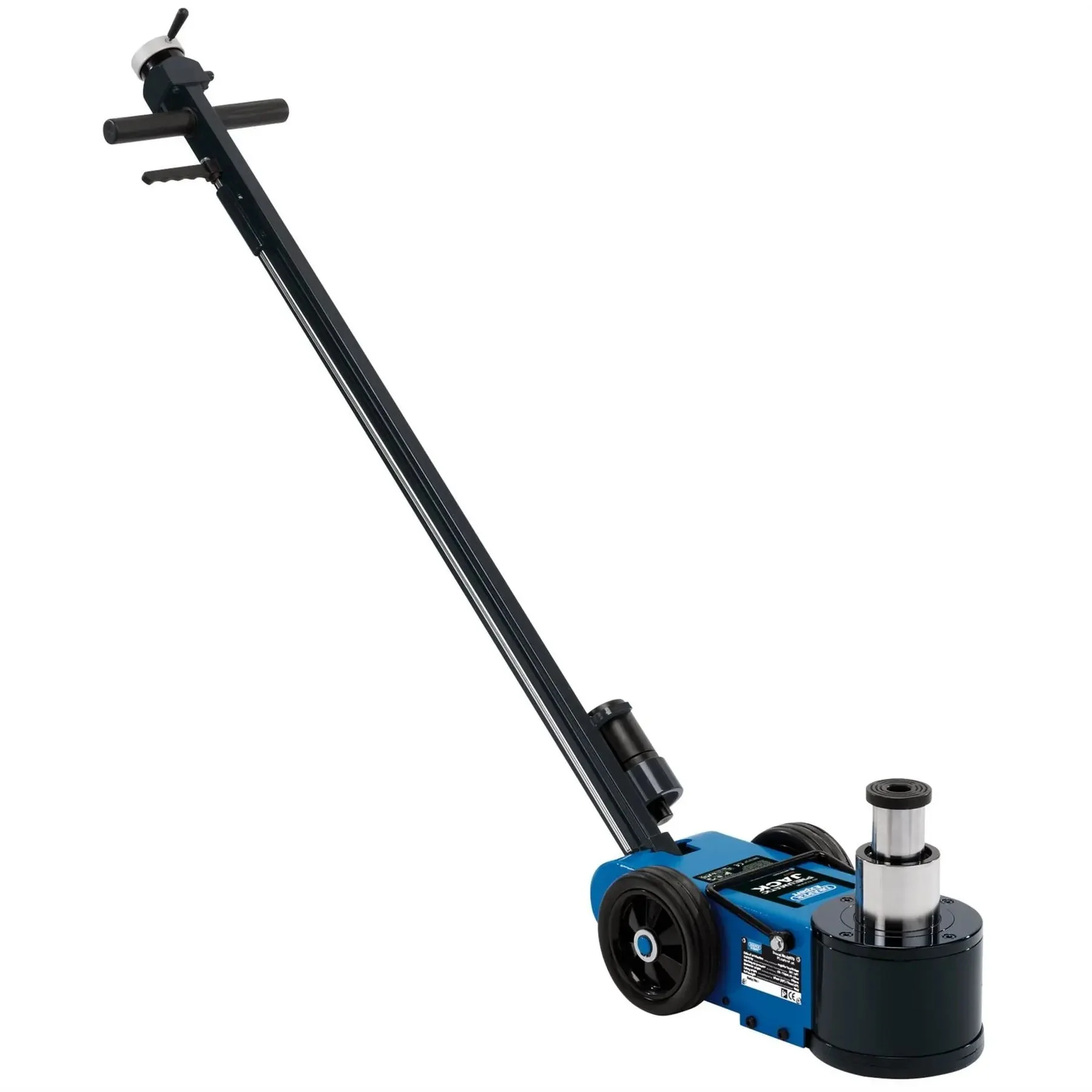

Product image 1

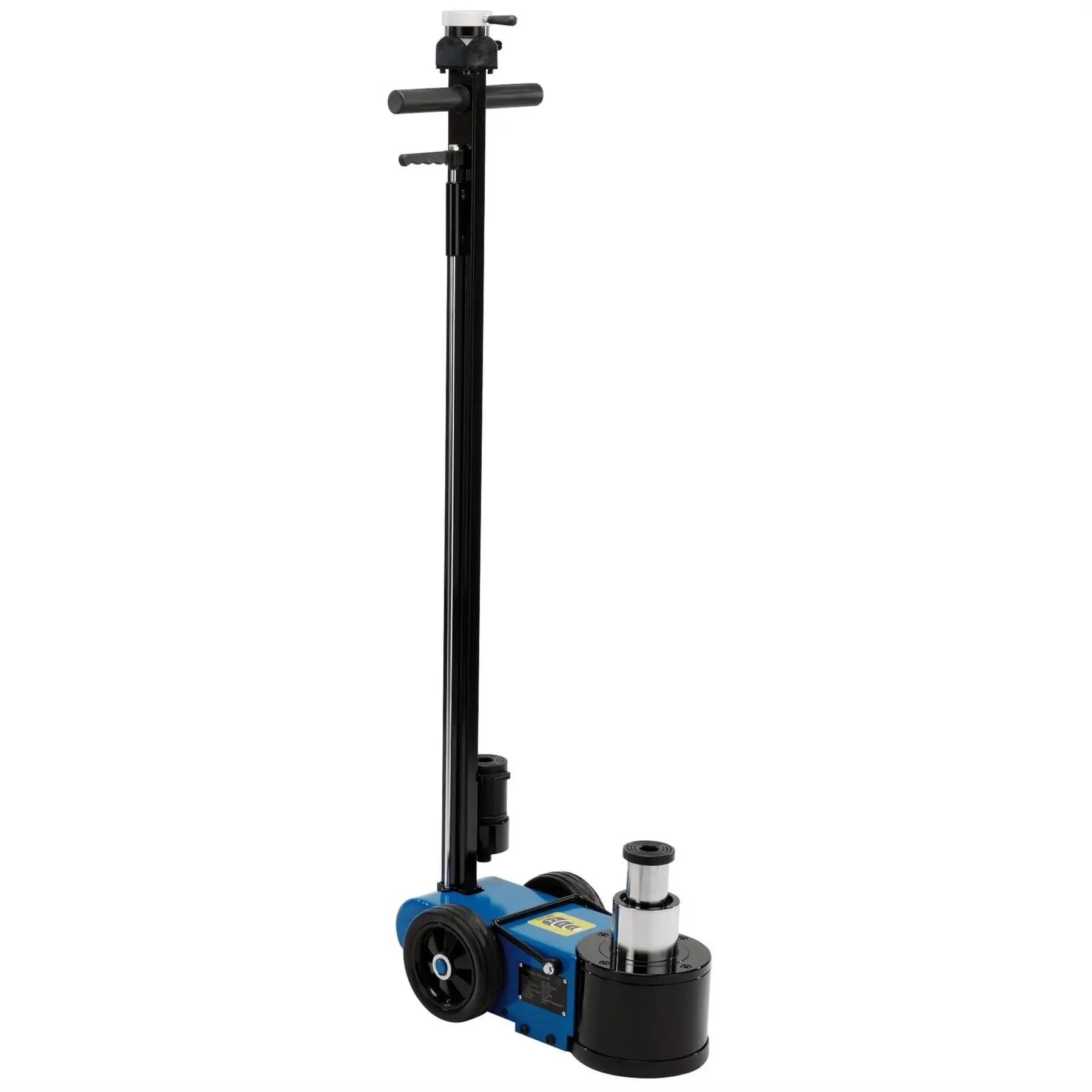

Product image 2

Draper 02079 Pneumatic Jack 40 Tonne

Portable and compact twin stage pneumatic jack, capable of lifting 40 Tonnes. The 3 stage adjustable ergonomic handle is fixed with a "Slow Down" valve and a "Self-Return" switch for increased safety and easy use. Fitted with industrial quality seals prolonging the life of the jack, a safety overload valve and twin rubber coated wheels for a quieter and smoother operation, whilst also preventing damage to garage floors and improving manoeuvrability. Supplied with 45mm and 75mm height lift extensions and a 1/4" BSP airline connector. Manufactured, tested and certified to the current EN1494 standard.
  • Air Inlet 1/4" BSP
  • Capacity 40 Tonne (40,000kg)20 Tonne (20,000kg)
  • Chassis Dimensions 480 x 186 x 150mm
  • Handle Length 1300mm
  • Lifting Height Position 1 73mm
  • Lifting Height Position 2 66mm
  • Max Height Stage 1 343mm (inc extensions)
  • Max Height Stage 2 409mm (inc extensions)
  • Min Height 150mm
  • Nett Weight 40kg
  • Operating Air Pressure 9 – 12BAR (130 – 174psi)
  • Saddle Diameter 70mm
  • Wheel Diameter 165mm)
  • Wheel Width 42.5mm
Manufacturer’s Warranty: 12 months
$558.26

Original: $1,595.03

-65%
Draper 02079 Pneumatic Jack 40 Tonne

$1,595.03

$558.26

Product Information

Shipping & Returns

Description

Portable and compact twin stage pneumatic jack, capable of lifting 40 Tonnes. The 3 stage adjustable ergonomic handle is fixed with a "Slow Down" valve and a "Self-Return" switch for increased safety and easy use. Fitted with industrial quality seals prolonging the life of the jack, a safety overload valve and twin rubber coated wheels for a quieter and smoother operation, whilst also preventing damage to garage floors and improving manoeuvrability. Supplied with 45mm and 75mm height lift extensions and a 1/4" BSP airline connector. Manufactured, tested and certified to the current EN1494 standard.
  • Air Inlet 1/4" BSP
  • Capacity 40 Tonne (40,000kg)20 Tonne (20,000kg)
  • Chassis Dimensions 480 x 186 x 150mm
  • Handle Length 1300mm
  • Lifting Height Position 1 73mm
  • Lifting Height Position 2 66mm
  • Max Height Stage 1 343mm (inc extensions)
  • Max Height Stage 2 409mm (inc extensions)
  • Min Height 150mm
  • Nett Weight 40kg
  • Operating Air Pressure 9 – 12BAR (130 – 174psi)
  • Saddle Diameter 70mm
  • Wheel Diameter 165mm)
  • Wheel Width 42.5mm
Manufacturer’s Warranty: 12 months
