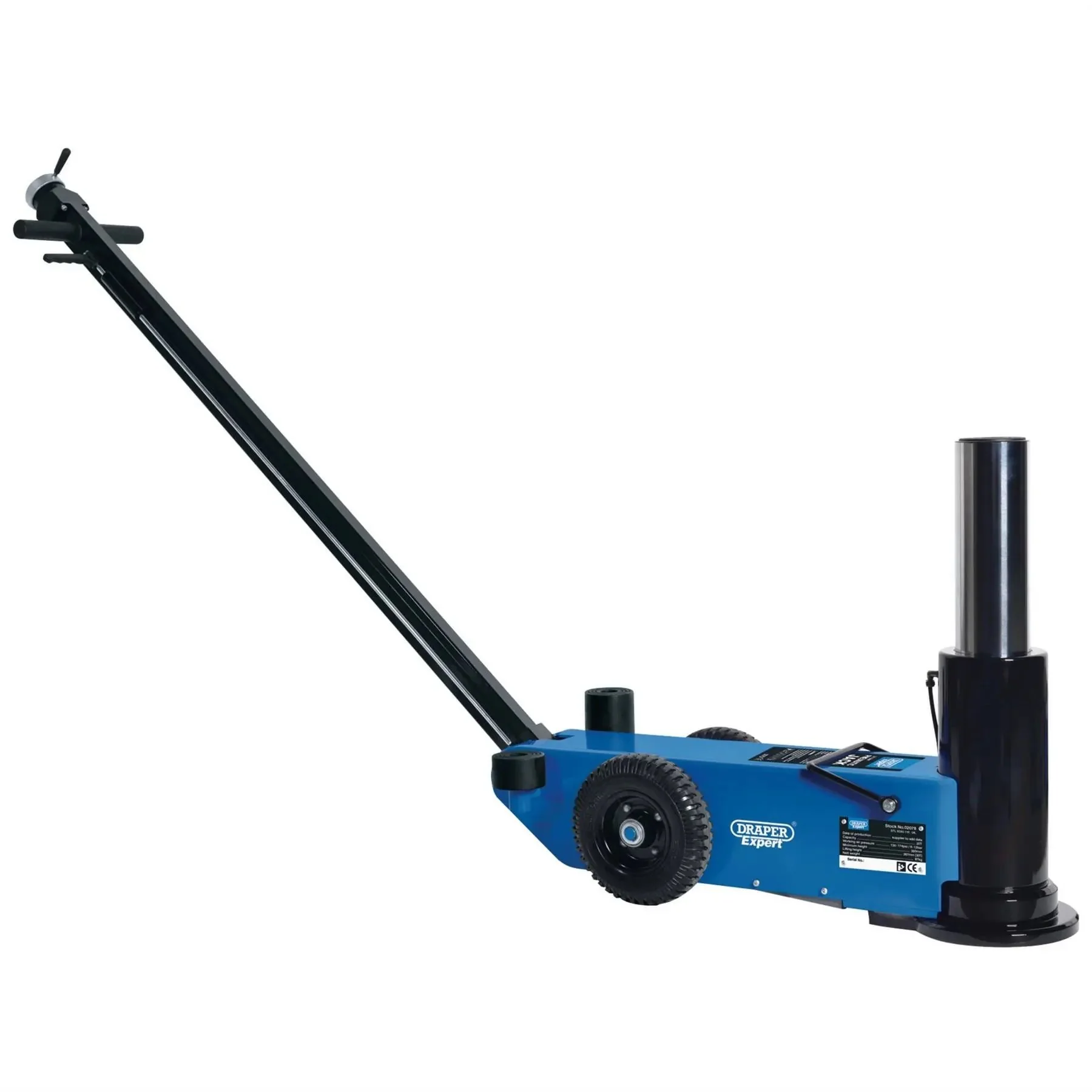

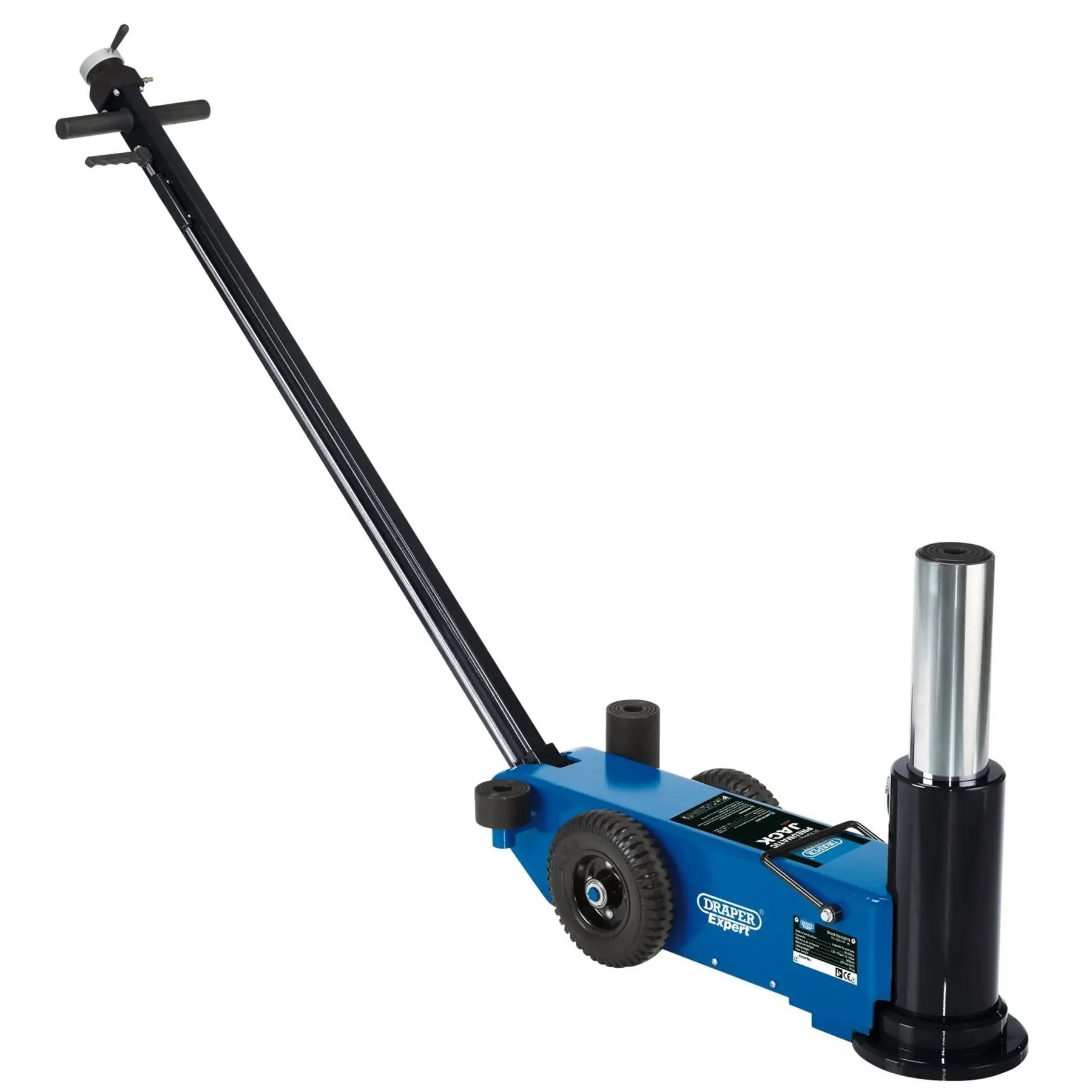

Draper 02078 Pneumatic High Lift Jack 30 Tonne

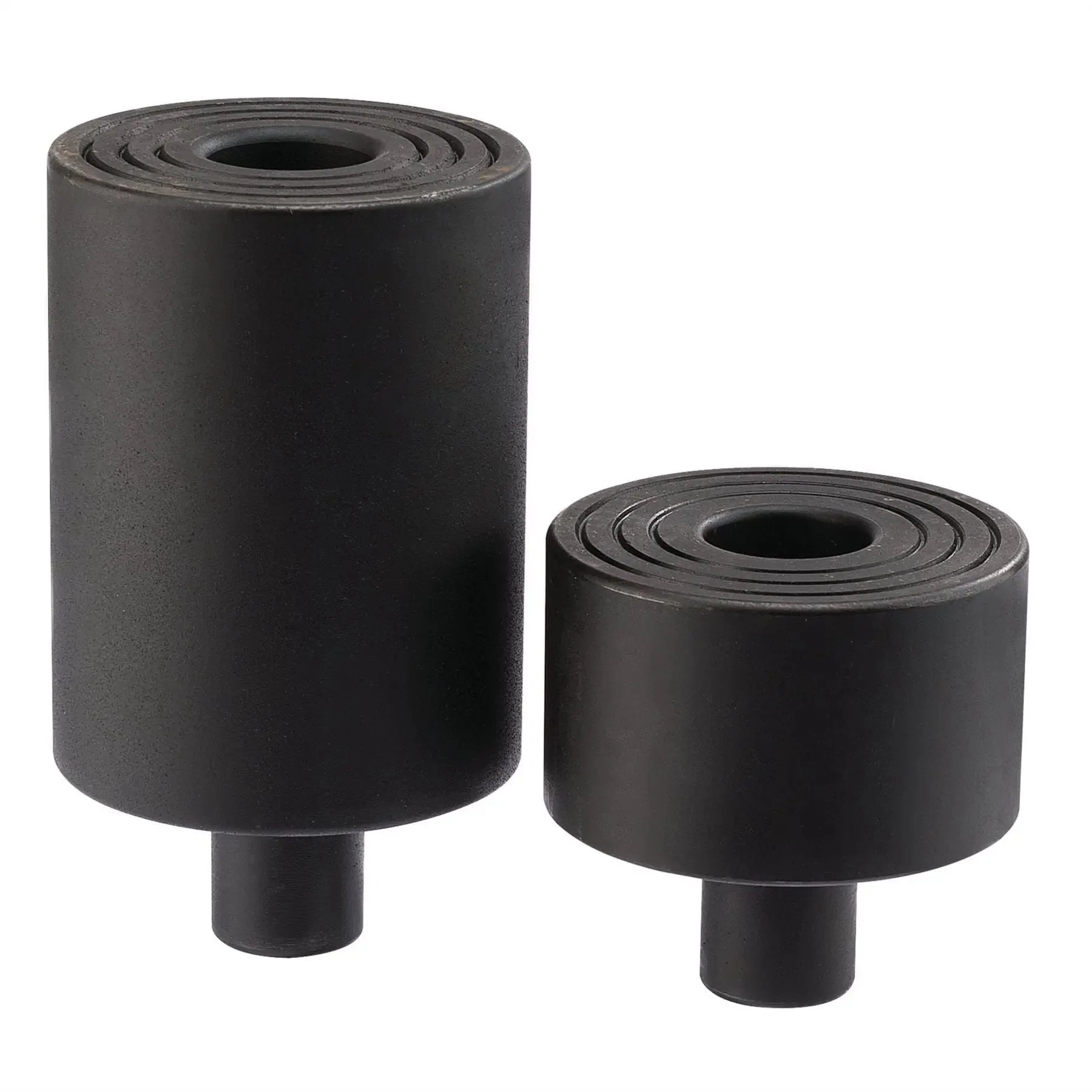

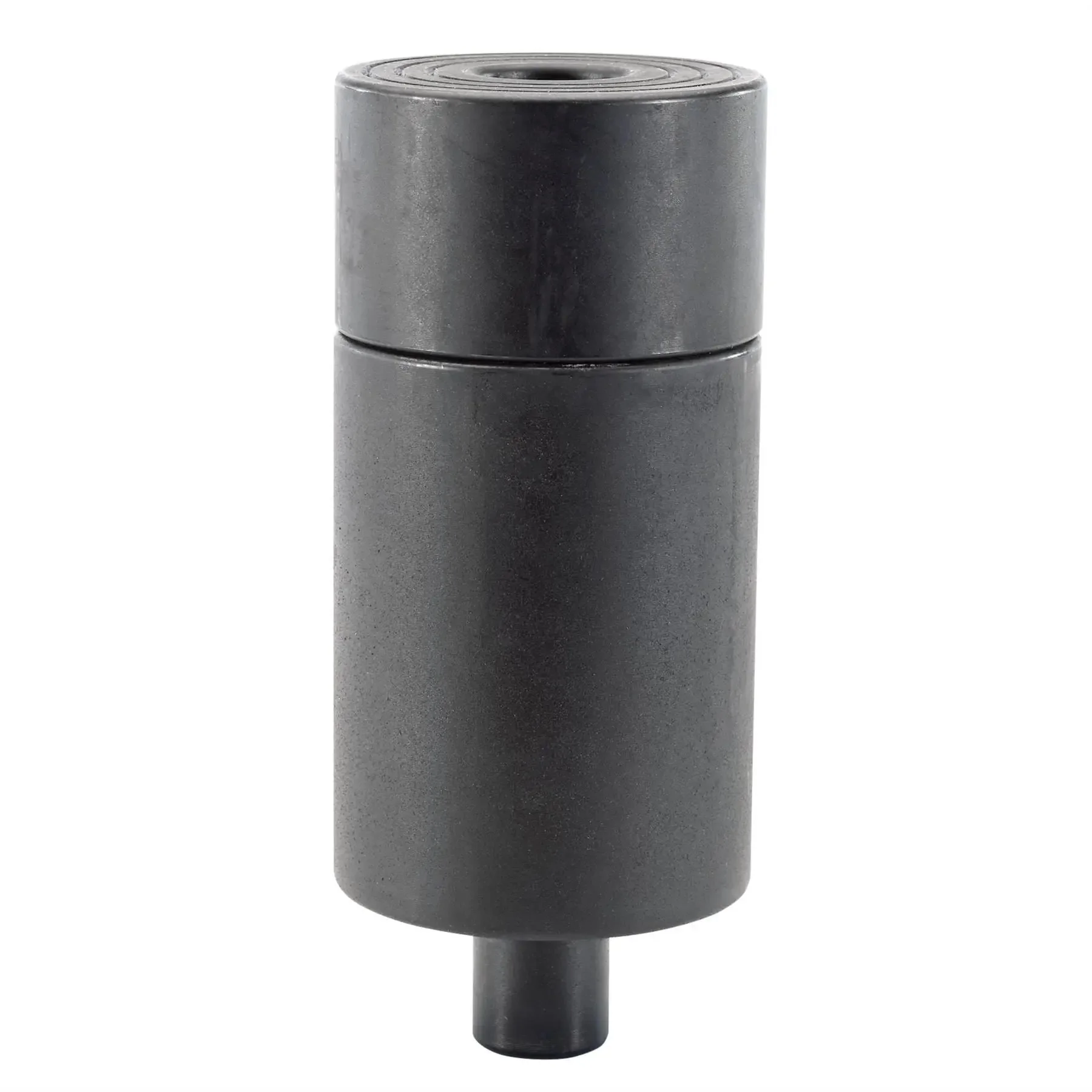

Portable and compact high lift pneumatic jack, capable of lifting 30 Tonnes. The ergonomic handle is fixed with a "Slow Down" valve and a "Self-Return" switch for increased safety and easy use. Fitted with industrial quality seals prolonging the life of the jack, a safety overload valve and rubber coated wheels for a quieter and smoother operation, whilst also preventing damage to garage floors and improving manoeuvrability. Supplied with 45mm and 100mm height lift extensions and a 1/4" BSP airline connector. Manufactured, tested and certified to the current EN1494 standard.
  • Air Inlet 1/4" BSP
  • Capacity 30 Tonne (30,000kg)
  • Chassis Dimensions 840 x 215 x 360mm
  • Handle Length 1380mm
  • Lifting Height 267mm
  • Max Height 772mm (inc extensions)
  • Min Height 360mm
  • Nett Weight 87kg
  • Operating Air Pressure 9 – 12BAR (130 – 174psi)
  • Saddle Diameter 83.6mm
  • Wheel Diameter 200mm
  • Wheel Width 55.5mm
Manufacturer’s Warranty: 12 months
$2,553.68
Draper 02078 Pneumatic High Lift Jack 30 Tonne
$2,553.68

Product Information

Shipping & Returns

Description

Portable and compact high lift pneumatic jack, capable of lifting 30 Tonnes. The ergonomic handle is fixed with a "Slow Down" valve and a "Self-Return" switch for increased safety and easy use. Fitted with industrial quality seals prolonging the life of the jack, a safety overload valve and rubber coated wheels for a quieter and smoother operation, whilst also preventing damage to garage floors and improving manoeuvrability. Supplied with 45mm and 100mm height lift extensions and a 1/4" BSP airline connector. Manufactured, tested and certified to the current EN1494 standard.
  • Air Inlet 1/4" BSP
  • Capacity 30 Tonne (30,000kg)
  • Chassis Dimensions 840 x 215 x 360mm
  • Handle Length 1380mm
  • Lifting Height 267mm
  • Max Height 772mm (inc extensions)
  • Min Height 360mm
  • Nett Weight 87kg
  • Operating Air Pressure 9 – 12BAR (130 – 174psi)
  • Saddle Diameter 83.6mm
  • Wheel Diameter 200mm
  • Wheel Width 55.5mm
Manufacturer’s Warranty: 12 months
